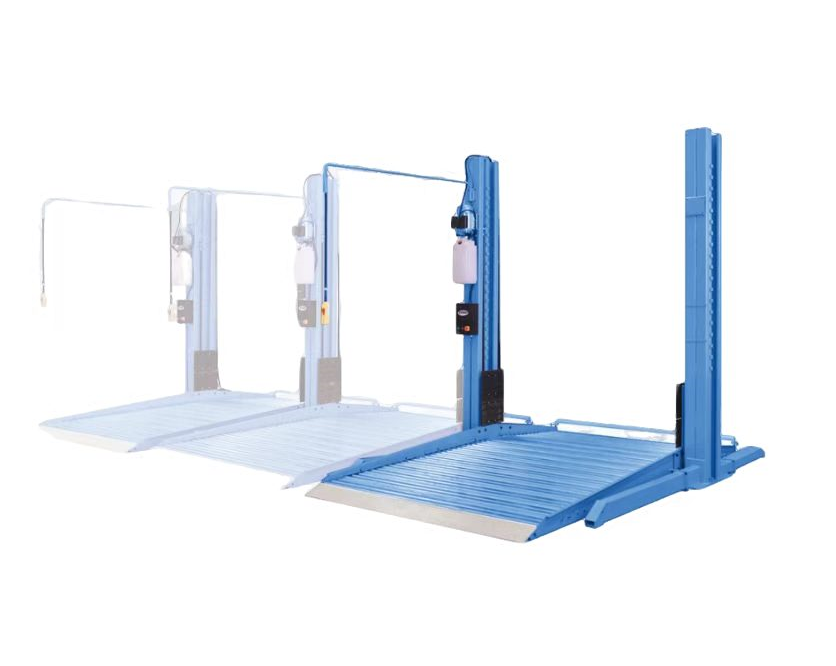

3.5 Ton (8,000 LBS) 2-Post Parking Lift

The QYK-ET35 is a thoughtfully engineered 2-post parking lift designed to address one of the most common challenges in urban parking: limited space. Unlike traditional parking lifts that use separate posts for each vehicle, the QYK-ET35 features a shared middle post design that significantly reduces the structural footprint while delivering the same parking capacity. This innovative approach allows two vehicles to be parked in the space typically required for one, effectively doubling parking capacity within the existing floor area. The lift operates by raising one vehicle to the upper position while the lower position remains accessible for a second vehicle, creating a two-tier parking system that maximizes vertical space utilization.

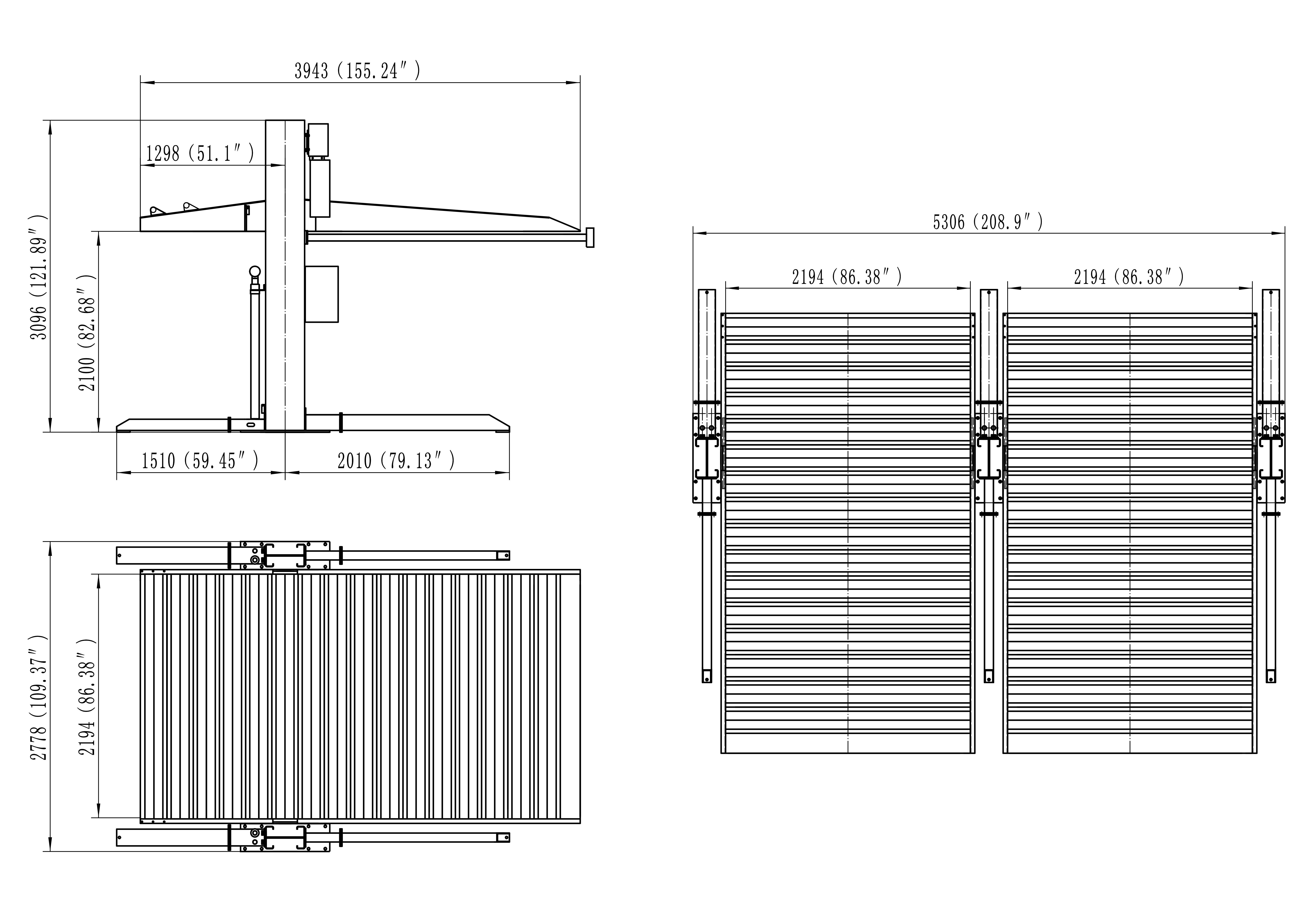

The lift features a 3943mm platform length with a substantial 3096mm overall height, accommodating a wide range of passenger vehicles including sedans, SUVs, and light vehicles. The 3500kg lifting capacity ensures the lift can handle most standard vehicles with confidence. The hydraulic lifting system, powered by an aluminum motor supplied as standard equipment, delivers smooth and reliable lifting performance with a lifting time of 45 to 50 seconds. The aluminum motor offers superior heat dissipation and corrosion resistance compared to traditional steel motors, contributing to longer service life and reduced maintenance requirements.

Safety is a central focus of the QYK-ET35 design. The lift is equipped with safety valves that protect against hose failure, a critical feature that ensures the lift will not drop suddenly in the event of a hydraulic line issue. These valves automatically seal the hydraulic circuit if a pressure drop is detected, holding the platform securely in position. The 24V low-voltage safety control system operates the lift at a safe electrical level, reducing the risk of electrical shock and making the lift safer for operators in various environments. The control system is straightforward and intuitive, allowing easy operation for parking attendants, property staff, or individual users.

The galvanized platform surface provides excellent corrosion resistance, making the lift suitable for both indoor and covered outdoor installations where moisture exposure may occur. The durable zinc coating protects the platform against rust and deterioration, maintaining the lift's structural integrity and appearance over years of service. The overall weight of 1200kg reflects the robust construction required for reliable two-tier parking operation.

Product highlights

Shared Middle Post Design

The shared middle post design is the defining innovation of the QYK-ET35. By allowing two vehicles to share a central supporting column, this design reduces the structural footprint compared to standard parking lifts. This means more parking spaces can be installed within the same floor area, maximizing revenue potential for commercial operators and providing more parking options for residential complexes. The shared post also reduces material costs and installation complexity.

Parking Space Doubler Function

The QYK-ET35 effectively doubles parking capacity within a single parking space. One vehicle parks on the lower level while the lift raises a second vehicle to the upper position. This creates a two-tier parking system that makes efficient use of vertical space, a valuable feature in underground garages and urban parking facilities where horizontal space is limited. For homeowners, this means two cars can be parked in a single garage space.

Safety Valves Against Hose Failure

The safety valves installed on the QYK-ET35 provide essential protection against hydraulic hose failure. If a hose rupture or pressure drop occurs, the valves seal the hydraulic circuit instantly, holding the platform securely in position. This mechanical backup ensures the raised vehicle stays safely elevated, protecting both vehicles and people working nearby. This safety feature operates independently of the electrical system, providing reliable protection in all situations.

24V Low-Voltage Safety Control

The 24V low-voltage safety control system significantly reduces electrical hazards during lift operation. Operating at a safe voltage level, the control system minimizes the risk of electrical shock, making the lift safer for operators in both professional and residential settings. The low-voltage design also simplifies installation and compatibility with various facility electrical systems. The controls are straightforward, allowing staff or residents to operate the lift easily.

Aluminum Motor as Standard

The QYK-ET35 comes equipped with an aluminum motor as standard equipment, offering superior heat dissipation compared to traditional steel motors. Better cooling means more consistent performance and longer motor life, particularly during frequent use in busy parking facilities. The aluminum construction also reduces overall lift weight and resists corrosion, contributing to the lift's long-term durability. This premium feature is typically found on higher-cost models, but CAV includes it as standard on the QYK-ET35.

Galvanized Platform

The galvanized platform surface provides excellent corrosion resistance, protecting the lift against rust and deterioration in environments where moisture is present. The zinc coating extends the platform's service life, maintains structural integrity, and keeps the lift looking professional over years of use. This durable finish is particularly valuable in underground garages where condensation may occur.
