3.5 Ton X-Type In-Foor Single-Post Lift

In the car wash and quick-service industry, water, chemicals, and humidity are constant challenges that can quickly degrade conventional electrical equipment. The CAV 101X In-Floor Single-Post Lift has been engineered specifically to thrive in these harsh conditions, offering a robust 3,500kg lifting capacity that easily accommodates SUVs, vans, and passenger cars.

The most distinctive feature of the CAV 101X is its air-driven operation. Requiring only a standard workshop compressed air supply of 5 to 10 bar, this single-post lift eliminates the need for electrical power at the point of use. This design choice offers significant advantages: it removes the risk of short circuits in wet environments, reduces overall energy consumption for the facility, and simplifies installation in locations where electrical access is limited. For business owners, this translates to lower utility bills and reduced electrical maintenance concerns.

Delving into the engineering expertise behind the CAV 101X, the X-Type in-floor configuration provides exceptional stability and a low-profile design. The lift is installed flush with the workshop floor, creating a seamless surface when the unit is lowered. This is a critical advantage in a busy car wash, where staff move around vehicles frequently, and drainage needs to remain unobstructed. The upper support frame features a 360° rotation capability, allowing operators to position the support pads precisely under the vehicle's designated lifting points, irrespective of the vehicle's entry angle.

CAV has also incorporated a hydraulic buffering system into the lifting mechanism. This ensures that the platform rises and descends smoothly, effectively eliminating sudden jolts or shocks that could unsettle a vehicle or cause customer concern. The lift's construction features extensive anti-corrosion treatment. The body shell and hydraulic cylinder are finished with chrome-plated and anti-rust coatings, providing robust protection against the constant exposure to water, soaps, and de-icing salts. The CAV 101X achieves a maximum lifting height exceeding 1800mm, providing generous clearance for comprehensive undercarriage cleaning and quick maintenance tasks such as oil changes or tire inspections, all while maintaining a low maintenance profile that busy workshops appreciate.

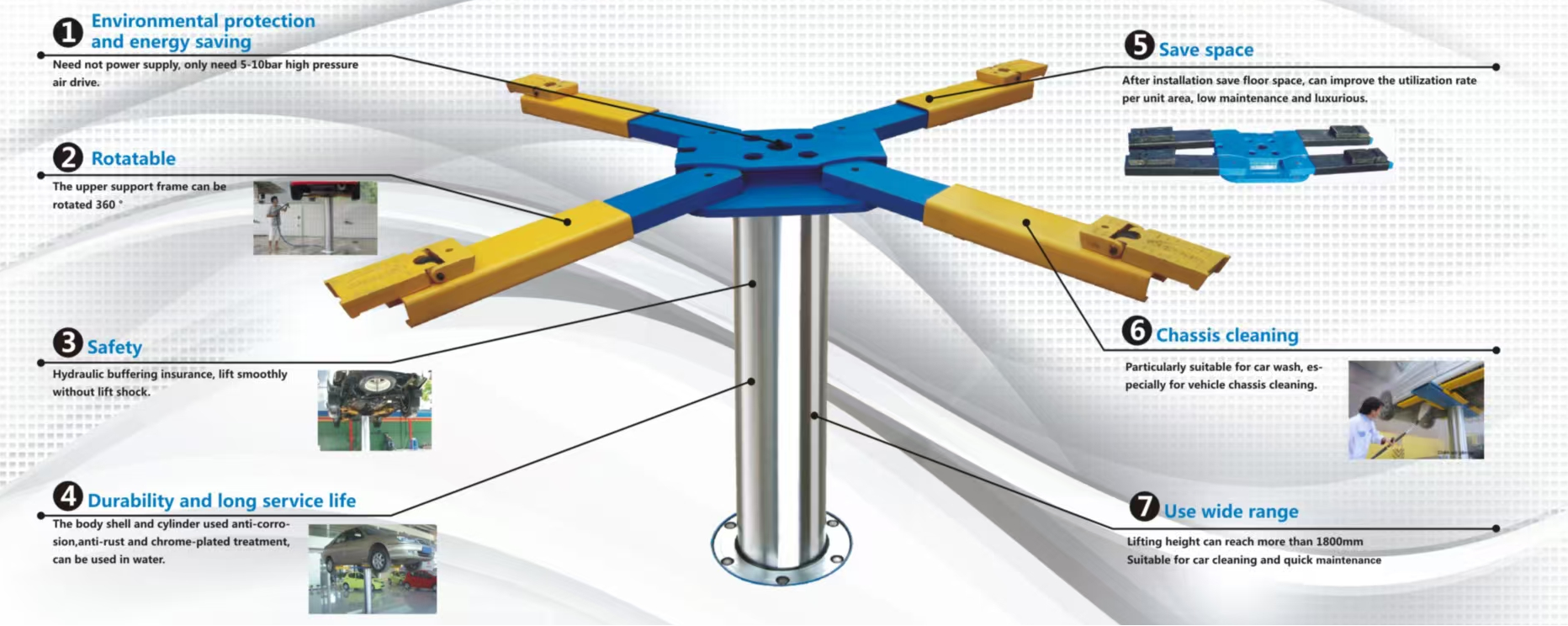

Product highlights

• 3,500kg Robust Lifting Capacity: The CAV 101X is not limited to small cars; its 3.5-ton capacity provides the muscle to handle a wide range of vehicles, including large SUVs, crossovers, and light commercial vans. This versatility makes it an excellent investment for car wash operators who see a diverse mix of vehicles passing through their bays daily, ensuring that no customer needs to be turned away due to weight restrictions.



• Eco-Friendly Air-Driven Operation: In a world focused on sustainability, the CAV 101X stands out by requiring no electrical power for its lifting cycle. It runs purely on compressed air within the 5-10 bar range. This feature not only reduces the facility's carbon footprint and electricity costs but also enhances safety in wet environments where electrical sparks or short circuits are a genuine concern. CAV has designed this lift for the environmentally conscious business owner who values low operational costs.



• 360° Rotating Upper Support Frame: Every vehicle chassis is different, and finding the right lifting point can sometimes be a challenge. The CAV 101X solves this with an upper support frame that rotates a full 360 degrees. This flexibility allows technicians to swing the arms into position from any angle, ensuring a secure fit under the vehicle's manufacturer-recommended jacking points. This reduces the risk of damage to the vehicle underbody and speeds up the positioning process.



• Hydraulic Buffering for Smooth Lifting: The lifting experience with the CAV 101X is noticeably refined, thanks to the integrated hydraulic buffering system. This technology ensures that the platform rises and descends with a smooth, controlled motion, avoiding the sudden bumps or lurches often associated with entry-level lifting equipment. This is particularly important in a customer-facing environment like a car wash, where a smooth, professional operation reinforces the quality image of the business.



• Superior Corrosion and Rust Resistance: Water, soap, and road salt are the natural enemies of workshop equipment. CAV has addressed this by applying specialized anti-corrosion and chrome-plated finishes to the body shell and hydraulic cylinder. This rigorous surface treatment means the CAV 101X withstands daily high-pressure washing and chemical exposure without degrading, ensuring a long service life and reliable performance even after years of continuous use.



• In-Floor Space-Saving Design & Low Maintenance: The X-Type in-floor design is a masterpiece of space optimization. When the CAV 101X is not in use, it sits entirely flush with the floor, creating no obstacles for moving vehicles or foot traffic. This dramatically improves the usable space in the workshop, allowing staff to move freely and safely. Furthermore, the robust air-powered mechanism has fewer complex electrical components, translating to lower maintenance requirements and less downtime, keeping your car wash operation running at peak efficiency.
