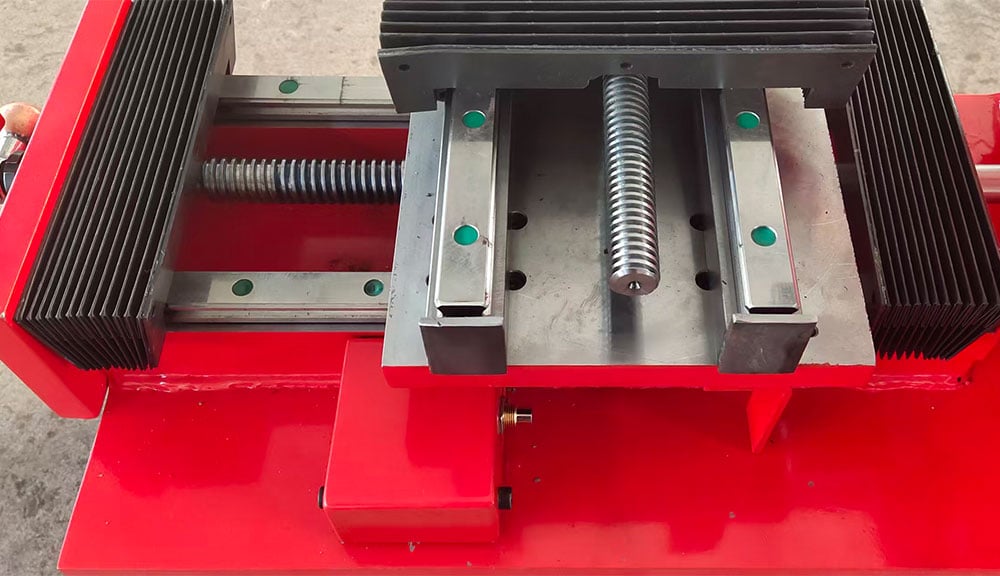

Cavalry C9335A Bench Type Car Brake Lathe Machine

The Cavalry C9335A Bench Type Car Brake Lathe Machine represents Cavalry's commitment to practical, space-efficient brake lathe design that balances performance with workshop practicality. At the core of this machine sits a 1.1kW AC motor—a power rating chosen specifically to handle the demands of regular brake service work without the footprint and cost associated with larger floor-standing units. This motor delivers consistent torque across the operating range, ensuring smooth cutting action whether working on rotors, drums, or flywheels.

Two spindle speeds—75 and 130 RPM—give operators the flexibility to select appropriate cutting parameters for different workpiece types. The slower speed works effectively for rough cutting operations where material removal takes priority, while the higher speed suits finish passes where surface quality matters most. This two-speed configuration covers the majority of automotive and light truck brake components encountered in daily service work, from small passenger car rotors to larger light truck components.

The feed system delivers a consistent rate of 0.62" (16mm/min) for both rotor and drum work. This single feed rate simplifies operation while providing adequate material removal for most applications. The feed mechanism drives the cutting tool across the workpiece surface at a controlled pace, ensuring consistent chip formation and surface finish across the entire cutting pass.

Specially-designed taper cones for both discs and drums play a key role in the C9335A's precision capability. These cones establish accurate centering and secure mounting, which directly affects machining accuracy. When workpieces are properly mounted with the taper cone system, the cutting tool follows a true path, resulting in consistent surface finish and correct dimensional specifications. The machine achieves precision of ≤0.02mm, reflecting the effectiveness of this mounting approach.

Cavalry selected Delixi brand electrical components for the C9335A, ensuring reliable electrical performance and reducing the risk of electrical failures. The inclusion of a limit switch provides automatic stop protection—when the slide carriage reaches the limit during auto-running, the machine stops automatically, preventing over-travel damage. This feature adds operational safety and protects both the machine and workpieces.

The built-in lighting system addresses a fundamental workshop need: visibility. Proper illumination of the cutting area helps operators monitor tool condition, surface quality, and overall machining progress throughout each job. The bench-type configuration with dimensions of 930x630x850mm and gross weight of 260kg makes the C9335A suitable for workshops where floor space is limited.

Product highlights

1.1kW AC Motor for Industrial Applications
The Cavalry C9335A is powered by a 1.1kW AC motor specifically selected to meet the demanding requirements of regular brake service work. This motor provides consistent power delivery across both speed ranges, ensuring cutting tools maintain steady contact with workpiece surfaces. The motor's design focuses on durability and sustained performance, making it suitable for workshops where the brake lathe sees regular daily use. The power rating provides adequate torque for both rough cutting and finishing operations across the range of automotive brake components.

Two Spindle Speeds for Versatile Machining
Operators can choose between 75 RPM and 130 RPM spindle speeds, matching cutting parameters to specific workpiece requirements. The lower speed setting works effectively for larger diameter workpieces or situations requiring more aggressive material removal, while the higher speed setting suits finish passes and smaller diameter components. This two-speed configuration covers the majority of automotive and light truck brake service applications, providing appropriate cutting conditions for different component sizes and material conditions.

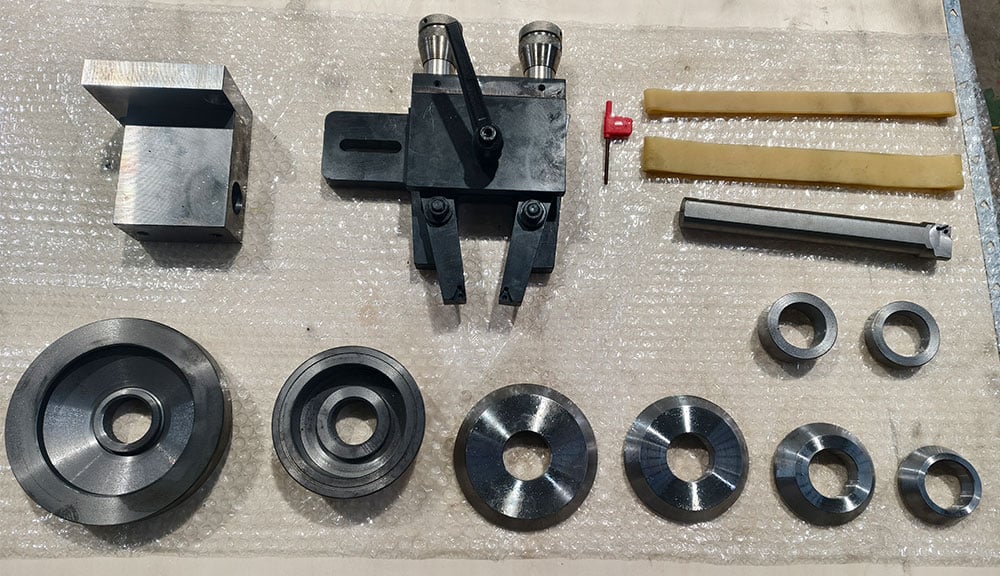

Specially-Designed Taper Cone Mounting System
The C9335A features taper cones specifically engineered for both disc and drum mounting applications. These cones establish accurate centering and secure workpiece positioning, directly contributing to machining accuracy. Proper mounting through the taper cone system ensures the cutting tool follows a true path across the workpiece surface, delivering consistent results. The machine achieves precision of ≤0.02mm, reflecting the effectiveness of this mounting approach in maintaining dimensional accuracy.

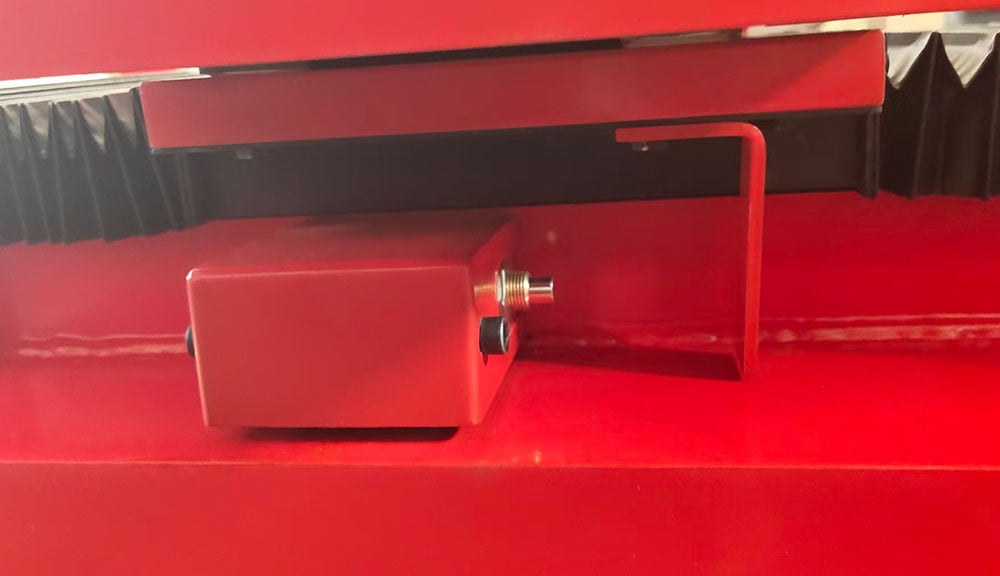

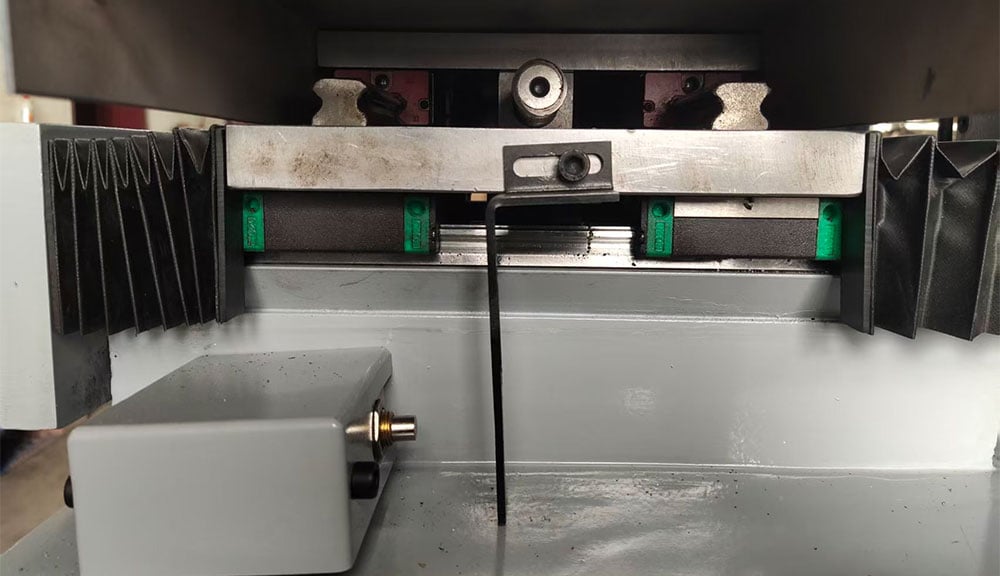

Limit Switch with Automatic Stop Protection
The built-in limit switch provides automatic stop functionality during auto-running operations. When the slide carriage reaches the preset limit position, the machine stops automatically. This feature protects both the machine and the workpiece from over-travel damage, adding operational safety. For workshop managers, this feature reduces the risk of damage from operator error or inattention during automated cutting cycles.

Delixi Electrical Components for Reliability
Cavalry equipped the C9335A with electrical components from Delixi, a recognized brand in industrial electrical equipment. This choice supports long-term reliability and reduces the risk of electrical failures that can cause service interruptions. The electrical system supports multiple voltage configurations—110V, 220V, and 380V—accommodating workshops with different electrical service setups across various regions.

Integrated Lighting System
The built-in lighting keeps the work area well-illuminated, improving visibility during setup and machining operations. Good lighting helps operators monitor cutting conditions, inspect surface quality, and identify any issues early in the machining process. The lighting system is positioned to illuminate the cutting zone directly, reducing shadows that can obscure the cutting interface.

Bench-Type Space-Saving Design
With dimensions of 930x630x850mm and gross weight of 260kg, the C9335A fits comfortably on workshop benches where floor space is at a premium. The compact footprint makes it suitable for smaller service bays while still delivering the capacity needed for regular brake service work. The weight provides adequate stability for vibration damping during cutting operations without requiring permanent floor anchoring.

Versatile Workpiece Capacity
With rotor diameter capacity reaching 17.7" (450mm) and maximum thickness of 1.875" (48mm), drum diameter up to 13.78" (350mm) with 3.94" (100mm) depth, the C9335A handles a broad range of passenger vehicles and light trucks. The capacity covers most automotive applications encountered in regular service work.
