2.7 Ton Capacity Portable Single-Post Lift , Automatic lock release

For workshop owners and service managers, every square metre of floor space counts. Tying up a bay with a permanently mounted lift can limit daily workflow, especially when handling quick turnaround jobs like tyre changes or brake inspections. CAV understands this challenge, which is why the SP2.7E mobile single-post lift has been engineered to deliver professional-grade lifting performance without the commitment to a fixed bay.

This unit is more than just a lift; it is a strategic tool for optimising workshop operations. The CAV SP2.7E combines the power of a stationary lift with the agility of a portable unit, giving technicians the freedom to work where they are needed most. Whether rolling it out for a scheduled service or tucking it away in a corner after the job is done, this lift adapts to the rhythm of a busy shop rather than interrupting it.

The construction quality of the CAV SP2.7E reflects a deep understanding of what workshop equipment endures daily. At its core, a heavy-duty structural column provides the rigid support needed to safely handle loads up to 2700kg. This isn't just about meeting a number on a spec sheet; it is about delivering reliable performance shift after shift. The column design minimises flex and maintains stability, which is particularly important when technicians are applying torque to suspension components or performing wheel alignments.

Powering the lifting action is a 2.2kW aluminium motor. CAV has chosen an aluminium housing for a very practical reason. Aluminium dissipates heat far more effectively than traditional steel casings. This means the motor runs cooler during extended use, reducing the risk of thermal shutdown and extending the overall service life of the unit. For a workshop that relies on its equipment day in and day out, this translates directly to less downtime and lower long-term maintenance costs.

One of the most appreciated features is the pallet jack-style hydraulics. This system allows the lift to be raised onto its wheels with minimal effort, so a single technician can reposition it across the workshop floor. No need for heavy lifting or complex rigging—just a straightforward hydraulic pump action that gets the lift where it needs to go. Once in position, the unit sits securely on its base, ready to accept a vehicle.

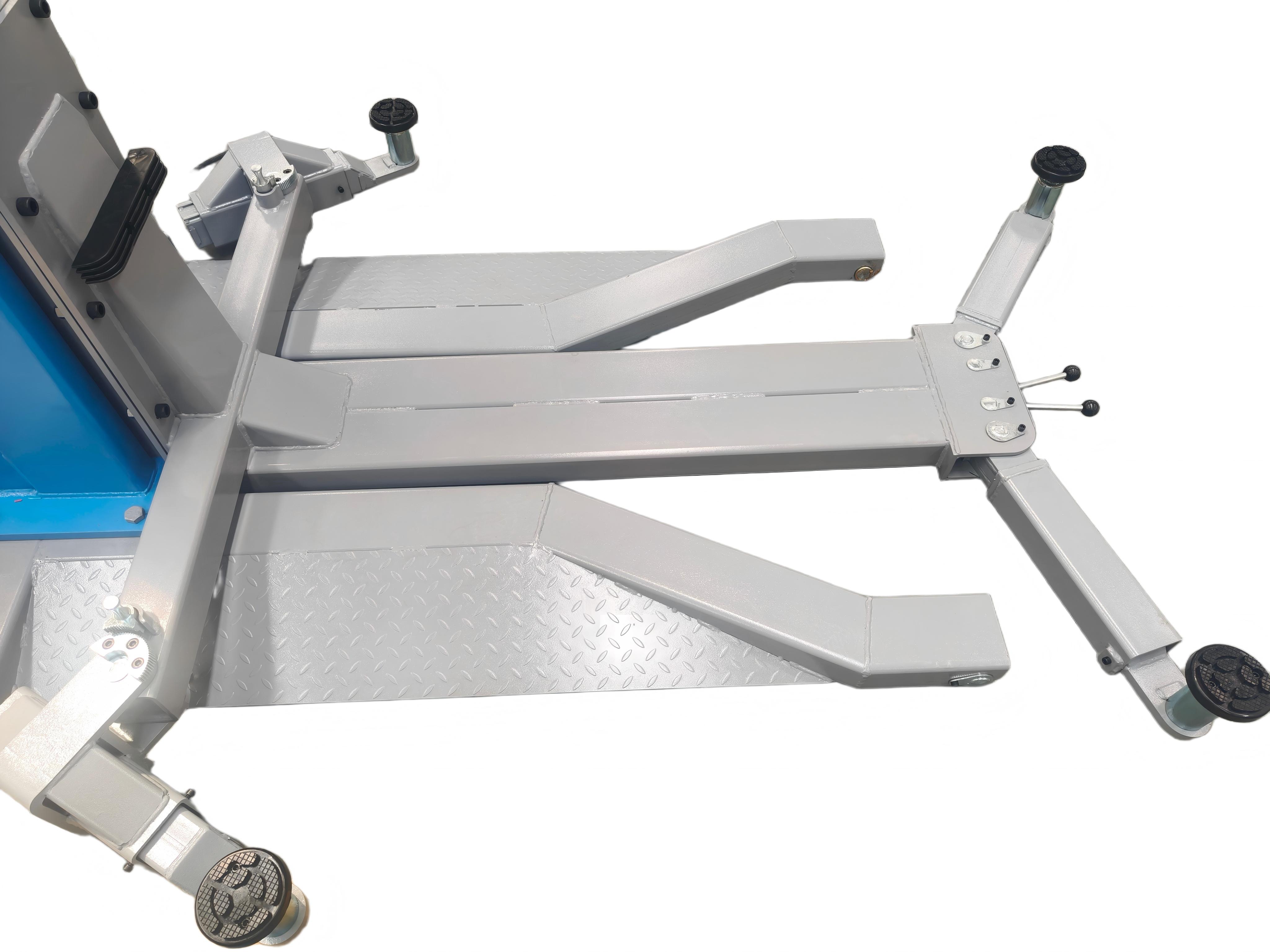

The built-in drive-over ramp is another thoughtful addition that maximises utility. When the CAV SP2.7E is not actively lifting a vehicle, a car can simply drive over the ramp without needing to move the lift out of the way. This feature is especially valuable in workshops with limited space, allowing the same area to be used for drive-through services or parking without constantly relocating equipment.

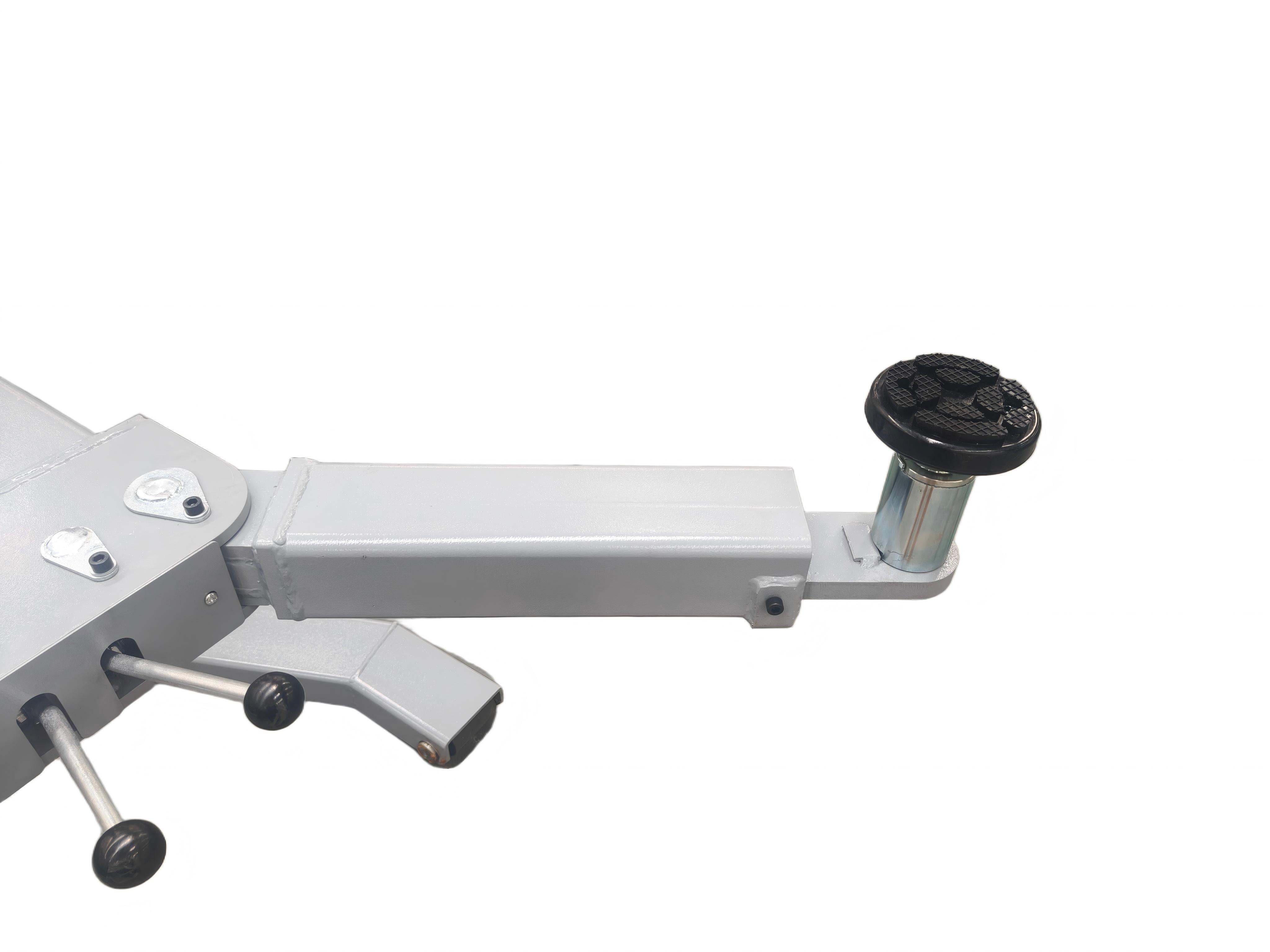

Getting the vehicle positioned correctly is straightforward thanks to the double spindle screw-up lifting pads. These pads allow for fine adjustment, helping technicians locate the perfect support points on a vehicle's chassis quickly. Once the arms are in place, the fully adjustable swing lifting arms can be positioned to suit various vehicle shapes and sizes. An automatic arm locking system then secures the arms, ensuring they stay firmly in position throughout the entire service process.

Safety and ease of use come together in the automatic lock release mechanism. As the lift rises, the locks engage at regular intervals, providing mechanical holds that support the load even if hydraulic pressure were to drop. The control box gives the operator simple UP and DOWN commands, while the lock release works automatically to disengage when lowering, taking the guesswork out of the operation. With four 85mm truck and SUV height adapters included as standard, the CAV SP2.7E is ready to handle taller vehicles right out of the box, expanding its versatility across a wide range of vehicle types.

Product highlights

• 2700kg Lifting Capacity, Mobile Single Post Lift - Rated at 2700kg, this mobile single-post lift handles everything from standard passenger sedans to heavier light commercial vehicles and SUVs. That kind of capacity in a portable unit is rare. CAV has managed to pack serious lifting power into a design that still rolls easily across the workshop floor, giving operators the best of both worlds—strength and mobility. The single-post configuration also takes up far less room than traditional two-post lifts, making it a smart choice for workshops where space comes at a premium.


• Fully Automatic Lock Release with UP and DOWN Control Box - The fully automatic lock release system is one of those features that makes a real difference in daily use. Operators control UP and DOWN functions through a straightforward control box, and the locks engage and disengage automatically at each height level. No manual lever pulling, no wondering whether the lock is set—just smooth, confident operation every time. This automatic lock release mechanism also speeds up workflow, because technicians spend less time fussing with controls and more time getting the job done.

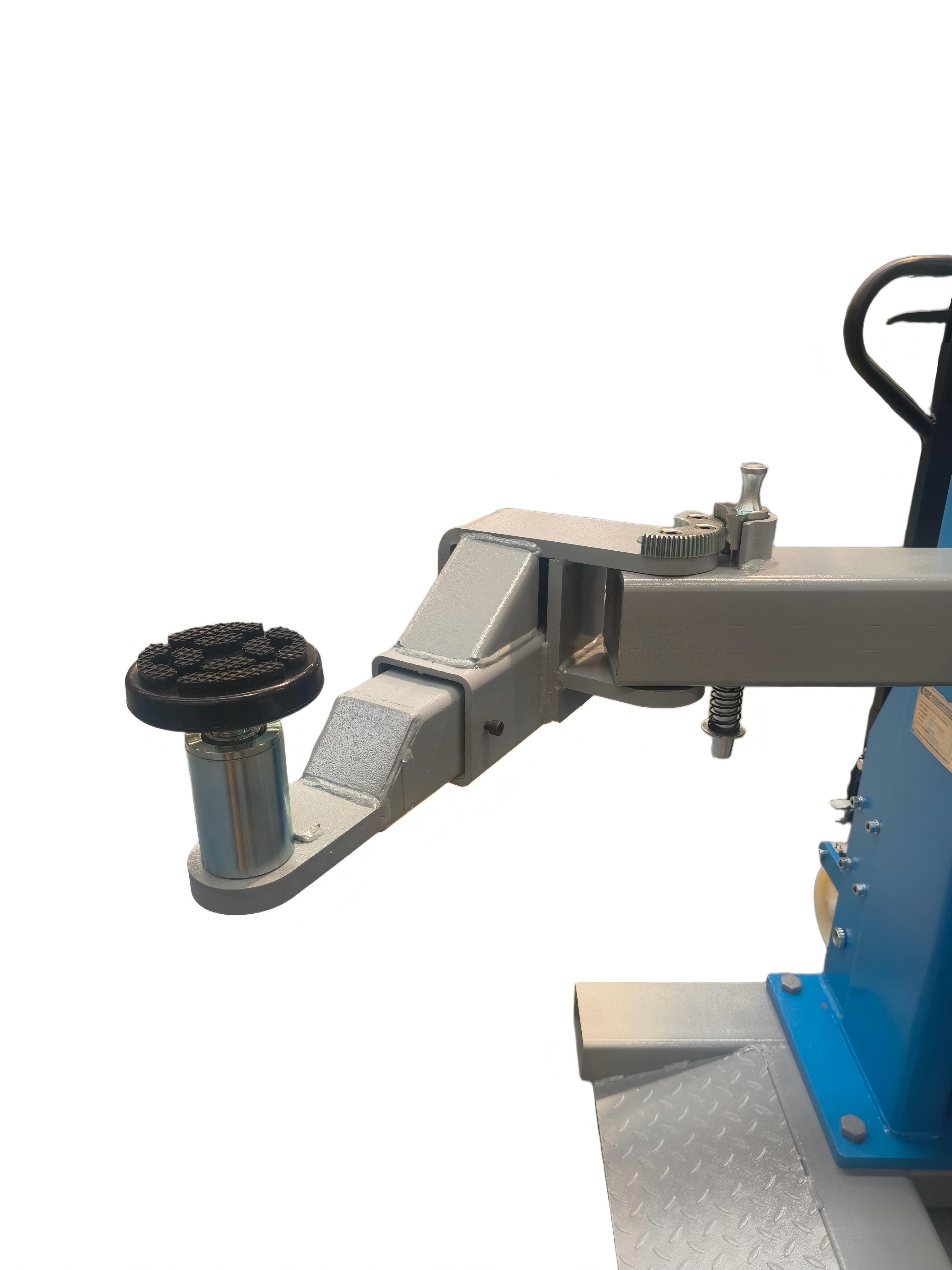

• Double Spindle Screw-Up Lifting Pads for Easy Support Point Location - Getting the vehicle properly supported is quick and accurate thanks to the double spindle screw-up lifting pads. These pads allow technicians to fine-tune support point locations with minimal effort, saving valuable time during vehicle setup. The screw-up design gives operators precise control over pad height, so even vehicles with irregular underbody shapes can be accommodated without frustration.

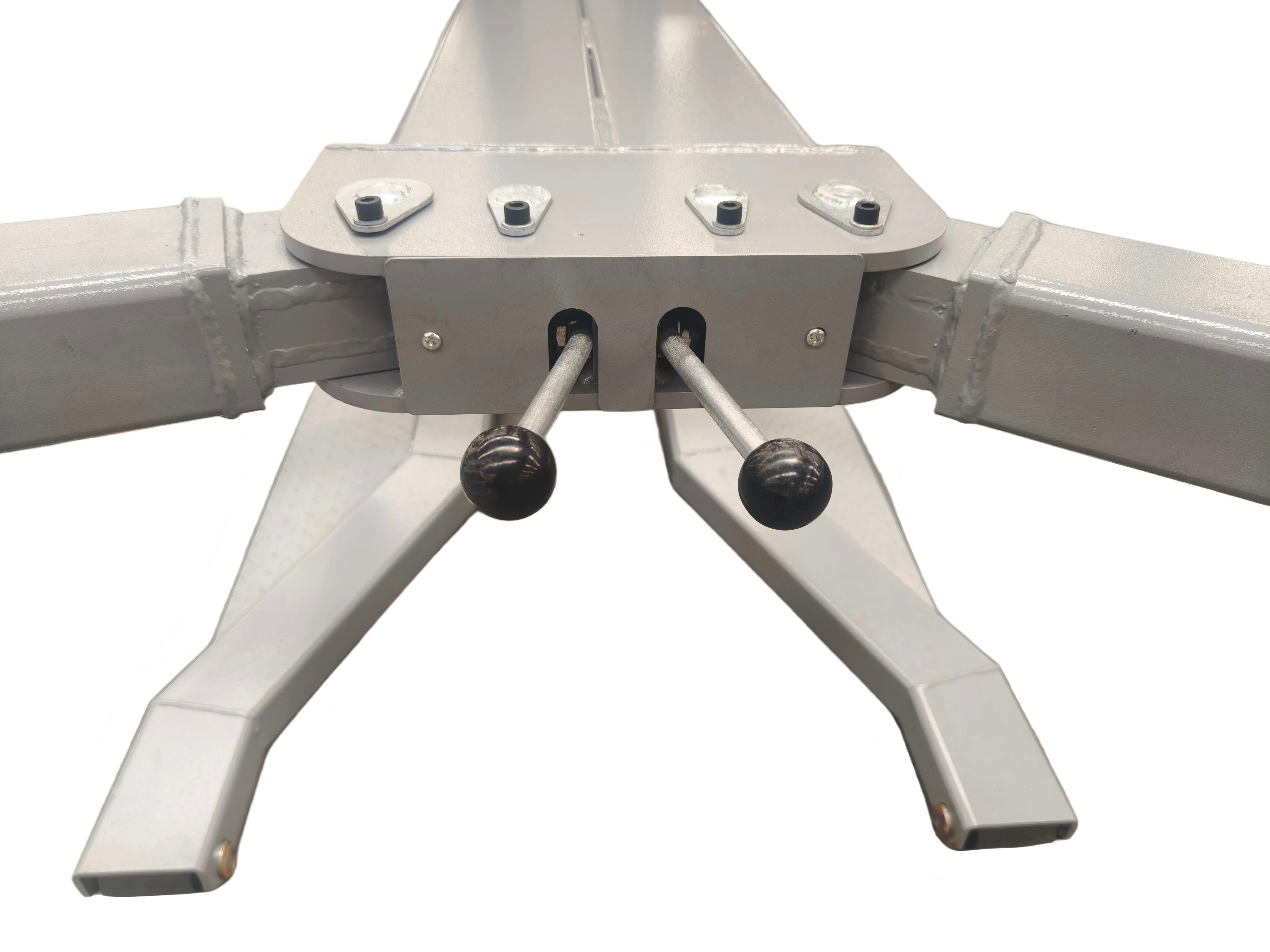

• Fully Adjustable Swing Lifting Arms and Automatic Arm Locking System - Once the pads are set, the fully adjustable swing lifting arms accommodate a wide range of vehicle widths and chassis designs. Whether you are working on a compact hatchback or a full-size SUV, these arms swing into position easily and lock securely in place. The automatic arm locking system ensures the arms stay exactly where they are positioned throughout the entire service, giving technicians confidence that the vehicle remains stable while they work underneath.


• Heavy-Duty Structural Column - The heavy-duty structural column provides a rock-solid foundation that handles daily use without flexing or compromising stability. CAV has engineered this column to withstand the torsional forces that come with unevenly distributed loads, so operators can trust that the lift will perform consistently regardless of the vehicle being raised.


• Aluminium Motor for Cooler Operation and Long Service Life - Under the hood, the aluminium motor runs cooler than traditional steel units, which means less heat-related wear and a significantly longer service life. This is not a minor detail—motors that overheat frequently lead to unexpected downtime and costly replacements. CAV's choice of aluminium addresses this problem head-on, keeping the lift running reliably for years.


• Pallet Jack-Style Hydraulics and Powder Coat Finish - The pallet jack-style hydraulics let a single operator raise the unit onto its wheels and roll it anywhere in the workshop. When not in use, it tucks neatly into a corner. The powder coat paint finish adds a tough outer layer that resists scratches, chemicals, and corrosion. Four 85mm truck and SUV height adapters come included, and the entire unit is CE certified to EN 1493.

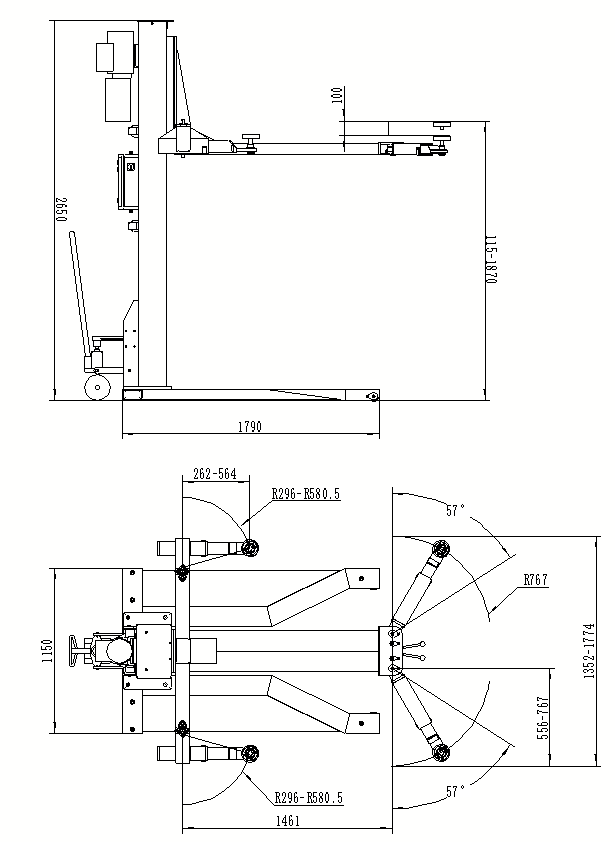

Overall dimension
