Intelligent sheet metal repair machine

The Intelligent Sheet Metal Repair Machine combines smart control systems with robust capability for professional panel restoration. The intelligent control system manages welding parameters automatically, adjusting output based on material type and thickness to achieve optimal results. This automation reduces the need for manual parameter adjustment, making the machine accessible to technicians with varying experience levels while maintaining professional-quality results across different repair tasks.

The dual voltage configuration supports 220V or 380V input with 50/60Hz frequency compatibility, accommodating workshops with different electrical service setups. The 2.2KVA rated power provides adequate energy for effective sheet metal repair across various applications, supporting both light and medium-duty repair work.

The smart control system automatically adjusts output parameters based on material detection, minimizing heat spread to surrounding metal and reducing the risk of warping or burn-through on thin panels. The machine supports effective repair of various automotive body panels, from standard steel to aluminum components, adapting its welding profile to different materials for consistent results across diverse repair applications.

Product highlights

Dual Voltage Configuration for Workshop Flexibility
The machine operates on either 220V or 380V input with 50/60Hz frequency compatibility, accommodating workshops with different electrical service setups from standard outlets to three-phase industrial power.

2.2KVA Rated Power for Effective Repair
The 2.2KVA rated power provides adequate energy for effective sheet metal repair across various applications, supporting both light and medium-duty repair work.

Intelligent Control System for Consistent Results
Smart control technology manages welding parameters automatically, adjusting output based on material type and thickness to reduce operator error and ensure consistent results across different technicians.

Auto-Sensing Technology for Material Adaptation
The auto-sensing feature detects material type and thickness, automatically adjusting output parameters for optimal results on both steel and aluminum panels.

Precision Repair Capability
The intelligent system delivers precise repair results with minimal heat spread to surrounding metal, reducing the risk of warping or burn-through on thin panels.

Versatile Material Compatibility
The machine supports repair of various automotive body panels including steel and aluminum materials, reducing the need for multiple specialized machines.

Reduced Repair Time
The automated parameter adjustment and efficient energy delivery support faster repair completion without compromising quality.

Durable Construction for Professional Use
The machine is built for professional workshop environments with durable components and robust construction for long-term reliability.

Name	model	image	Technical Parameter	Technical Parameter	Functional Features
Intelligent sheet metal repair machine	PL-90E		Input voltage: 220V/380V Frequency: 50/60Hz Rated power: 2.2KVA Output current: 3500A Output voltage: 6-8V Welding mode: induction welding, manual welding Number of welding guns: single gun Size:570*450*620MM Weight:42KG	1.Subverts traditional welding technology with induction pulse welding 2.No gun switch required; push-button operation 3.Split-type design 4.Features seven major functions: sheet metal triangular tab, OT washer, wave wire, flattening, spot welding, shrinking, and stud welding 5.Built-in 77 sets of welding parameters 6.Equipped with a copper rod pull hammer	1. Subvert traditional welding processes and use induction pulse welding 2. No need for gun switch, button operation 3. Split design 4. It has seven major functions including sheet metal triangle, OT gasket, waveform line, flattening, spot welding, shrinkage, and bolt 5. Built in 77 sets of welding parameters 6. Configure copper rod hammer
Intelligent sheet metal repair machine	PL-80N		Input voltage: 220V/380V Frequency: 50/60Hz Rated power: 2.2KVA Output current: 3800A Output voltage: 6-8V Welding mode: Induction welding Number of welding guns: single gun Size:570*450*620MM Weight:42KG	1.Revolutionizes traditional welding technology with induction pulse welding 2.Button-operated, no gun trigger required 3.Split-body design 4.Seven major functions: sheet metal triangular tab welding, OT washer welding, corrugated wire welding, flattening, spot welding, shrinking, and stud welding 5.Built-in 77 sets of welding parameters 6.Equipped with a copper rod pull hammer	1. Subvert traditional welding processes and use induction pulse welding 2. No need for gun switch, button operation 3. Split design 4. It has seven major functions including sheet metal triangle, OT gasket, waveform line, flattening, spot welding, shrinkage, and bolt 5. Built in 77 sets of welding parameters 6. Configure copper rod hammer

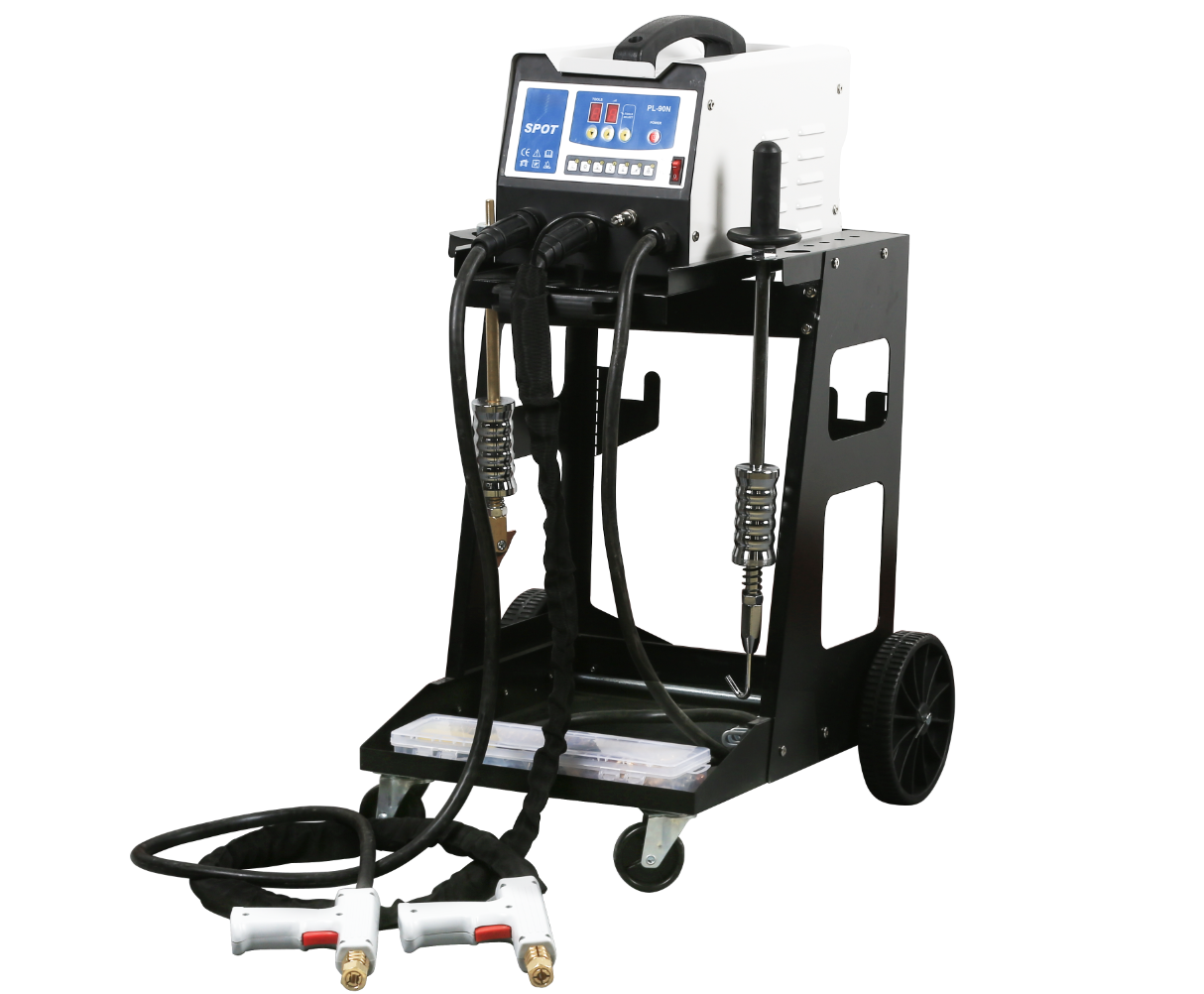

Intelligent sheet metal repair machine	PL-90N		Input voltage: 220V/380V Frequency: 50/60Hz Rated power: 2.2KVA Output current: 3800A Output voltage: 6-8V Welding modes: induction welding, manual welding Number of welding guns: dual guns Size:570*450*620MM Weight:45KG	1.Revolutionizes traditional welding technology with induction pulse welding 2.Button-operated, no gun switch needed 3.Split design 4.Seven major functions: sheet metal triangular tab welding, OT washer welding, corrugated wire welding, flattening, spot welding, shrinking, and stud welding 5.Built-in 77 welding parameter sets 6.Dual-gun configuration for easy operation 7.Equipped with a copper rod pull hammer	1. Subvert traditional welding processes and use induction pulse welding 2. No need for gun switch, button operation 3. Split design 4. It has seven major functions including sheet metal triangle, OT gasket, waveform line, flattening, spot welding, shrinkage, and bolt 5. Built in 77 sets of welding parameters 6. Dual gun configuration, easy to operate 7. Configure copper rod hammer
