Multi functional infrared baking lamp

The Multi Functional Infrared Baking Lamp provides professional-grade heating capability for automotive workshops, combining efficient infrared technology with an extended height range for versatile positioning. Cavalry recognizes that body shops need heating equipment that adapts to different vehicles, workpieces, and technician preferences. This infrared baking lamp addresses those requirements through practical design features including height adjustment, optimal working distance, and robust construction.

Infrared heating technology offers distinct advantages for automotive paint and drying applications. Unlike conventional hot air systems, short-wave infrared penetrates coatings directly, heating from the substrate outward rather than just warming the surface. This approach drives moisture and solvents out from the bottom, reducing the risk of bubbles or surface defects that can compromise finish quality. The heating process accelerates the molecular reaction in paints and primers, achieving effective curing times of approximately 15 minutes for two-component paints and 5 minutes for fillers. This efficiency helps workshops maintain throughput without compromising quality.

The extended height adjustment range of 0.2 to 2.1 meters provides exceptional flexibility for different workpieces and applications. Technicians can position the lamp from low positions for small component drying up to elevated positions for full vehicle panel curing. The 52cm lamp length provides adequate coverage area for most automotive applications, while the recommended working distance of 0.5-0.7 meters ensures optimal heat transfer efficiency.

Infrared radiation effectively accelerates surface evaporation and drying. The heat is readily absorbed by most materials, making it suitable for fast heating and drying across various workshop applications. The longer reach of the 2.1 meter maximum height accommodates larger vehicles including SUVs, vans, and light trucks, making this multi functional infrared baking lamp suitable for workshops handling diverse vehicle types.

The 220V input makes this infrared baking lamp compatible with standard workshop electrical configurations. The design supports long-term reliability, with components built for frequent use in professional environments where consistent performance matters. The adjustable positioning and consistent heat output support professional finish quality across various paint and drying applications.

Product highlights

Extended Height Adjustment from 0.2 to 2.1 Meters
The height adjustment range of 0.2 to 2.1 meters provides exceptional flexibility for different workpieces and applications. Technicians can position the lamp from low positions for small component drying up to elevated positions for full vehicle panel curing. The extended reach accommodates larger vehicles including SUVs, vans, and light trucks, making this infrared baking lamp suitable for diverse workshop operations.

Multi Functional Infrared Technology
Infrared radiation is readily absorbed by most materials, providing fast, even heating for various workshop applications. The heating process accelerates surface evaporation and drying, making this infrared baking lamp suitable for paint curing, putty drying, preheating, and more. The technology delivers rapid temperature rise for efficient workflow.

Optimal Working Distance of 0.5-0.7 Meters
The recommended working distance of 0.5-0.7 meters ensures optimal heat transfer efficiency. This distance range provides consistent heating across the lamp coverage area while reducing the risk of overheating or uneven drying. The working distance guidance helps technicians achieve professional results consistently.

52cm Lamp Length for Adequate Coverage
The 52cm lamp length provides adequate coverage area for most automotive applications. This length allows efficient heating of panels, components, and repaired areas without requiring repositioning. The coverage area supports both small repairs and larger panel work.

220V Operation for Standard Workshop Compatibility
The 220V input makes this infrared baking lamp compatible with standard workshop electrical configurations. The voltage specification reduces the need for special wiring or power supply modifications. The electrical design supports consistent heating performance while maintaining energy efficiency.

Infrared Penetration for Superior Finish Quality
Short-wave infrared penetrates coatings directly, heating from the substrate outward. This approach drives moisture and solvents out from the bottom, reducing the risk of bubbles or surface defects that can compromise finish quality. The result is a smoother surface with enhanced gloss and paint adhesion.

Efficient Heating for Workshop Productivity
Infrared heating delivers rapid, targeted heating that reduces drying and curing times compared to conventional methods. For two-component paints, effective curing can be achieved in approximately 15 minutes, while fillers may cure in about 5 minutes. This efficiency helps workshops maintain throughput without compromising quality.

Robust Construction for Professional Use
The multi functional infrared baking lamp is built for professional workshop environments where equipment sees regular daily use. Durable materials and quality components support long-term reliability. The construction withstands the demands of busy body shops and collision centers.

Versatile Application Compatibility
This infrared baking lamp supports various workshop applications including paint curing, putty drying, surface preheating, and general drying tasks. The extended height adjustment and working distance accommodate different workpieces and materials. The versatility makes it suitable for body shops, collision centers, and specialty finishing operations.

Practical Design for Workshop Integration
The height adjustment range supports different vehicle types and work positions. The lamp design facilitates positioning for panel work, component drying, and other tasks. The practical features support efficient workflow without requiring dedicated space.

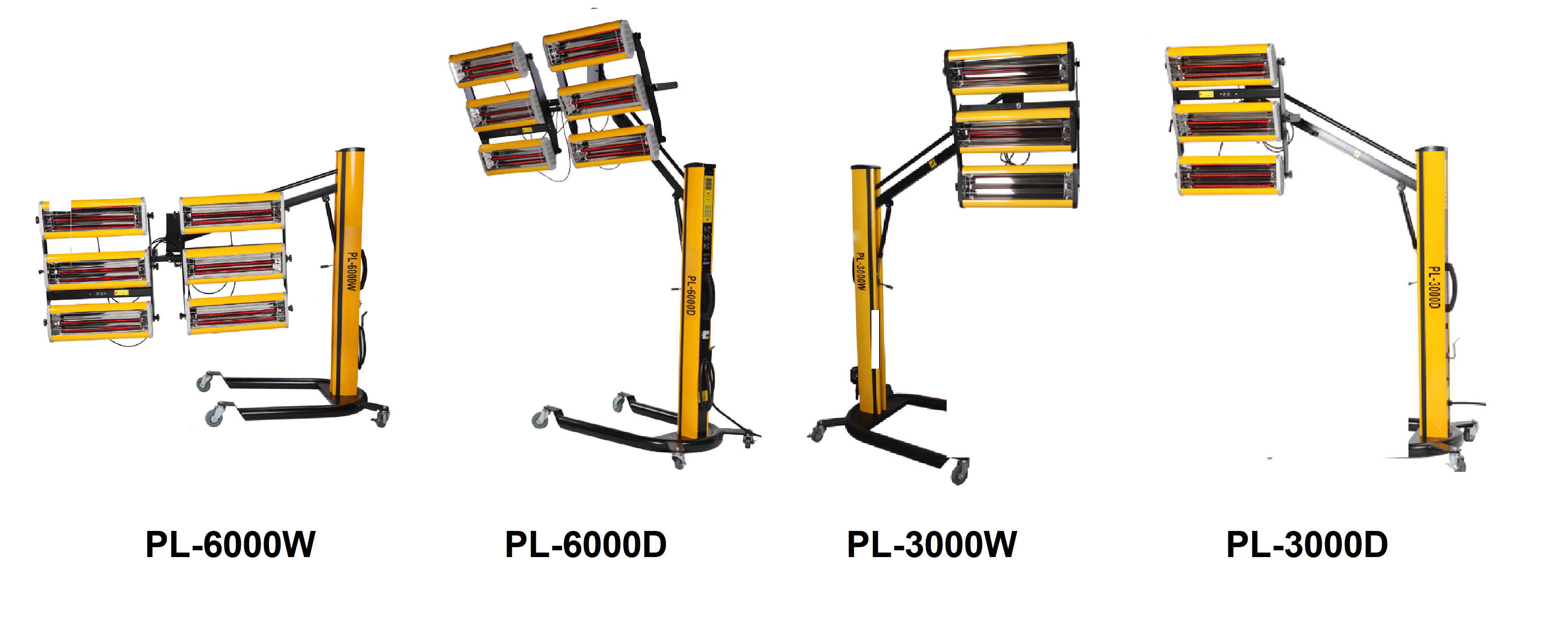

Name	Model	Image	Technical Parameter	Functional Features

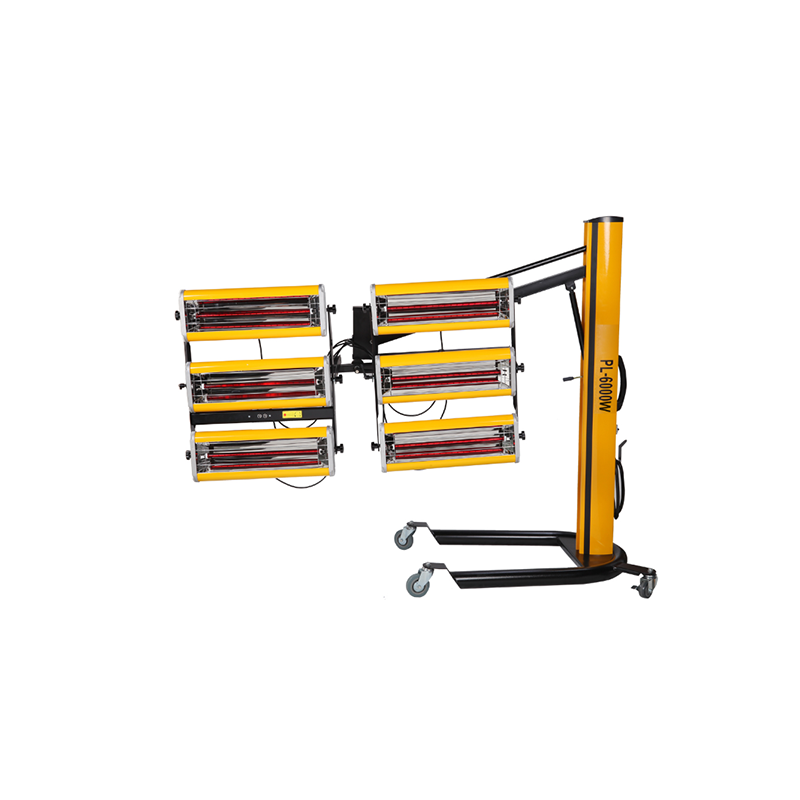

Multi functional infrared baking lamp	PL-6000W		Input voltage: 220V Rated power: 6000W Height adjustment: 0.2-2.1m Working current: 27.7A Output temperature: 40-100 ℃ Timer function: 0.1-99 minutes Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 1580 * 700 * 180MM 1080*780*180MM 830*720*180MM Weight: 84KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Fully automatic device, equipped with mechanical timer, sturdy and durable 4. Hydraulic lifter, capable of 360 degree rotation, independent switch 5. Equipped with fully automatic safety overload protection function 6. The control system can independently control each group of lights, which can quickly heat up without damaging the paint surface

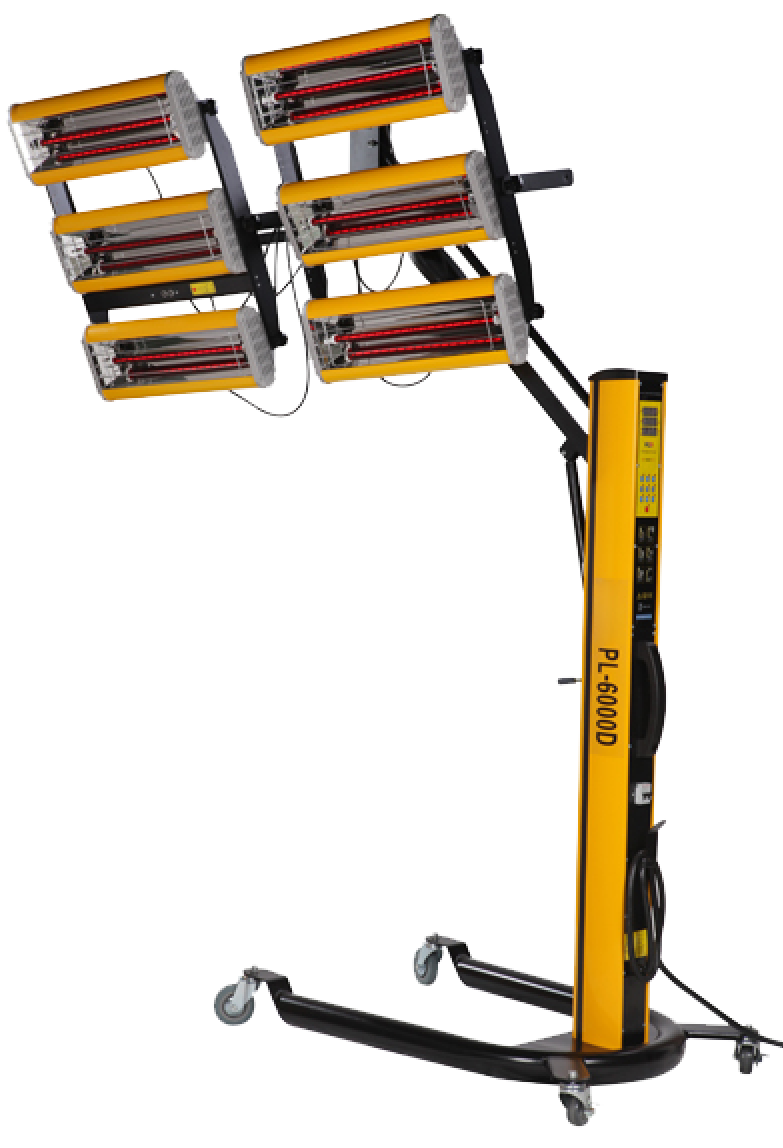

Multi functional infrared baking lamp	PL-6000D		Input voltage: 220V Rated power: 6000W Height adjustment: 0.2-2.1m Working current: 27.7A Output temperature: 40-100 ℃ Timer function: 0.1-99 minutes Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 1580*700*180MM 1070*780*220MM 830*720*180MM Weight: 84KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Fully automatic device, equipped with digital display electronic timer and digital display power 4. Hydraulic lifter, capable of 360 degree rotation, independent switch 5. Equipped with pulse baking paint function 6. Equipped with temperature setting function 7. Equipped with fully automatic safety overload protection function 8. The control system can independently control each group of lights and has a pulse baking function, which can quickly heat up without damaging the paint surface

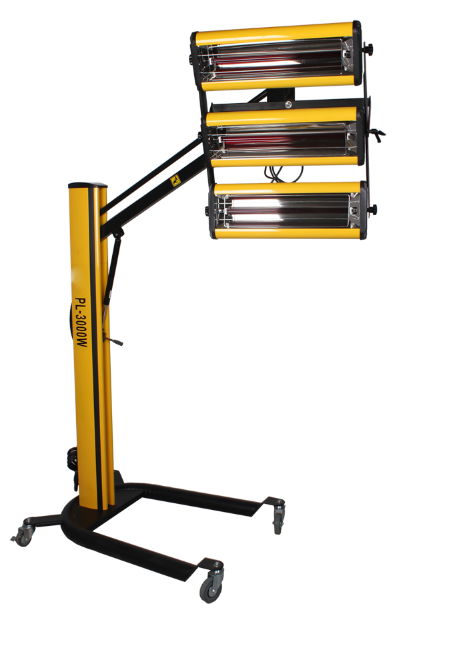

Multi functional infrared baking lamp	PL-3000W		Input voltage: 220V Rated power: 3000W Height adjustment: 0.2-2.1m Working current: 13.6A Output temperature: 40-100 ℃ Timer function: 0.1-30min Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 1580*700*180MM 1070*780*220MM Weight: 55KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Fully automatic device, equipped with mechanical timer, sturdy and durable 4. Hydraulic lifter, capable of 360 degree rotation, independent switch 5. Equipped with fully automatic safety overload protection function 6. The control system can independently control each group of lights, which can quickly heat up without damaging the paint surface

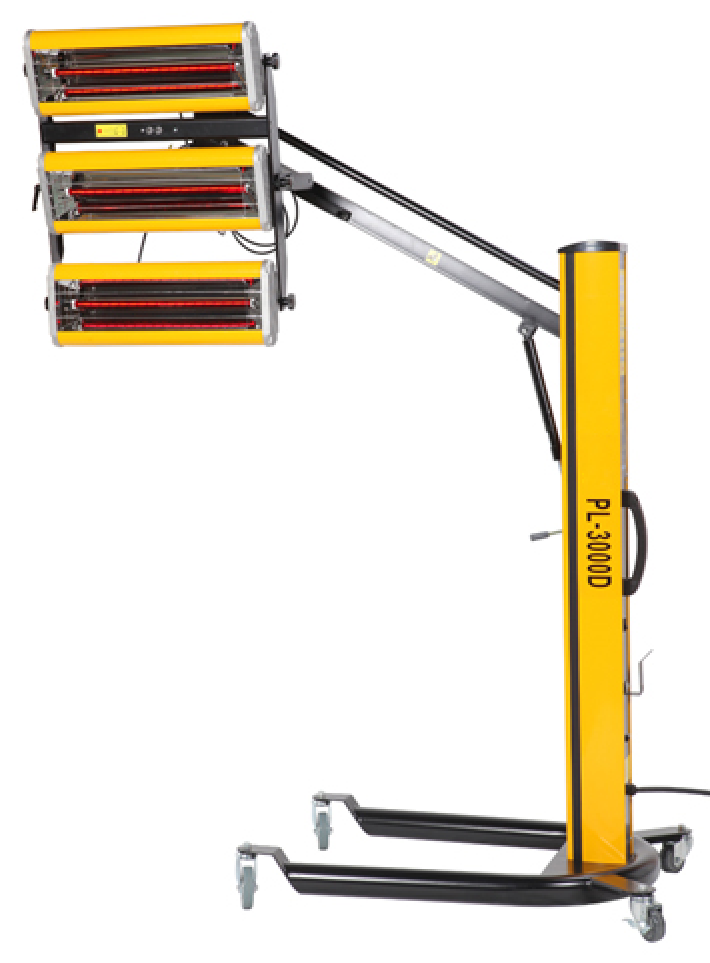

Multi functional infrared baking lamp	PL-3000D		Input voltage: 220V Rated power: 3000W Height adjustment: 0.2-2.1m Working current: 13.6A Output temperature: 40-80 ℃ Timer function: 0.1-30min Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 1580*700*180MM 1070*780*220MM Weight: 55KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Fully automatic device, equipped with digital display electronic timer and digital display power 4. Hydraulic lifter, capable of 360 degree rotation, independent switch 5. Equipped with pulse baking paint function 6. Equipped with temperature setting function 7. Equipped with fully automatic safety overload protection function 8. The control system can independently control each group of lights and has a pulse baking function, which can quickly heat up without damaging the paint surface
