2.7 Ton Capacity Portable Single-Post Lift , Manual lock release

The CAV SP2.7 is engineered as a mobile single-post lift that redefines what workshop owners can expect from portable lifting equipment. With a lifting capacity of 2,700 kilograms, this single post car lift handles everything from compact sedans to SUVs and light commercial vans with consistent stability and control. Unlike permanently mounted above-ground lifts that consume valuable bay space indefinitely, the CAV SP2.7 rolls into position when needed and retreats to a corner when the job is done.

What sets the CAV SP2.7 apart from conventional single post lifts is its thoughtful engineering around real-world workshop constraints. The single-post design reduces the footprint by approximately 20% compared to traditional two-post systems, making it an ideal solution for workshops where floor space comes at a premium. The lift operates on a pallet jack-style hydraulic system, allowing a single technician to maneuver the unit across the shop floor with minimal effort. This mobility means you are not locked into a fixed service bay configuration—you can bring the lift to the vehicle rather than forcing the vehicle to come to the lift.

The structural column is constructed from heavy-duty steel, engineered to withstand the repeated stresses of daily commercial use. CAV has incorporated a powder coat paint finish that provides superior resistance to chipping, corrosion, and the chemical exposures common in automotive workshop environments—from brake fluid and oil to degreasers and solvents. This finish not only extends the service life of the equipment but also maintains a professional appearance that reflects well on your shop.

From an operational standpoint, the CAV SP2.7 features a manual lock release mechanism that gives operators precise control over the lowering sequence. This manual lock release system engages mechanical safety locks at multiple height positions, securing the vehicle at the desired working height before any service work begins The system is designed to be intuitive—operators can raise, lock, and lower with confidence, knowing that the mechanical engagement is positive and reliable.

The lift's built-in drive-over ramp deserves special mention. When the CAV SP2.7 is not actively lifting a vehicle, the low-profile design allows cars to drive directly over the base frame. This feature is a game-changer for busy shops where every inch of floor space must serve multiple purposes throughout the day. You are not forced to work around a permanently installed obstacle—the lift integrates into the workflow rather than disrupting it.


Product highlights

• 2,700 kg Capacity – Handles passenger cars, SUVs, crossovers, and light commercial vehicles up to the full rated load, covering nearly every vehicle that rolls into a typical service shop.



• Manual Lock Release – Operators control lowering directly via a mechanical release. Safety locks engage automatically at multiple heights as the lift rises; disengaging them is deliberate and foolproof, removing electrical dependencies for critical holding functions.



• Double Spindle Screw‑Up Pads – Threaded pads on each arm allow quick, precise height adjustment to match factory lift points, accommodating varying ground clearances and chassis shapes.



• Fully Adjustable Swing Arms – Two‑way arm extension from 50 to nearly 70 inches (127–178 cm) fits different wheelbases and track widths. The two‑stage swing‑out design reaches compact cars and larger vehicles with equal ease.



• Automatic Arm Locking – Once positioned, arms lock automatically to prevent unintended movement during lifting or service. This adds a vital safety layer, keeping support points stable even if the vehicle shifts slightly.



• Heavy‑Duty Steel Column – Built from high‑grade steel with a reinforced cross‑section that minimises flex under full 2.7‑ton loads. The column stays rigid and true at maximum height, ensuring stable operation.



• Pallet Jack‑Style Hydraulics – The pump system doubles as a mobility aid: raise the lift onto its large nylon rollers and one person can easily move it across the shop floor, even over rough concrete. Genuine portability without extra equipment.



• Truck & SUV Height Adapters – Four snap‑in adapters are included, extending compatibility to taller vehicles with raised suspensions or off‑road tyres. Quick to fit and secure.



• Powder Coat Paint – Electrostatic powder coating creates a chemically bonded finish that resists chipping, scratching, and corrosion from oils, brake fluid, and solvents. Keeps the lift looking professional and protects structural integrity over years of daily use.

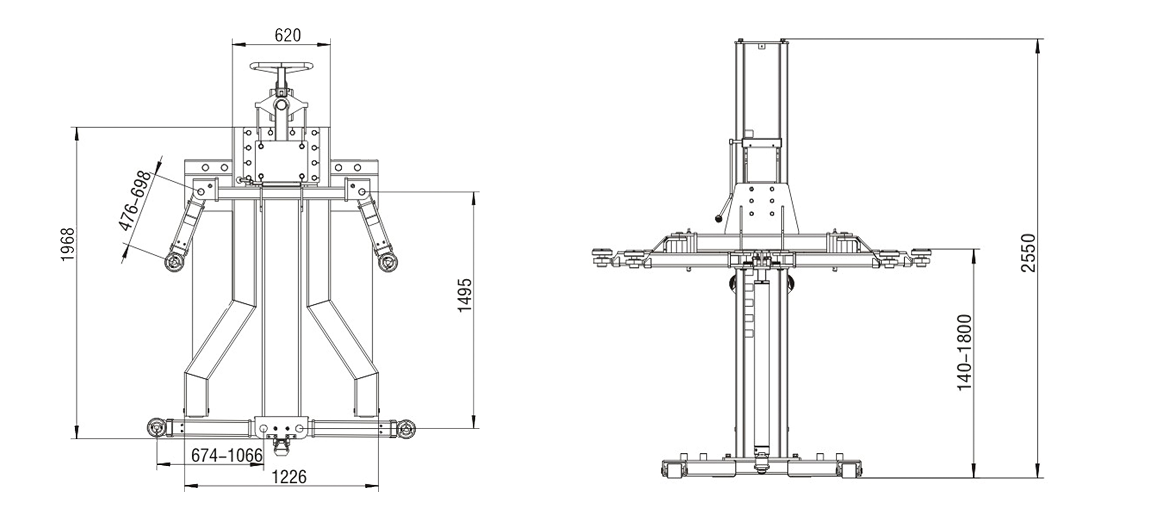

Overall dimension
