700kg (1,700 lbs) capacity electro-hydraulic motorcycle lift

The CAV ML-700 electro-hydraulic motorcycle lift is built for workshops where heavy machines are the norm, not the exception. CAV understands that when you are working on full-dress touring bikes, trikes, or custom choppers with all the accessories, you need lifting equipment that matches the scale of the job. That is exactly what this motorcycle lift delivers. The 2.2kW motor drives a robust hydraulic system that raises the platform smoothly and consistently, taking the physical strain out of lifting 700kg machines. The wired remote controller puts the controls right where you need them, so you can operate this motorcycle lift table while keeping both hands steady on the bike.

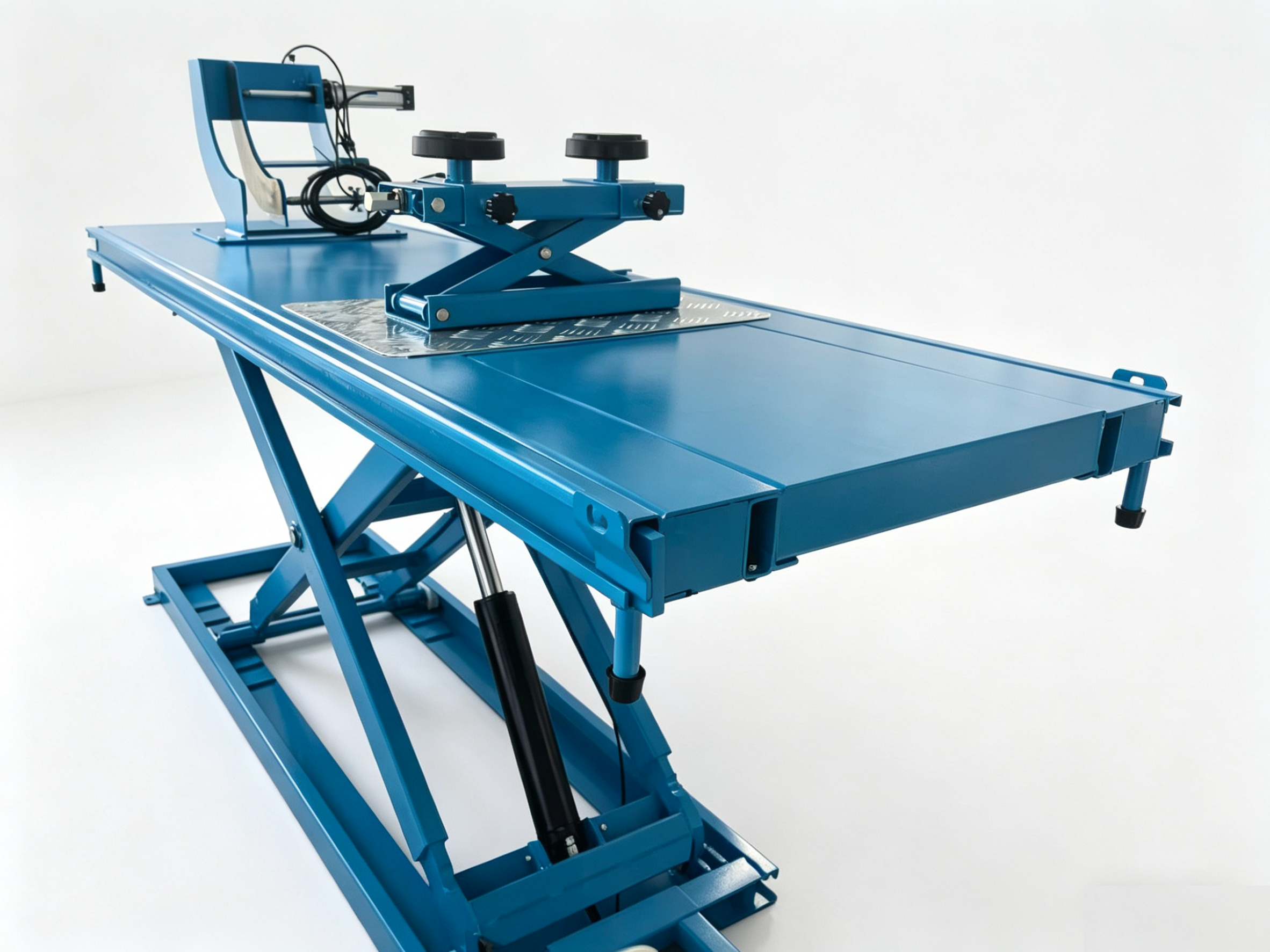

The platform on this 700kg motorcycle lift is genuinely spacious, measuring 2220mm in length and 725mm in width. That extra width is a real advantage when you are working on bikes with wide handlebars, saddlebags, or crash bars – you are not fighting for space. The minimum height of 190mm is low enough that you can roll most heavy touring bikes onto the platform using the included drive-on ramp. Once the machine is positioned, you simply remove the ramp from the work area so it stays out of your way while you service the vehicle.

One of the cleverest features on this motorcycle lift table is the rear opening in the platform. That opening allows you to drop the rear wheel straight through the table, which makes tyre changes, brake servicing, and final drive maintenance a whole lot easier. You do not need to wrestle with a separate wheel stand – this motorcycle lift handles it all.

For front-end work, the air-operated adjustable front wheel clamping system is a real timesaver. You can snug the front wheel securely with a quick air actuation, leaving your hands free to loosen axle bolts or service forks. The laser-cut mechanical safety device engages automatically as you raise the platform, and the single-point manual lock release gives you smooth, controlled lowering. With a maximum lifting height of 1200mm, this 700kg motorcycle lift brings even the largest machines up to a genuinely comfortable working height – your back will appreciate that on a long job.

Product highlights

Heavy-Duty 700kg Lifting Capacity – The CAV ML-700 is rated for 700kg (1,700 lbs), making it one of the more capable motorcycle lift tables in its class. This motorcycle lift handles full-dress touring motorcycles, trikes, sidecar rigs, and even light custom cars without breaking a sweat. That generous capacity means you are never second-guessing whether your lift can handle the machine on the bench – this 700kg motorcycle lift gives you the headroom you need for the heaviest jobs.

Powerful 2.2kW Electro-Hydraulic System – The 2.2kW motor is significantly more powerful than what you find on standard lifts. This motorcycle lift raises heavy machines quickly and smoothly, cutting down waiting time and keeping your workflow moving. The electro-hydraulic system is engineered for continuous shop use, with reliable performance that CAV has validated through rigorous testing.

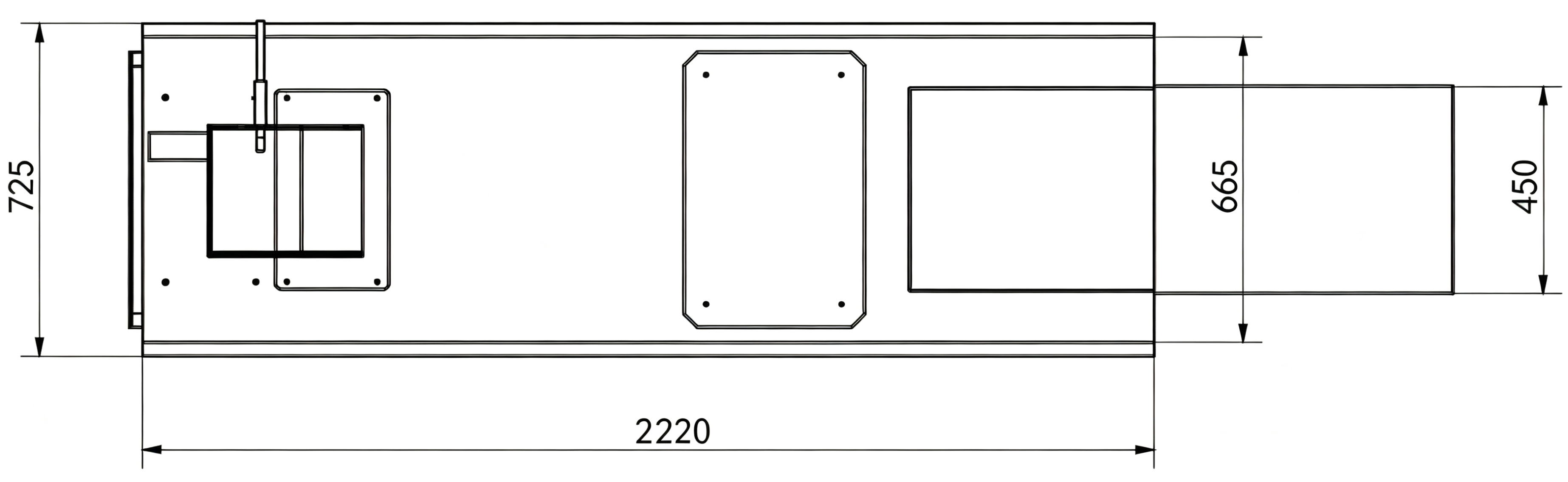

Spacious 2220mm x 725mm Platform – The generous platform dimensions give you exceptional working room. At 2220mm long, this motorcycle lift table accommodates stretched customs and long-wheelbase touring bikes with ease. The 725mm width provides stable support for wide machines, and the non-slip diamond-pattern surface keeps tyres gripped securely during maintenance.

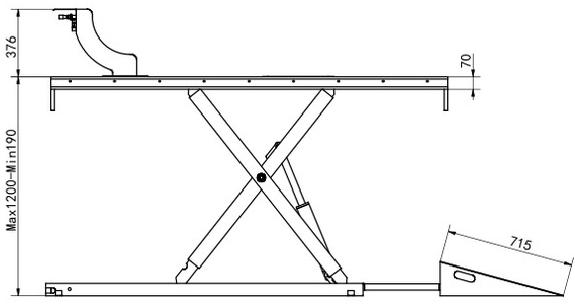

Exceptional Lifting Range – 190mm to 1200mm – With a minimum height of just 190mm, this 700kg motorcycle lift is incredibly low-profile, making loading easy even for bikes with limited ground clearance. The maximum height of 1200mm is taller than many competitor lifts, bringing the bike up to a genuinely ergonomic working level. That extra height makes a real difference during long service sessions.

Rear Opening for Wheel Removal – The rear opening in the platform is a practical feature that CAV has refined over years of workshop feedback. You can drop the rear wheel through the table for straightforward tyre changes, brake disc replacements, and swingarm servicing. This motorcycle lift essentially doubles as a tyre-changing station.

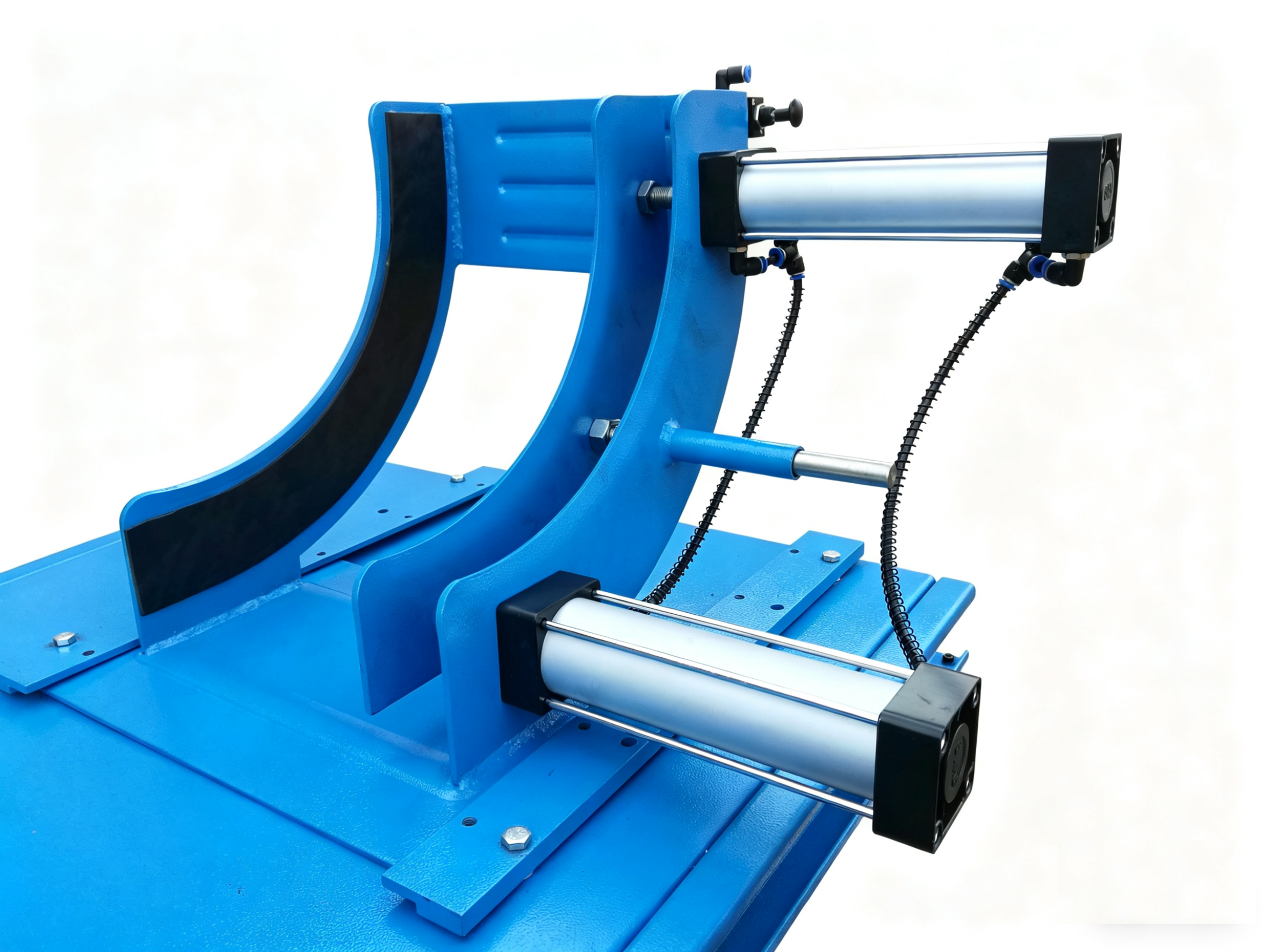

Air-Operated Front Wheel Clamp – The pneumatic front wheel clamping system is quick and effortless to use. A simple air actuation secures the front wheel firmly, so you can tackle fork work, headstock bearing adjustments, or front tyre changes with confidence. No manual cranking required – this 700kg motorcycle lift speeds up your front-end workflow.

Laser-Cut Mechanical Safety Lock – CAV uses precision laser-cut components for the safety lock mechanism, ensuring a positive, secure engagement every time. This mechanical lock takes the full weight off the hydraulic cylinder when the platform is raised, so you can work underneath or around the machine with peace of mind.

Single-Point Manual Lock Release – The lock release is operated by a single lever, giving you precise control over descent. The manual release means no electrical dependency – even if power fails, you can safely lower this motorcycle lift table without drama.

Removable Drive-on Ramp – The included ramp loads low-clearance bikes easily and detaches completely from the work area once the machine is on the platform. That keeps your workspace clear and reduces trip hazards.
