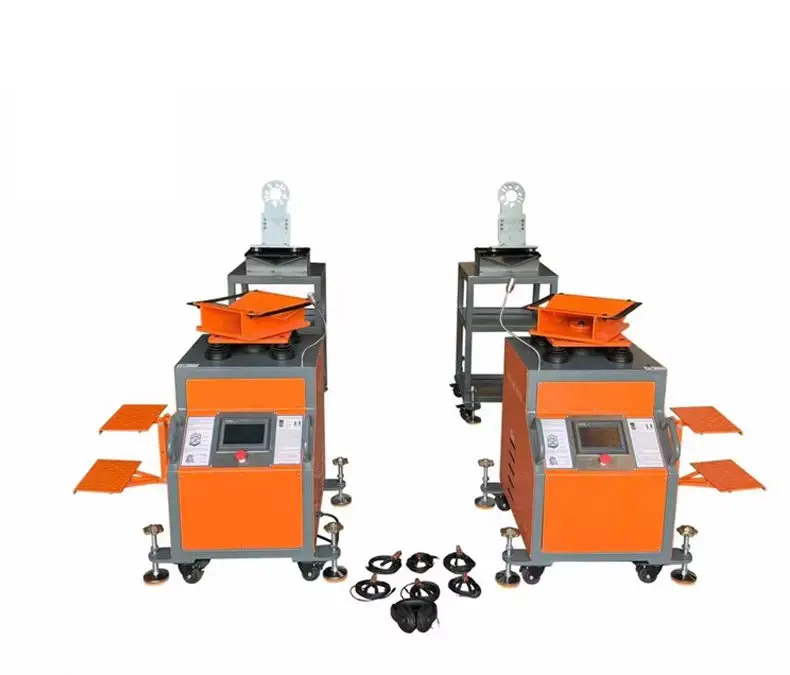

Chassis Road Simulator (Touch Screen)

The Chassis Road Simulator (Touch Screen) represents a significant advancement in automotive chassis diagnostic technology, combining robust mechanical performance with modern user interface design. Cavalry understands that today's diagnostic technicians need equipment that delivers accurate test results while being straightforward to operate. This chassis road simulator meets those requirements through an integrated design that balances powerful mechanical systems with an intuitive touch screen interface.

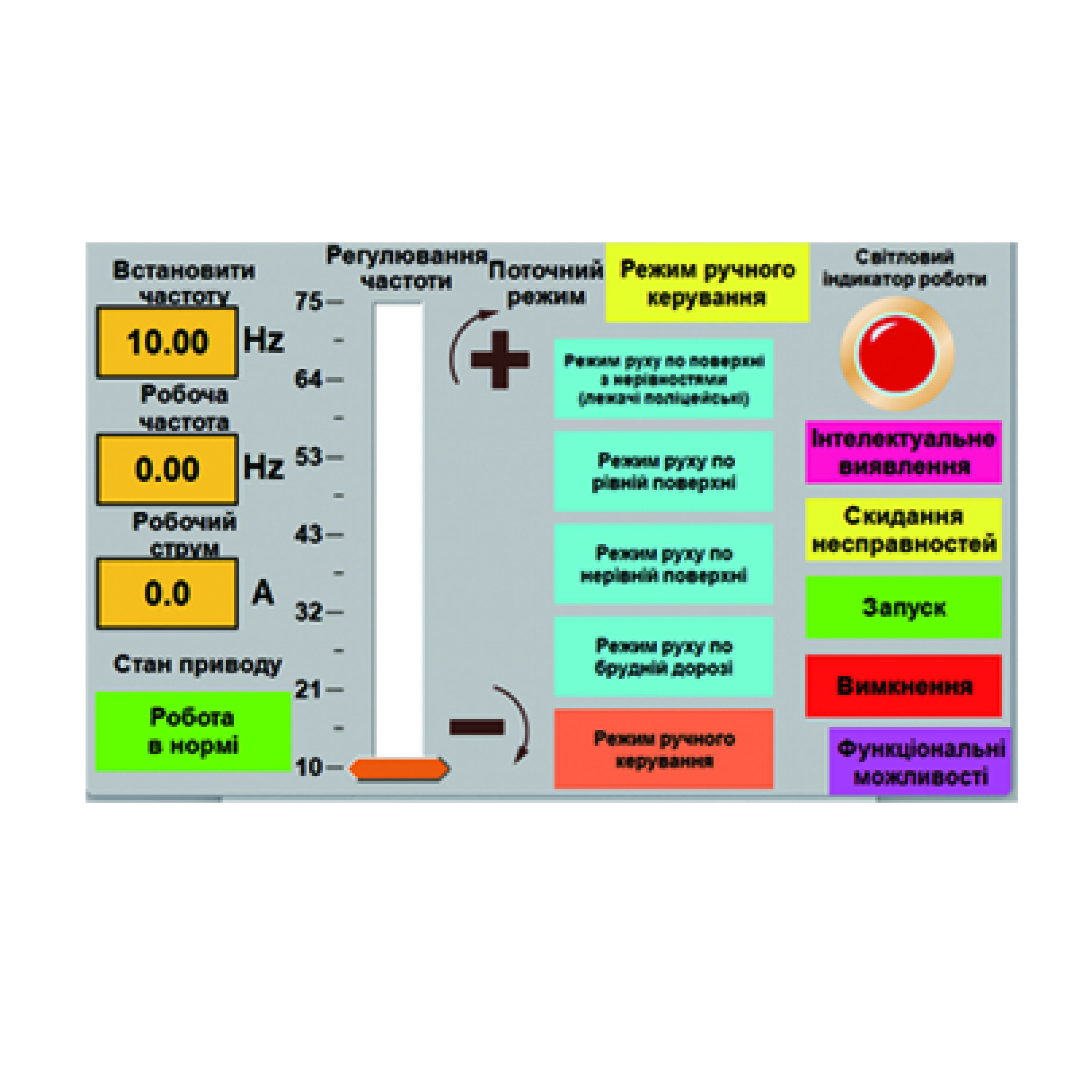

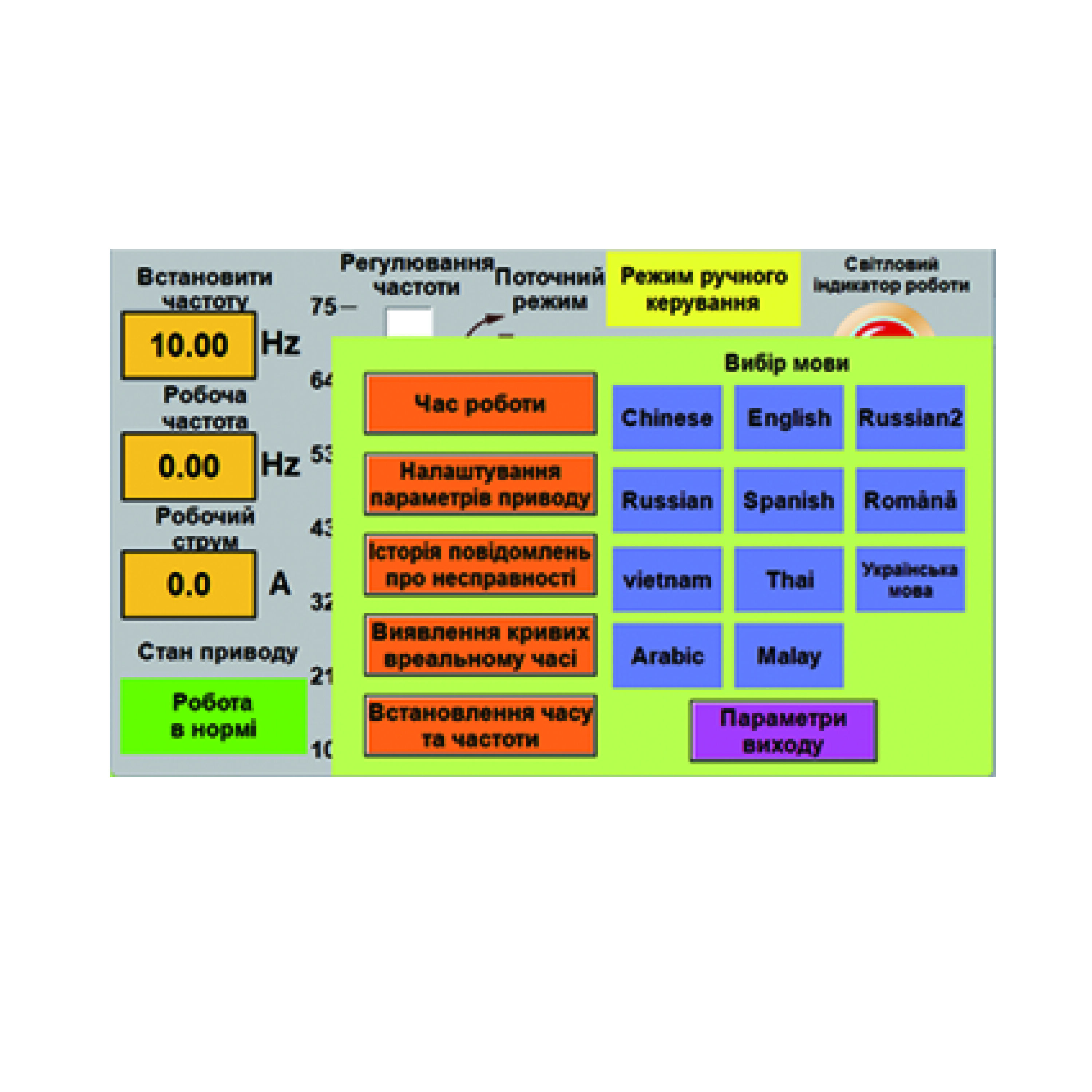

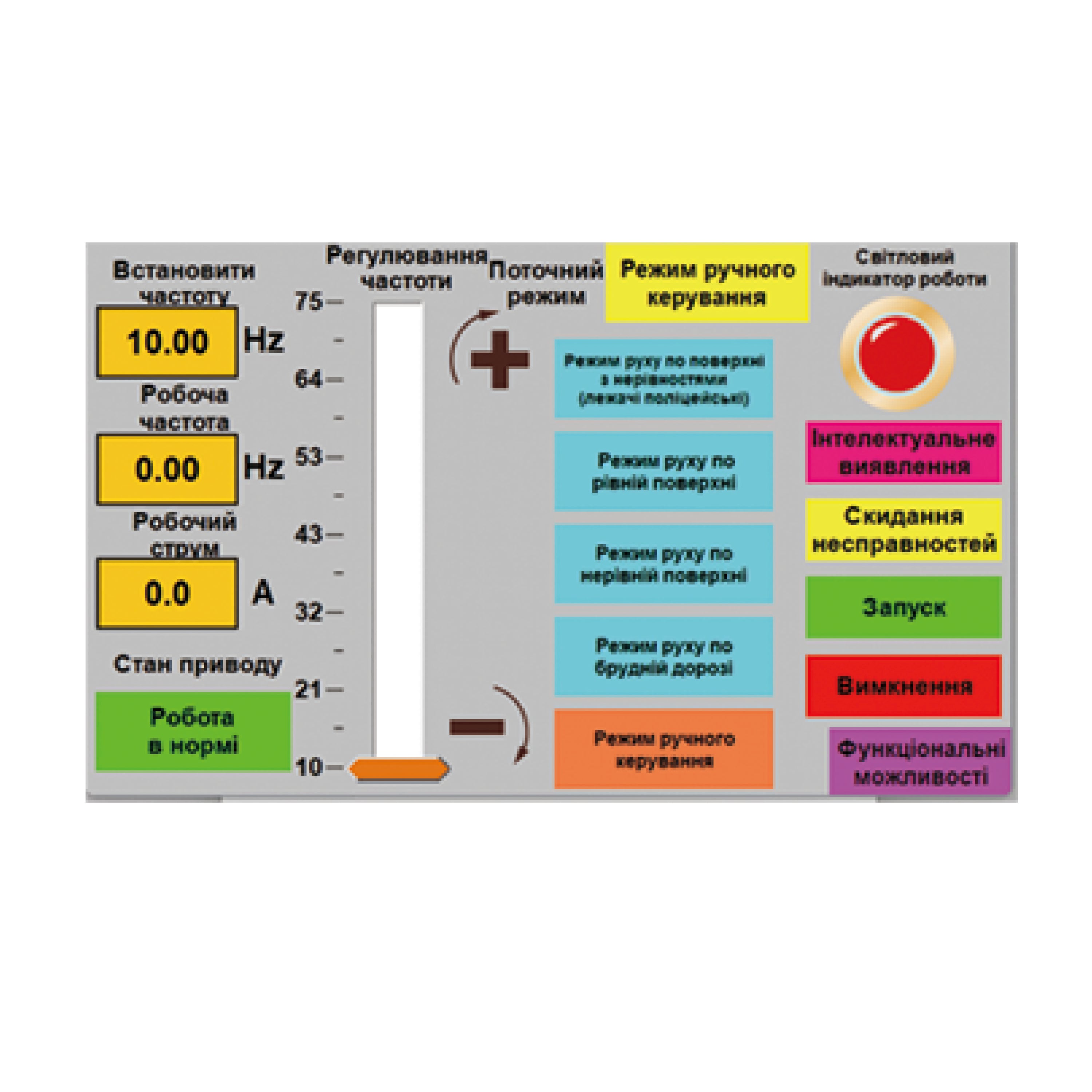

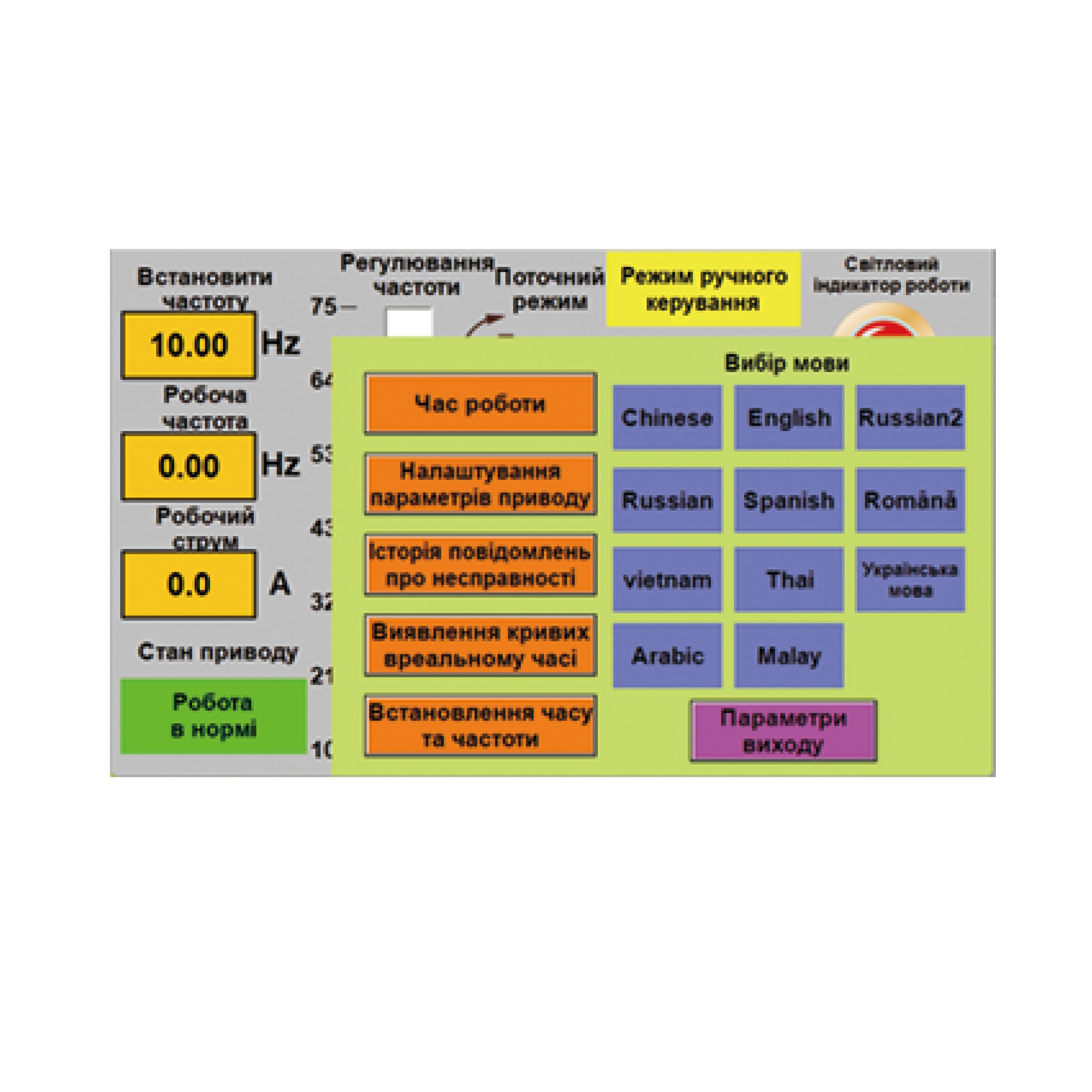

The touch screen serves as the primary control interface, replacing complex button arrays with an elegant, high-end display that makes operation more convenient and accessible. Technicians can adjust testing parameters, select road condition simulations, and monitor test progress through the touch screen interface. This modern control approach reduces operator training time and supports consistent test procedures across different technicians.

At the core of the chassis road simulator is a multi-frequency high torque motor that delivers consistent power for demanding testing applications. The 3kw motor drives the system with sufficient force to handle vehicles up to 4500kg, covering passenger cars, SUVs, and light trucks. The motor operates on either 220V or 380V power supplies, providing flexibility for workshops with different electrical configurations.

The microcrystalline regulator enables precise simulation of different bumpy road surfaces. Technicians can adjust operating parameters through the touch screen interface to replicate specific road conditions for targeted chassis and suspension diagnostics. This electronic control system provides fine adjustment capability for accurate testing across varied conditions.

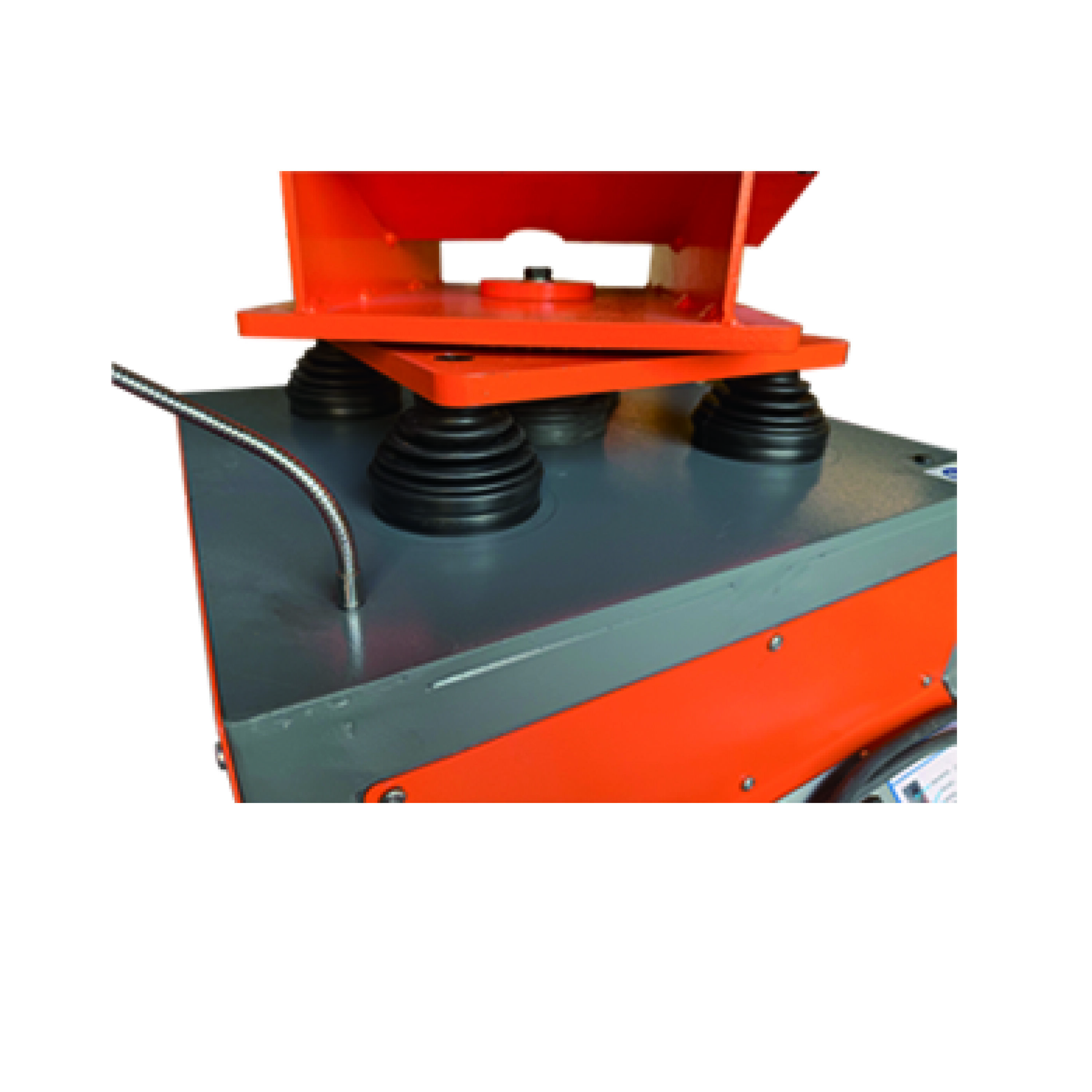

The rotating head design significantly improves diagnostic accessibility. Technicians can position components for convenient inspection without moving the vehicle or equipment, reducing testing time and improving workflow efficiency. The 8-point support adjustment ensures platform stability during testing operations, allowing technicians to compensate for uneven workshop floors and maintain a stable testing platform.

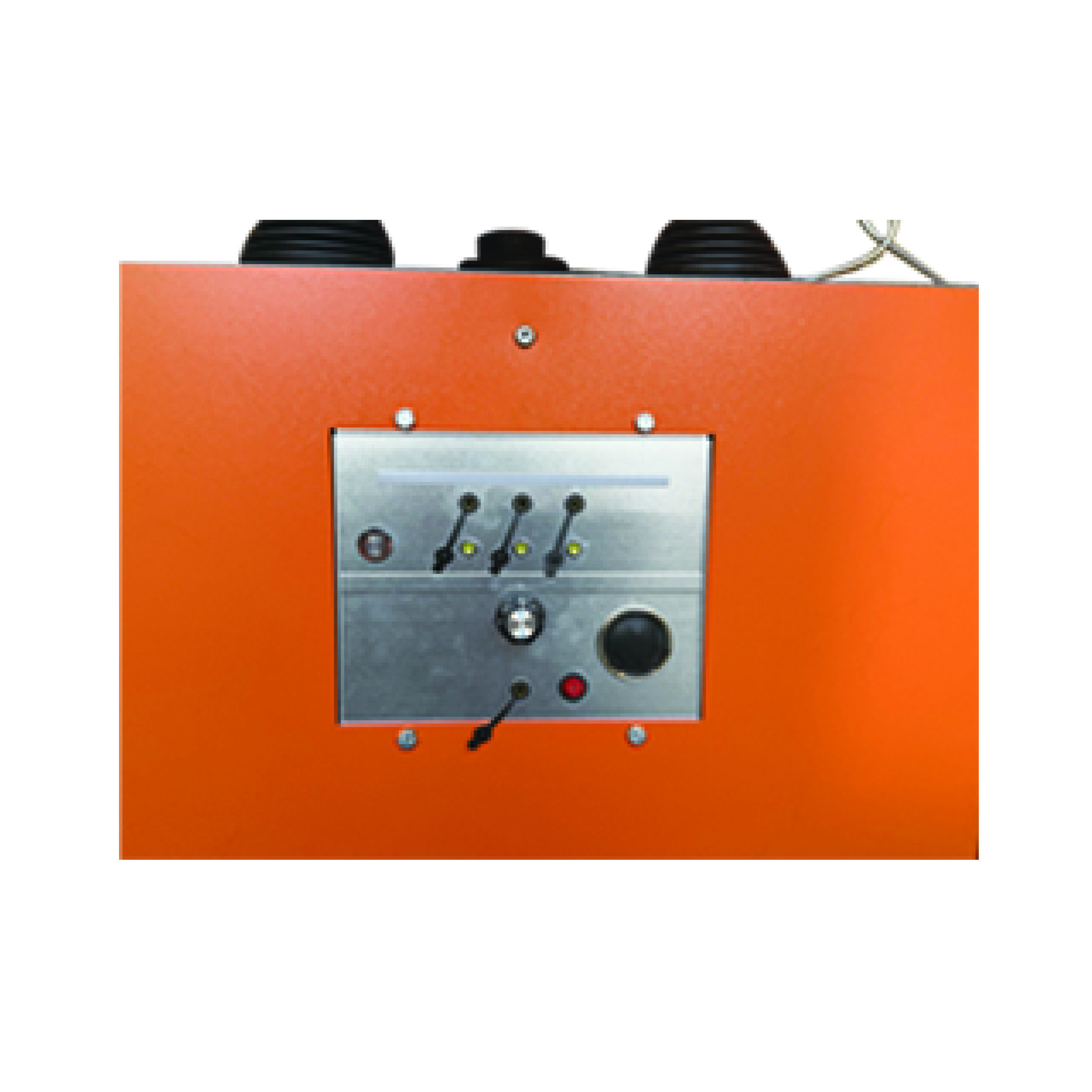

Safety is integrated throughout the design, including an emergency stop button for one-click shutdown, a shutdown lock, and a leakage protection device. The belt drive system provides quiet operation, reducing workshop noise levels and creating a better testing environment. The integrated searchlights provide convenient illumination for under-vehicle inspection, improving visibility during diagnostic procedures.

Product highlights

Touch Screen Interface for Convenient Operation
The touch screen is elegant and high-end, making operation more convenient for technicians. This modern interface replaces complex button arrays with an intuitive display that simplifies testing parameter adjustment and road condition selection. The touch screen reduces operator training time and supports consistent test procedures across different technicians.

Multi-Frequency High Torque Motor
The chassis road simulator features a multi-frequency high torque motor that delivers consistent power for demanding chassis testing applications. The 3kw motor provides sufficient force for vehicles up to 4500kg, covering passenger vehicles, SUVs, and light trucks. The motor operates on either 220V or 380V power supplies for workshop flexibility.

4500kg Lifting Capacity
With 4500kg lifting capacity, this chassis testing equipment handles a broad range of vehicle types from passenger cars to light trucks and SUVs. The lifting height reaches 1100mm, providing adequate clearance for comprehensive under-vehicle inspection and diagnostic access.

Microcrystalline Regulator Control
The microcrystalline regulator enables precise simulation of different bumpy road surfaces for accurate chassis and suspension diagnostics. This electronic control system provides fine adjustment of operating parameters, allowing technicians to replicate specific road conditions for targeted testing.

8-Point Support Adjustment for Stability
Eight-point support adjustment ensures platform stability during testing operations. The leveling system allows technicians to compensate for uneven workshop floors, maintaining a stable testing platform that supports accurate diagnostic results across diverse workshop environments.

Integrated Searchlights for Convenient Illumination
Equipped with searchlights for convenient illumination, the chassis road simulator improves under-vehicle inspection visibility. The lighting system helps technicians identify suspension component wear, chassis damage, and other issues during diagnostic procedures.

Belt Drive for Quiet Operation
Precision drive connection with belt drive provides good noise reduction during operation. The belt drive design supports a quiet testing environment, improving working conditions for technicians and reducing workshop noise levels. This creates the best detection environment for accurate diagnostic work.

Comprehensive Safety Features
Safety equipment includes an emergency stop button, one-click shutdown lock, and a leakage protection device. These features protect both operators and equipment during testing operations, supporting workshop safety standards and regulatory compliance.

Stress Release Devices for Testing Accuracy
Total six sets of equipment are equipped with stress release devices. These devices manage mechanical stress during operation, supporting more comprehensive and accurate detection results across all six equipment sets.

Wide Operating Temperature Range
The chassis road simulator operates reliably across temperatures from -30°C to +50°C, suitable for workshops in diverse climate conditions. This wide temperature range supports consistent performance across different geographic regions and seasonal variations.

Customizable Color Options
The chassis road simulator is available with customizable color options, allowing workshops to match the equipment to their facility branding or color scheme preferences.
