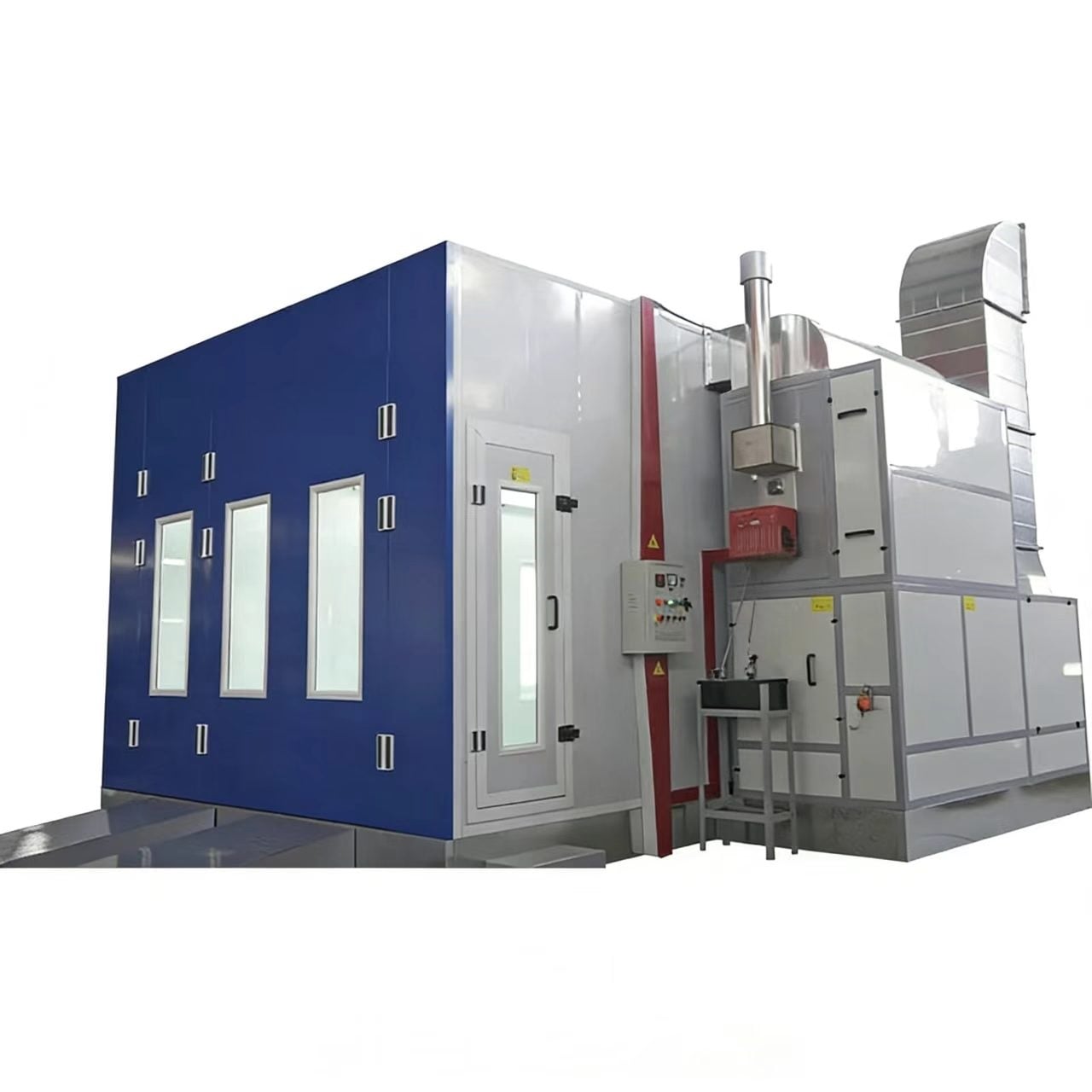

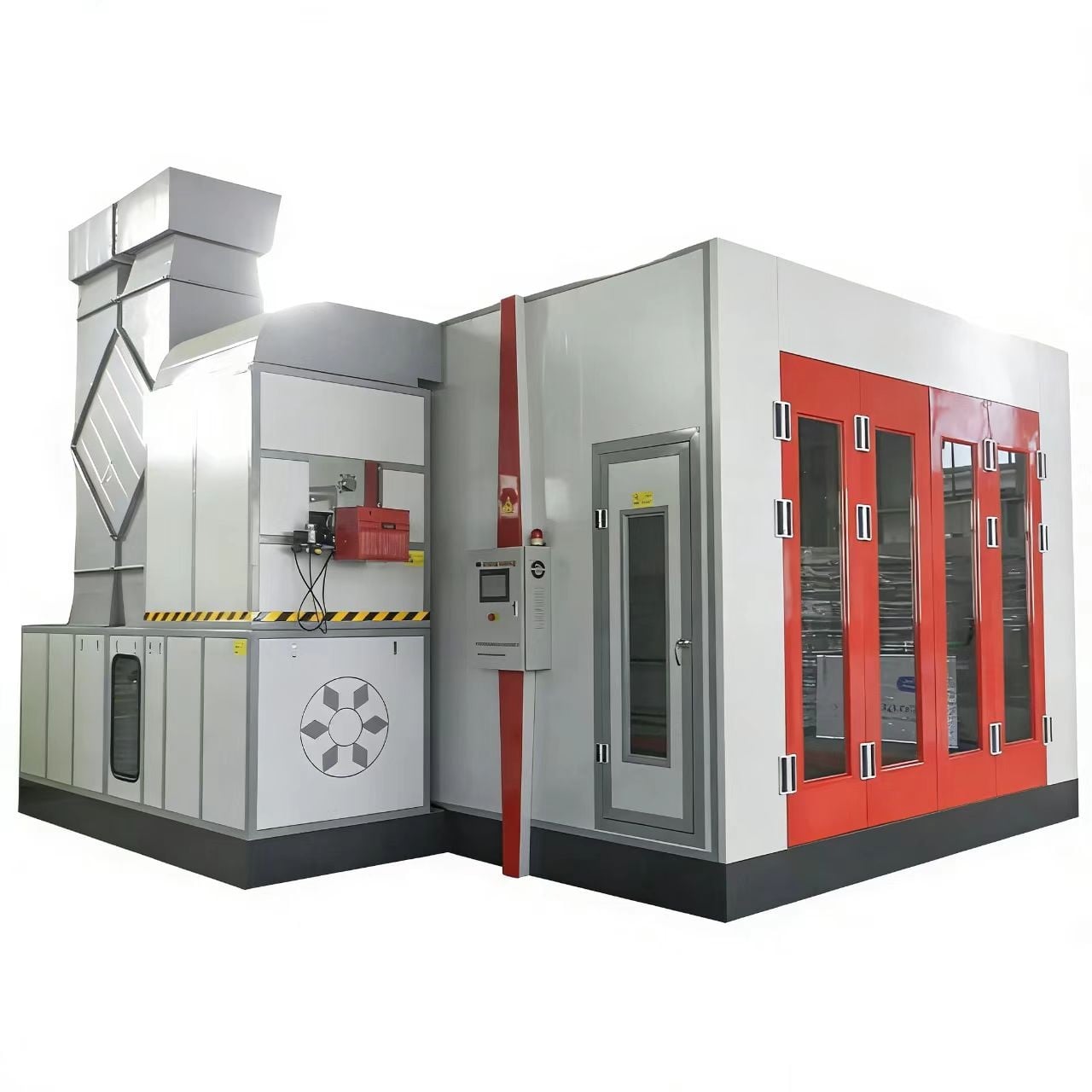

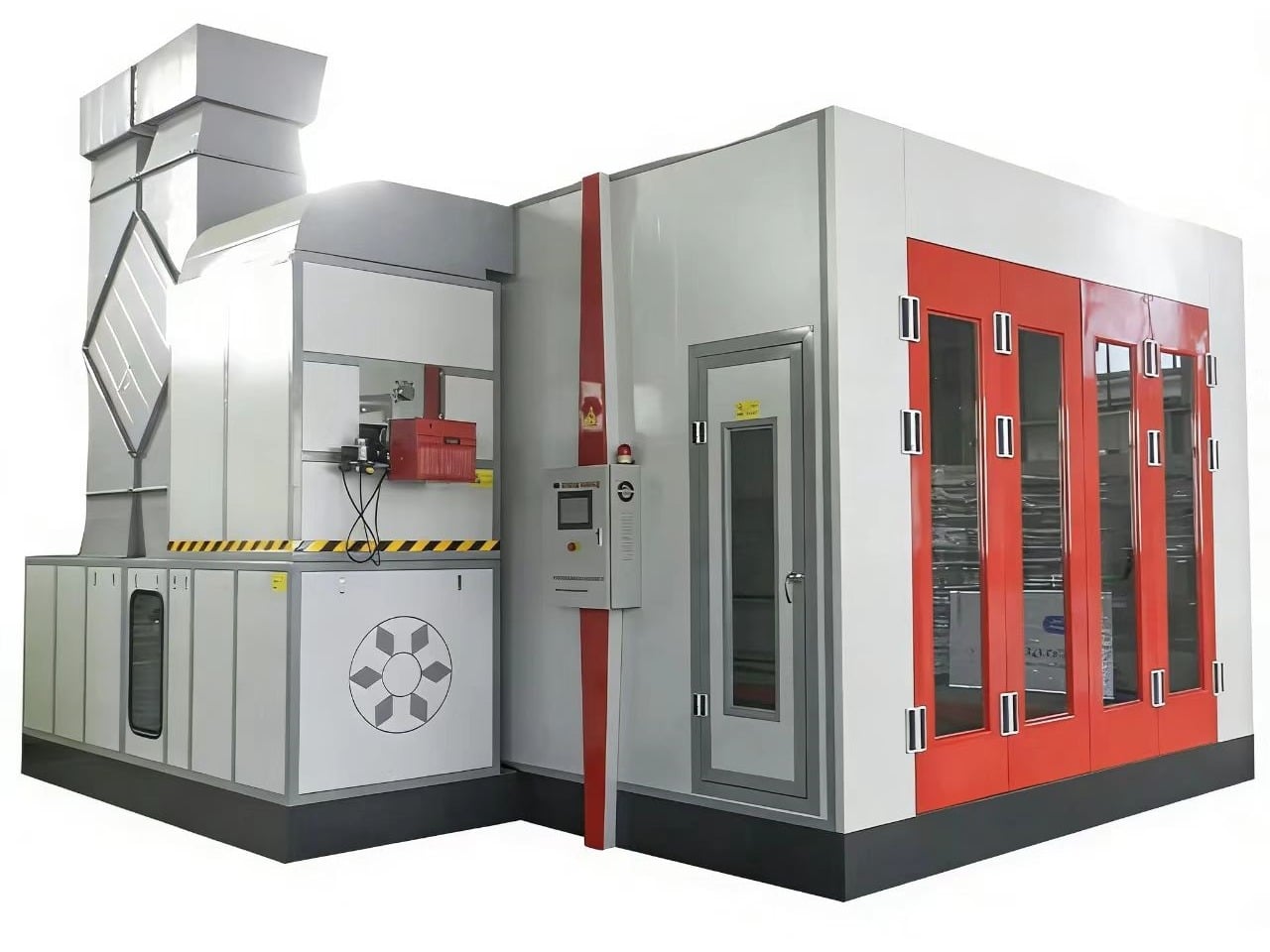

Cavalry LX2S Professional Car Paint Booth Spray Chamber

LX2S

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000×2600 mm(W×H),bending steel door,cast aluminum hinge,tempered glass window

Emergency door

650*2000mm(W*H),with pressure lock,with glass window,with step

Main System

Wall panel

-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

 Basementt

-Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills,3 rows of indented plates. ramps,external setting,620*2000mm(W*L)/pc

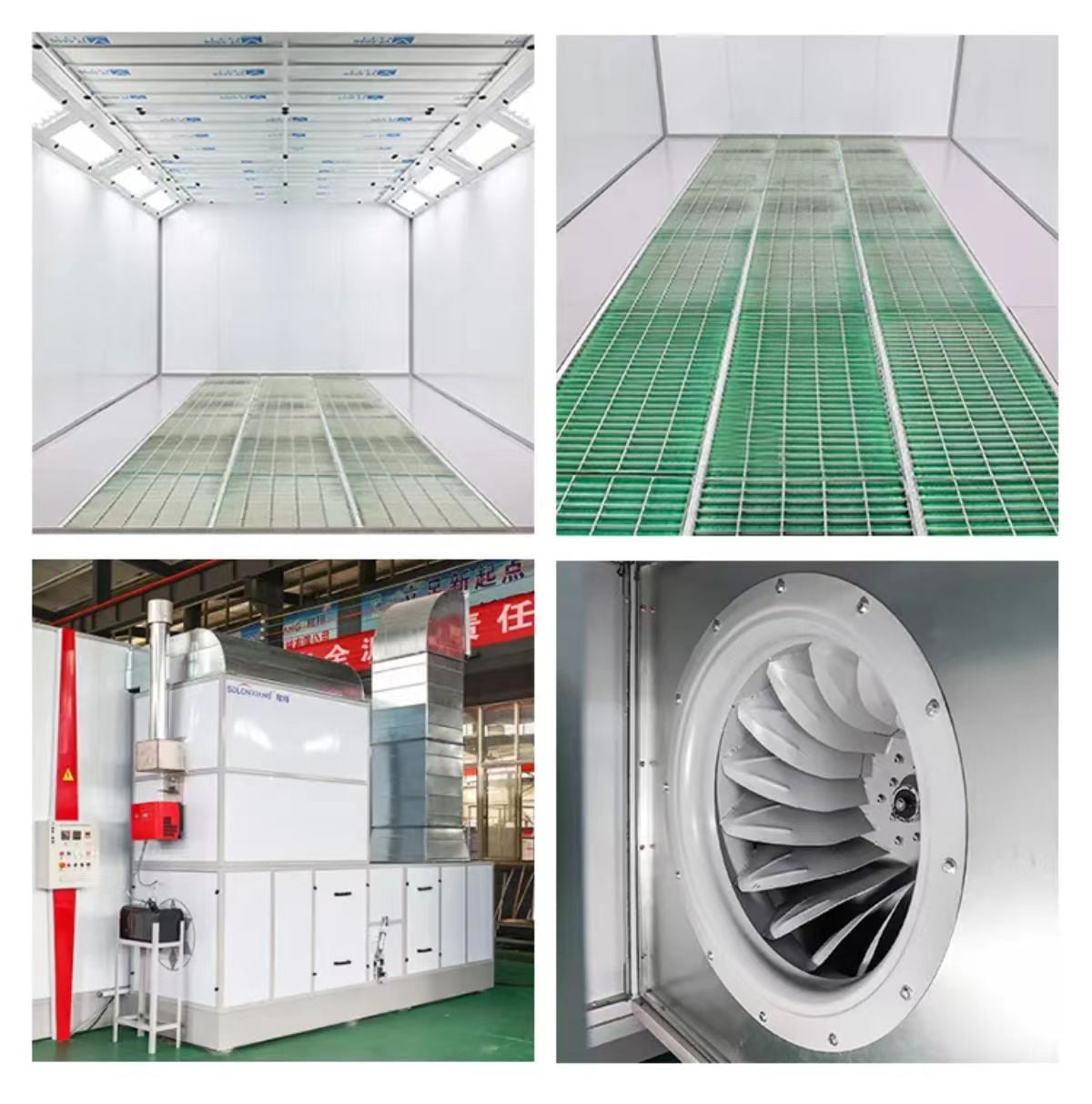

Inlet fan

1*7.5KW turbo fan,air capacity:28000m³/h,direct drive

Outlet fan

1*7.5KW turbo fan,air capacity:28000m³/h,direct drive

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame,strong and beautiful .910mm height Air duct*2

units.Elbow:90*1 unit

Burner

Italy RIELLO G20 oil burner,heating capacity:

180000Kcal/h,heating time:6-8 min(20-60℃),fuel

consumption is 5-8kg/vehicle.with pneumatic damper

Heat Exchanger

1.2mm thickness SUS304 stainless steel

Cabinet

Rock wool interlayer,thermal insulation,flame retardant

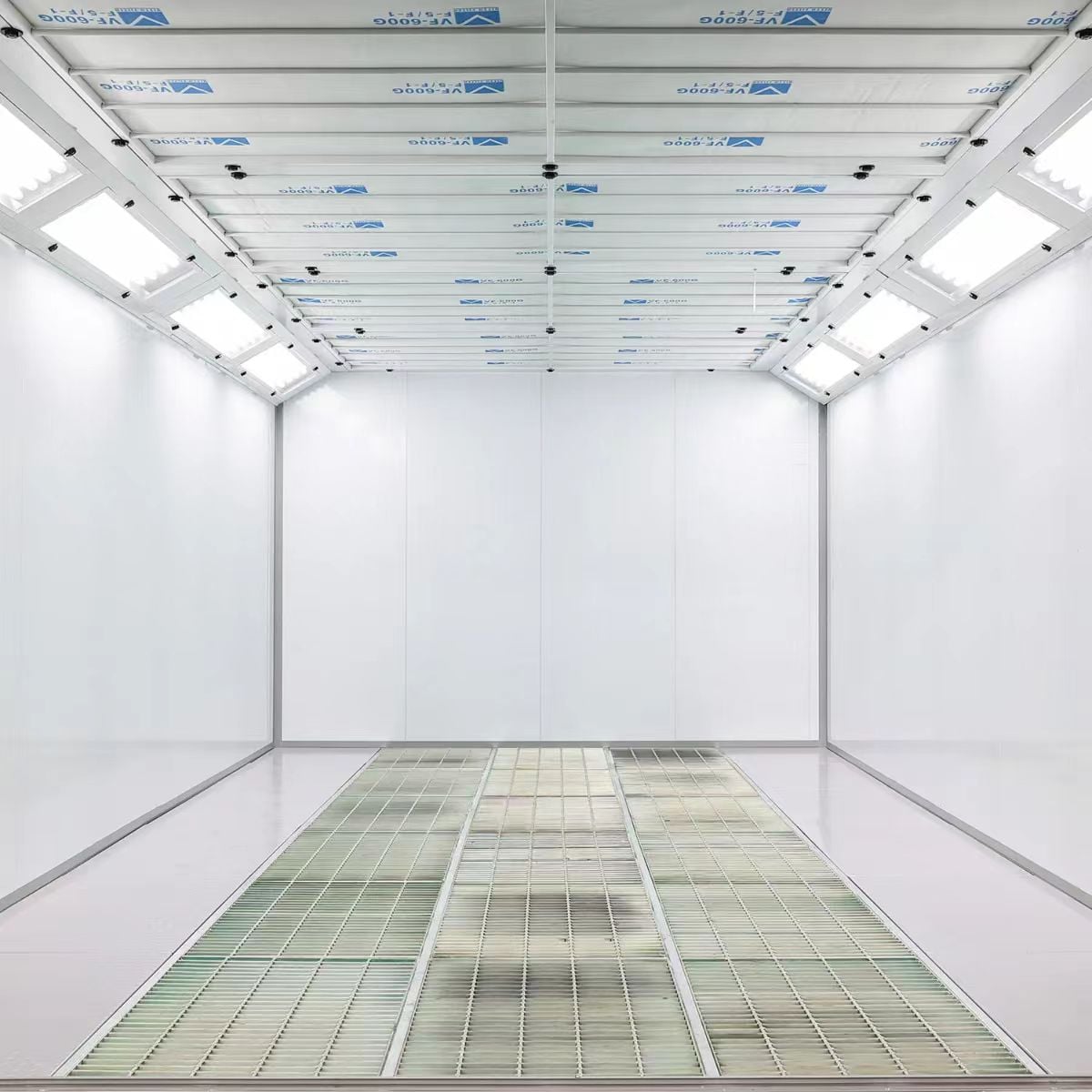

Ceiling lights

8*4pcs*16w LED lighting

Side lights

Optional

Primary filter

Grade G2 plate type,filtering rate>83%

Ceiling filter

EU5 grade high efficient filter,filtering rate>98%

Floor filter

Multi-layer fiberglass filter,filtering rate>70%

Control panel

Intelligent control system

Function

Painting,risen-temperature painting,baking,time

setting,lighting,failure indication,thermostatic switch, power switch,emergency stop

Voltage/Frequency

380V,50HZ,3 phase

Total power

16.5KW
