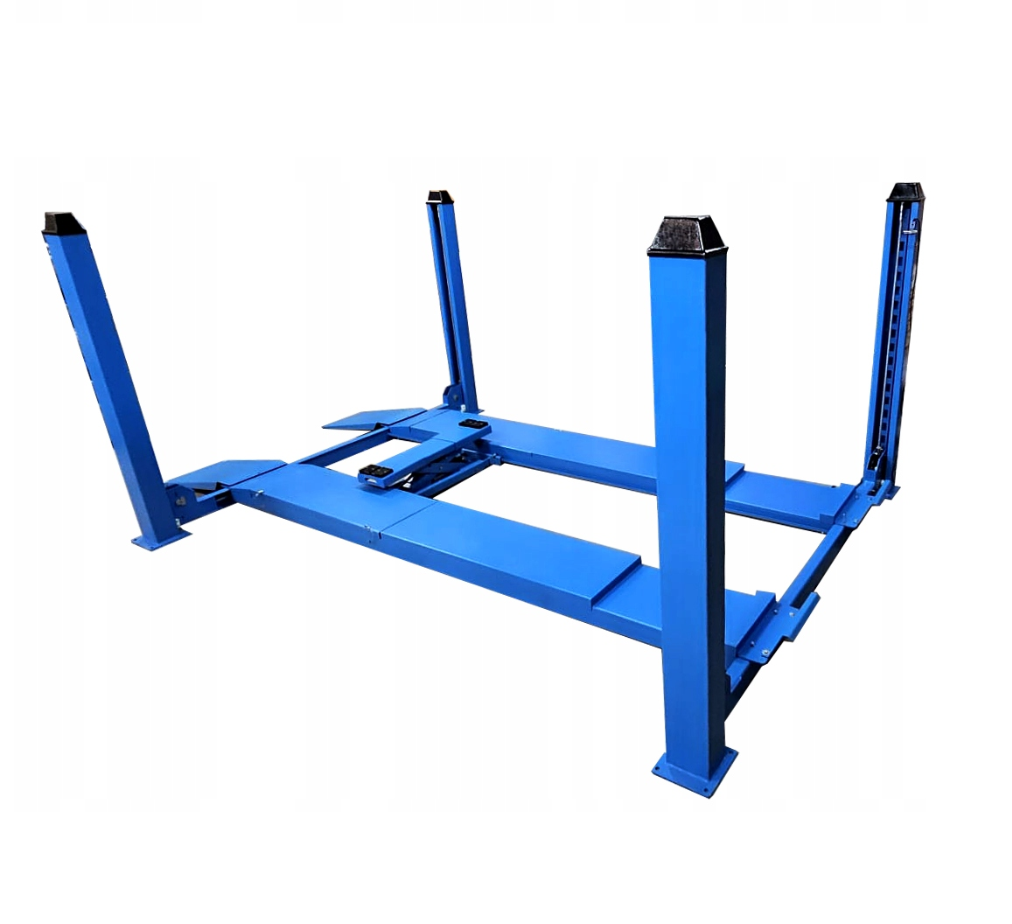

4 Ton (9,000 LBS) Capacity Four-Post Alignment Lift

The CAV FP3535 and FP4040 Four-Post Alignment Lifts are professional-grade lifting solutions engineered specifically for workshops that demand precision, stability, and robust safety in their daily operations. With a generous 4 Ton (9,000 lbs) lifting capacity, these four-post lifts handle a broad spectrum of vehicles, from standard passenger cars and SUVs to vans and minibuses. CAV offers these lifts in two platform length configurations—the FP3535 with a 4200mm runway and the FP4040 with a 4600mm runway—giving shop owners the flexibility to choose the model that best fits their available space and the typical vehicle mix they service.

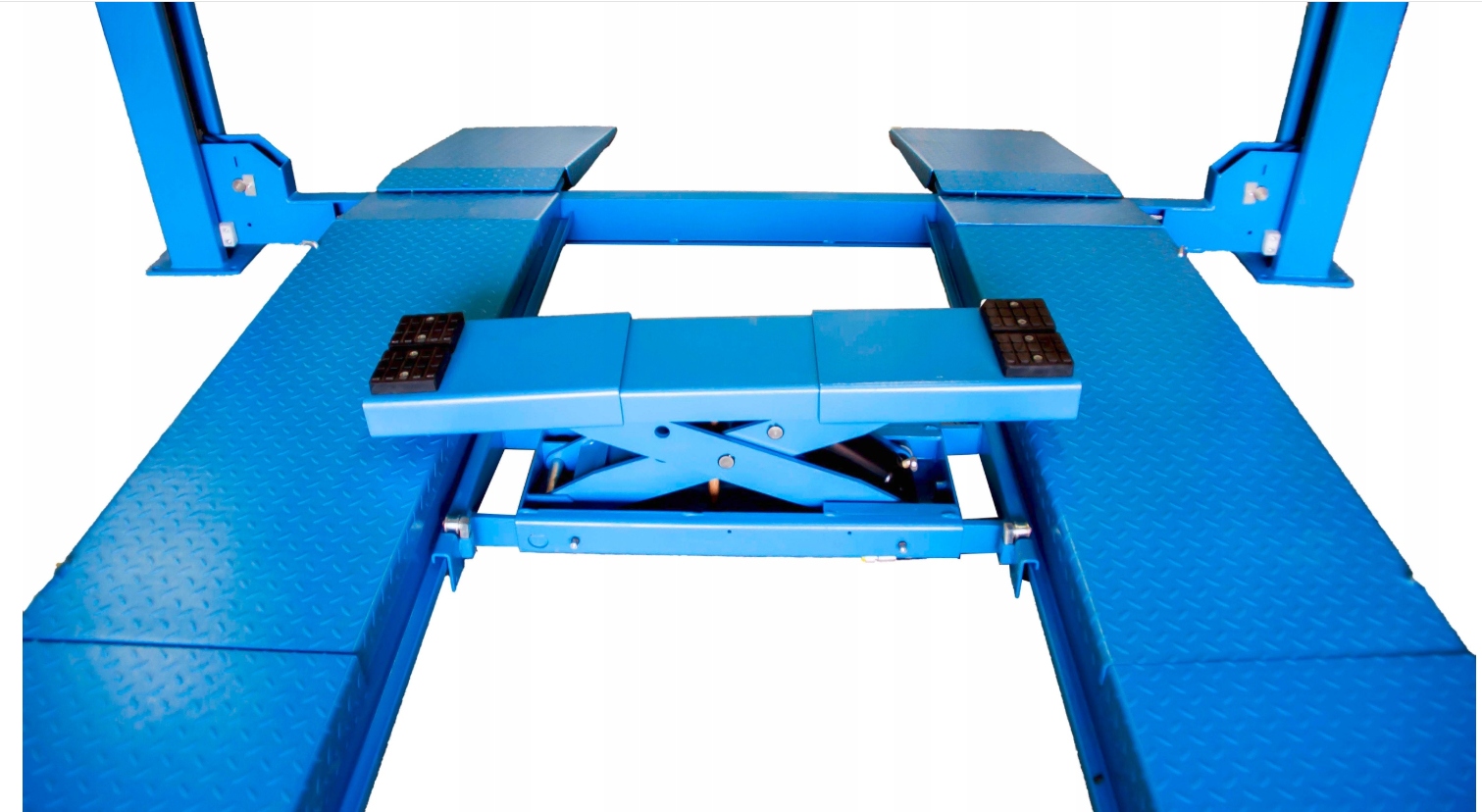

What truly distinguishes this four-post alignment lift from standard hoists is its integrated alignment capability. The rear slip plates and front turning plate sections are factory-installed, allowing the lift to function as a dedicated wheel alignment platform without the need for additional accessories or adapters. This built-in functionality makes it an invaluable tool for tire and alignment specialists. The lift operates through a dependable chain and hydraulic cylinder system, powered by a 2.2kW motor that delivers smooth and controlled lifting to a maximum height of 1750mm. The single-point manual safety lock release provides the operator with straightforward control over the lowering process, making the lift easy to use even for technicians who are new to four-post equipment. A jacking beam is also included as standard, further expanding the lift's utility by enabling wheel and tire removal at height, which significantly speeds up brake and suspension work.

Safety is where the CAV four-post lift truly excels. CAV has integrated multiple independent protection mechanisms to create a secure working environment. The vehicle rollback protection feature consists of physical stops at the end of each runway, keeping vehicles safely positioned during the entire lifting cycle. The automatic steel cable failure protection system is designed to engage instantly if a cable issue occurs, locking the platform in place and halting any sudden descent. Hydraulic failure safety devices serve as an additional layer of security, ensuring that even in the unlikely event of hydraulic pressure loss, the lift will not drop rapidly. The foot protection feature adds a thoughtful touch, shielding the operator's feet from potential pinch points during lowering. Together, these systems provide a level of safety that gives technicians full confidence when working beneath a raised vehicle.

Product highlights

Integrated Wheel Alignment Components

The inclusion of rear slip plates and front turning plate sections sets the CAV four-post lift apart from conventional hoists. These components are not aftermarket add-ons; they are built into the lift's design from the factory. The turning plates allow the front wheels to pivot freely during alignment adjustments, while the slip plates enable the rear wheels to move laterally as the vehicle's tracking is corrected. This combination provides the precise movement required for accurate alignment readings. For workshops that perform multiple alignment jobs each day, having these components integrated into the lift eliminates the need for a separate alignment rack or portable turn plates, saving both floor space and setup time.

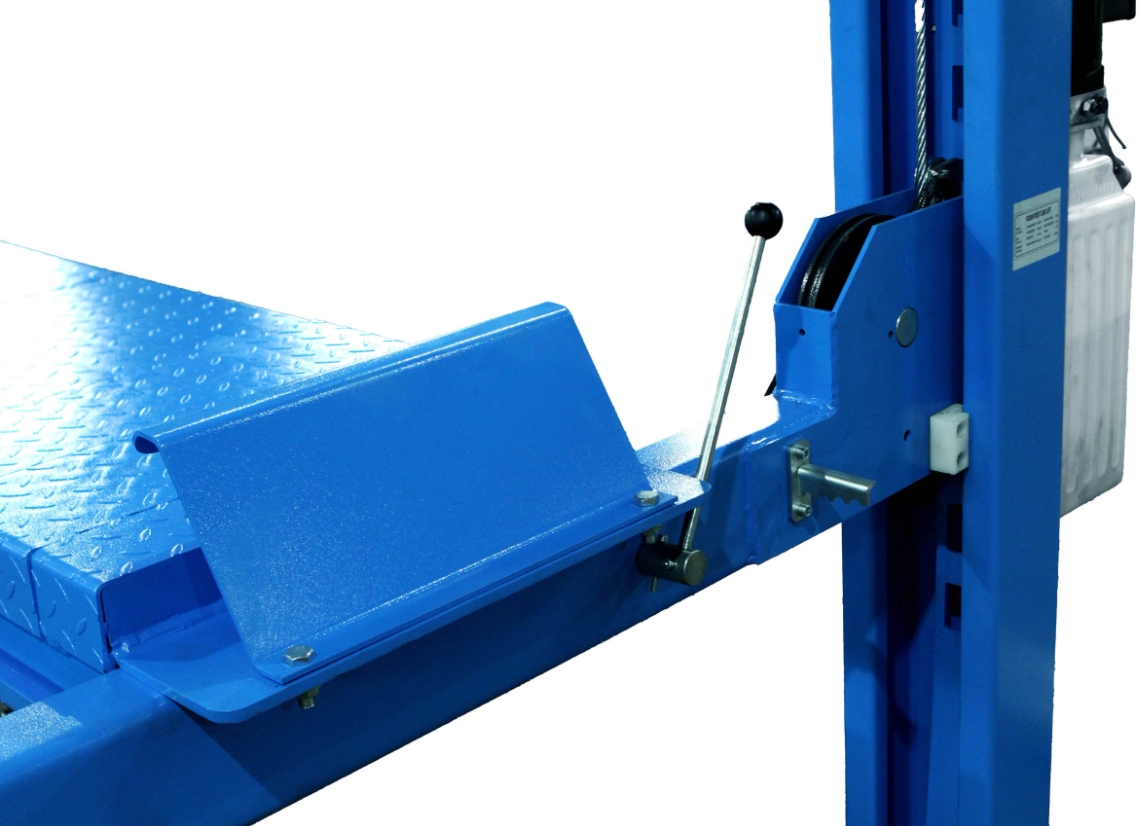

Single-Point Manual Safety Lock Release

The single-point manual safety lock release is a feature that combines simplicity with reliability. Instead of requiring the operator to release locks at multiple corners of the lift, the system centralizes the release mechanism into one easy-to-reach location. This design reduces the complexity of the lowering procedure and allows the technician to maintain full control of the descent with one hand while keeping an eye on the vehicle and surrounding area. The manual nature of the release gives a tactile sense of engagement, so the operator always knows exactly where the locks are and when they are fully disengaged.

Multi-Layer Safety Protection System

CAV has equipped this lift with a comprehensive safety package that addresses multiple potential failure scenarios. The vehicle rollback protection consists of sturdy stops at the runway ends, a simple but highly effective measure against accidental vehicle movement. The automatic steel cable failure protection is engineered to activate the moment cable tension is lost, mechanically locking the platform to avoid a free-fall situation. Hydraulic failure safety devices ensure that the lift retains its position even if the hydraulic system loses pressure. The foot protection feature is a thoughtful ergonomic addition that keeps the operator's feet clear of the scissor mechanism during the final stage of lowering, reducing the risk of injury. This layered approach to safety demonstrates CAV's commitment to protecting both technicians and vehicles.

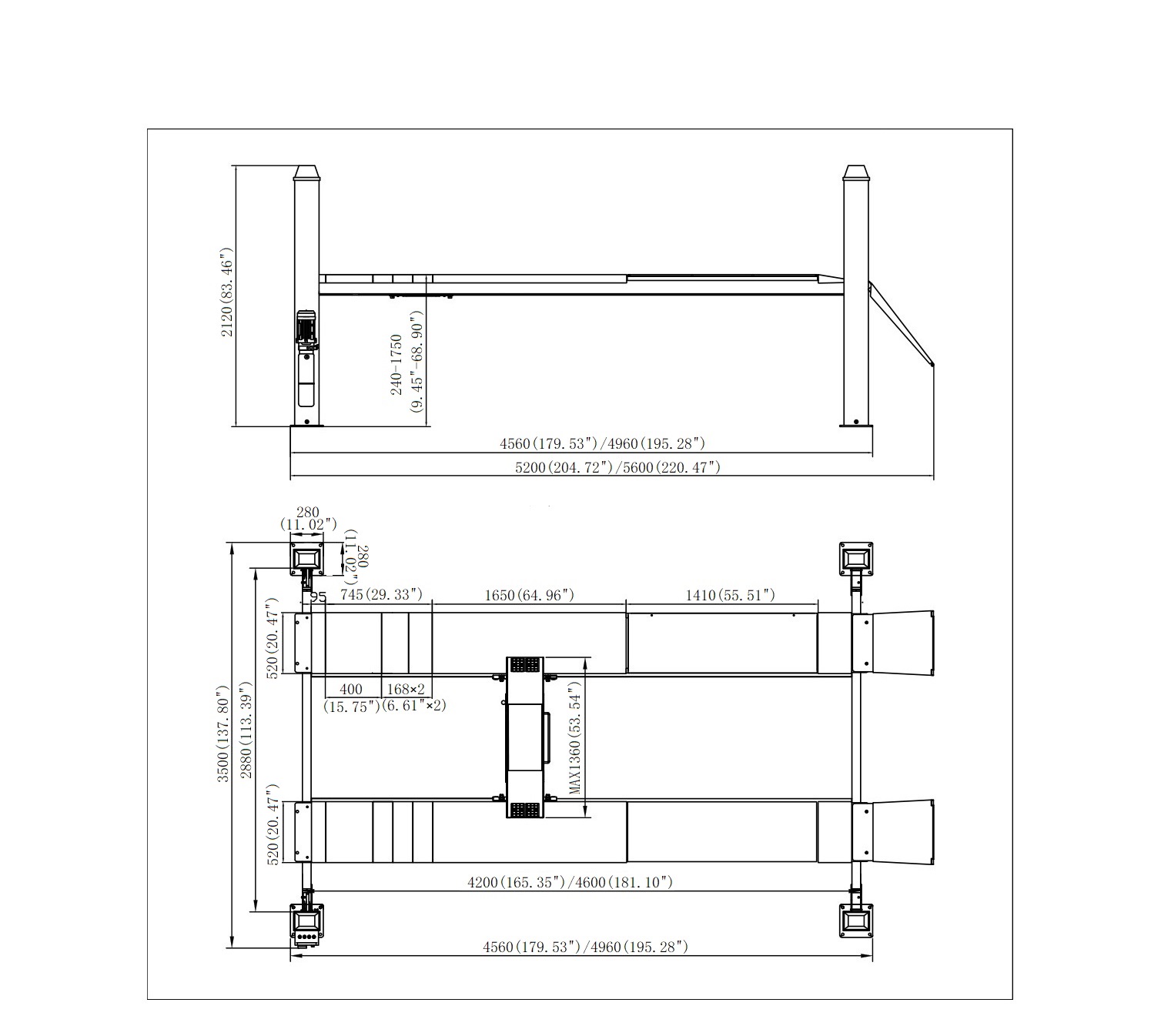

Two Platform Length Options

CAV offers the FP3535 and FP4040 models to accommodate different workshop needs. The FP3535 features 4200mm runways, making it an excellent fit for shops that primarily service standard passenger cars and smaller SUVs. The FP4040 extends the runways to 4600mm, providing extra length for longer vehicles such as full-size vans, minibuses, and larger luxury sedans. Both models share the same 520mm runway width and overall dimensions, meaning the choice comes down to the typical vehicle lengths seen in the shop. This flexibility ensures that buyers select the exact configuration that matches their operational requirements.
