Automatic Tire Changer 12"-26",Tilt Back Tower

The CAV 1226S automatic tire changer with tilt-back tower is CAV solution for workshops that regularly handle larger wheels but still want the convenience and speed of an automatic machine. CAV knows that when you are working on SUV, light truck, or commercial vehicle tyres, the wheels are heavier, the sidewalls are stiffer, and the tower on a standard tire changer can get in the way more than ever. That is why CAV combined the larger clamping range of the 1226 series with the tilt-back tower design.

The tilt-back feature is what sets this tire changing machine apart. With a simple operation, the entire tower assembly tilts backwards, moving the vertical post and tool head completely out of the working area. That gives you full, unobstructed access to the wheel from any angle. You can approach the tyre from the side, reach over the top, or position yourself exactly where you need to be. On larger wheels, where tyre sidewalls are thicker and the tyre itself is heavier, that unrestricted access makes a significant difference to both speed and technician comfort.

Operating the CAV 1226S is straightforward. The foot-pedal controls give you hands-free operation of the turntable and tool arm, so your hands stay on the tyre where they need to be. The automatic bead breaker delivers 2500kg of force, which handles stubborn beads on older tyres, corroded rims, and stiff commercial sidewalls with confidence. Once the bead is broken, the tilt-back tower gives you all the room you need to mount or dismount the tyre smoothly. The multi-angle duckhead tool is designed to protect rims from damage, which is especially important when working with expensive alloy or performance wheels on larger vehicles.

The clamping range on this automatic tire changer covers external sizes from 12" to 24" and internal sizes from 14" to 26". That means you can service everything from large passenger car wheels through to light truck and commercial vehicle tyres on the same machine. Maximum wheel diameter is 1040mm (41 inches), and maximum width is 330mm (13 inches). This range covers the vast majority of SUVs, 4x4s, light trucks, and commercial vehicles on the road today. Power options range from 0.55kW to 1.1kW, with configurations available for 110V, 220V, or 380V supplies. The CAV 1226S automatic tire changer runs at under 70dB, keeping your workshop environment comfortable, and air supply requirements are 8 to 10 bar, which is standard for most workshop compressors.

Product highlights

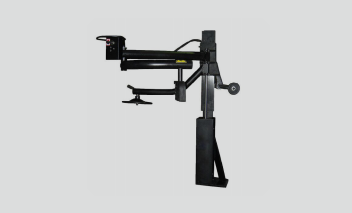

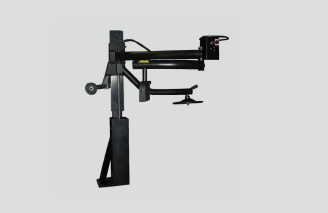

Tilt-Back Tower Design – This is the signature feature of the CAV 1226S automatic tire changer. The tower tilts backwards to give you unrestricted access to the wheel from any angle. No more leaning awkwardly around the vertical post or struggling to position the tool in tight spaces. On larger wheels, where the tyre is heavier and the sidewall is stiffer, this access becomes even more valuable. The tilt-back mechanism is smooth and reliable, engineered for daily use in busy workshops that handle commercial and SUV tyres.

Wide Clamping Range – 12" to 26" – This tire changing machine covers an extended range of wheel sizes. External clamping goes from 12" to 24", and internal clamping covers 14" to 26". That means you can service everything from large passenger car wheels through to SUV, 4x4, and light truck tyres on the same automatic tire changer. The adjustable clamping jaws adapt quickly, so you are not wasting time between different wheel types.

Powerful 2500kg Automatic Bead Breaker – The bead breaker on the CAV 1226S delivers 2500kg of force, making short work of stubborn beads on commercial tyres, corroded rims, and low-profile performance tyres. The bead breaker operates automatically, giving you consistent, reliable performance that reduces physical strain on your technicians, especially when handling heavier commercial wheels.

Foot-Operated Pedal Controls – The foot pedal system gives you total hands-free control over the turntable rotation and the tool arm. That is a significant safety and efficiency feature. You can rotate the wheel, position the tool, and guide the tyre all without taking your hands off the job. In a busy tyre shop handling larger wheels, that speed advantage adds up over the course of a day.

Multi-Angle Duckhead Tool – The CAV 1226S tire changer comes with a duckhead tool designed to protect expensive wheels from scratches and damage. The multi-angle head gives you the flexibility to approach the tyre from the optimal position, reducing effort and minimising the risk of marking the rim. This is especially important when working with alloy wheels, powder-coated rims, or high-end performance wheels on SUVs and sports vehicles.

Heavy-Gauge Steel Frame Construction – The CAV 1226S is built with a robust steel frame and a reinforced tower that takes the stress of daily tyre work on larger commercial wheels. This automatic tire changer stays solid and stable even when you are applying significant force to break stubborn beads on heavy-duty tyres. CAV has focused on structural integrity to give you a machine that handles the rigours of a busy workshop.

Low Noise Operation – Below 70dB – At under 70 decibels, this automatic tire changer is quieter than many competitors. That makes a real difference in a busy workshop where constant equipment noise can be draining. Your technicians will appreciate the quieter working environment, especially during long shifts.

Broad Wheel Compatibility – This tire changing machine handles steel, alloy, and performance wheels, including low-profile and run-flat tyres. That versatility means you can use the CAV 1226S across your entire service range, from passenger cars through to light trucks, without needing a separate machine for different wheel types.

Integrated Tool Tray – The built-in tray keeps your tyre tools, valve stems, and accessories organised and within reach. It is a simple touch, but it keeps your workspace tidy and saves you walking back and forth to the tool bench.

Flexible Power Supply Options – CAV offers this tire changer with motor ratings of 0.55kW, 0.75kW, or 1.1kW to suit your local power supply. Choose from 110V, 220V, or 380V configurations – the CAV 1226S adapts to your workshop infrastructure.
