Handheld meson machine

The Handheld Meson Machine is a portable spot welding system that provides professional-grade welding capability for automotive body repair and sheet metal applications. Cavalry recognizes that body shops need welding equipment that delivers consistent results while offering the portability to work in different locations around the vehicle. This handheld meson machine addresses those requirements through compact design, reliable power output, and rapid welding cycles.

The meson welding process, also known as capacitor discharge welding, operates on the principle of stored electrical energy released in a controlled pulse. This approach is particularly effective for automotive body work because it delivers high current in a very short duration. The short discharge time means heat is highly concentrated at the weld point, minimizing heat spread to surrounding metal. This characteristic makes meson welding ideal for tasks like stud welding and spot welding on thin sheet metal where excessive heat could cause warping or burn-through.

The 800A output current at 4V provides sufficient energy for effective spot welding on automotive sheet metal and panel work. The 800VA rated power supports consistent performance across varied welding applications. The rapid welding time of 0.5 seconds or less ensures efficient workflow, allowing technicians to complete multiple welds quickly without compromising quality.

Operating on 220V with 50/60Hz frequency, this handheld meson machine is compatible with standard workshop electrical configurations. The compact dimensions of 620×210×360mm make the unit easy to maneuver around vehicles, reducing the need to reposition vehicles for welding access. The handheld design allows technicians to bring the welding capability directly to the work area, improving workflow efficiency.

The meson welding process is widely used in the automotive industry for its ability to produce high-strength joints with minimal thermal distortion. The localized heat application reduces the risk of paint damage or distortion on surrounding panels, making it particularly valuable for repair work where finished surfaces are present. The portable configuration of this handheld meson machine supports both shop and mobile repair applications.

Product highlights

800A Output Current for Effective Welding
The handheld meson machine delivers 800A output current for effective spot welding on automotive sheet metal and panel work. This output level provides sufficient energy for strong, consistent welds across various materials and thicknesses. The reliable current delivery supports professional welding results.

4V Output Voltage for Controlled Welding
The 4V output voltage provides controlled welding energy for precise spot welding applications. The lower voltage combined with high current delivers concentrated heat at the weld point for strong joints with minimal heat spread. This voltage configuration supports quality welding results on automotive body panels.

Rapid Welding Time of 0.5 Seconds or Less
The welding time of 0.5 seconds or less ensures efficient workflow in busy workshop environments. This rapid cycle allows technicians to complete multiple welds quickly without compromising quality. The short welding time also reduces the risk of heat spread to surrounding metal.

800VA Rated Power for Consistent Performance
The 800VA rated power supports consistent performance across varied welding applications. This power rating provides adequate energy for spot welding on automotive sheet metal while maintaining energy efficiency. The reliable power delivery supports professional workshop applications.

220V Operation with 50/60Hz Frequency
Operating on 220V with 50/60Hz frequency, this handheld meson machine is compatible with standard workshop electrical configurations. The broad frequency compatibility supports consistent performance across different regions with varied power standards. The voltage and frequency specifications reduce the need for special power supply modifications.

Compact Dimensions for Portability
With dimensions of 620×210×360mm, the handheld meson machine is easy to maneuver around vehicles. The compact size allows technicians to bring the welding capability directly to the work area. The portable design reduces the need to reposition vehicles for welding access.

Handheld Design for Versatile Access
The handheld configuration allows access to welding locations that would be difficult with larger, stationary equipment. Technicians can position the unit for optimal access to panels, rocker panels, and other welding locations. The handheld design supports both workshop and mobile repair applications.

Capacitor Discharge Technology for Quality Welds
The meson welding process uses capacitor discharge technology that delivers high current in a very short duration. This approach concentrates heat at the weld point, minimizing heat spread and reducing the risk of distortion or burn-through. The technology supports professional welding results on thin sheet metal.

Durable Construction for Workshop Use
The handheld meson machine is built for professional workshop environments where equipment sees regular daily use. Durable components support long-term reliability. The construction withstands the demands of busy body shops and collision centers.

Model	Image	Technical Parameter	Functional Features

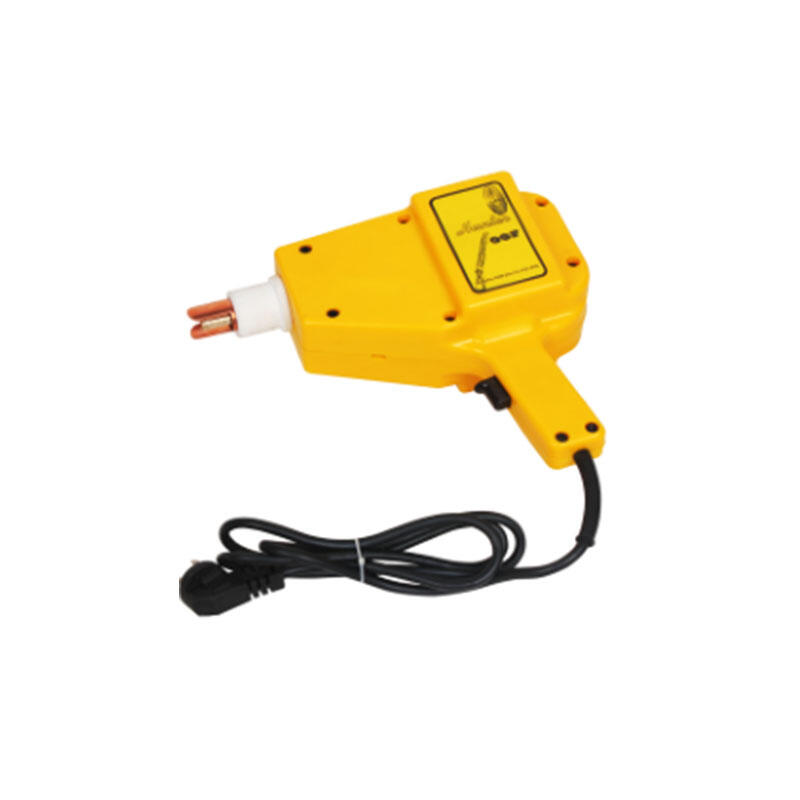

H-007		Input voltage: 220V Frequency: 50/60Hz Rated power: 800VA Output current: 800A Output voltage: 4V Welding time: ≤ 0.5S Size:620*210*360MM Weight:13KG	1. Improve efficiency and save work time 2. Lightweight appearance, compact design, reducing labor intensity 3. Energy saving, with electricity costs less than 10% of traditional repair machines 4. Can weld round gaskets, irregular gaskets, wavy lines, and welding nails 5. Key operation, multiple gears, preset expert data

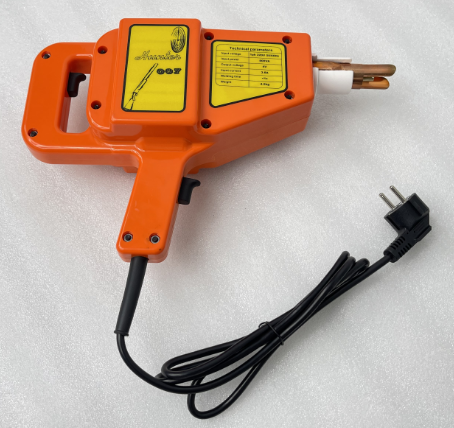

H-007B		Input voltage: 220V Frequency: 50/60Hz Rated power: 800VA Output current: 800A Output voltage: 4V Welding time: ≤ 0.5S Size:620*210*360MM Weight:12KG	1. Improve efficiency and save work time 2. Lightweight appearance, compact design, reducing labor intensity 3. Energy saving, with electricity costs less than 10% of traditional repair machines 4. Can weld round gaskets, irregular gaskets, wavy lines, and welding nails 5. Key operation, multiple gears, preset expert data

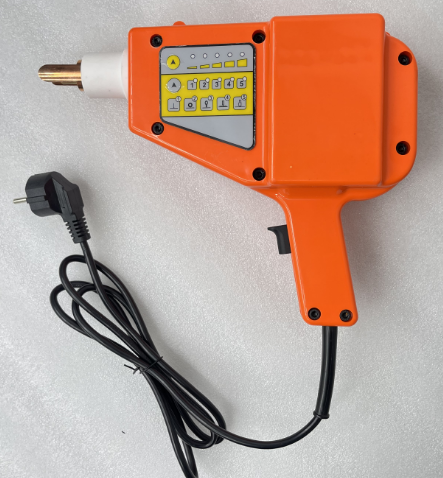

H-007C		Input voltage: 220V Frequency: 50/60Hz Rated power: 800VA Output current: 800A Output voltage: 4V Welding time: ≤ 0.5S Size:620*210*360MM Weight:11KG	1. Improve efficiency and save work time 2. Lightweight appearance, compact design, reducing labor intensity 3. Energy saving, with electricity costs less than 10% of traditional repair machines 4. Can weld round gaskets, irregular gaskets, wavy lines, and welding nails 5. Infinite adjustment
