Multi functional infrared baking lamp

The Multi Functional Infrared Baking Lamp provides professional-grade heating capability for automotive workshops, combining efficient infrared technology with practical design features. Cavalry recognizes that body shops need versatile heating equipment that adapts to different tasks and workpieces. This infrared baking lamp addresses those requirements through adjustable height, controllable temperature, and robust construction.

Infrared heating technology offers distinct advantages for automotive paint and drying applications. Unlike conventional hot air systems, short-wave infrared penetrates coatings directly, heating from the substrate outward rather than just warming the surface. This approach drives moisture and solvents out from the bottom, reducing the risk of bubbles or surface defects that can compromise finish quality. The heating process accelerates the molecular reaction in paints and primers, achieving effective curing times of approximately 15 minutes for two-component paints and 5 minutes for fillers. This efficiency helps workshops maintain throughput without compromising quality.

The adjustable height range of 0.2 to 1.6 meters provides flexibility for different workpieces and applications. Technicians can position the lamp at optimal distances for tasks ranging from small component drying to full vehicle panel curing. The 8.3A working current and 220V input make this multi functional infrared baking lamp compatible with standard workshop electrical configurations.

The output temperature range of 40-100°C allows technicians to select appropriate heat levels for different materials and applications. Lower temperatures suit sensitive materials or gentle drying, while higher temperatures accelerate curing for paints and primers. This temperature flexibility supports everything from preheating surfaces before painting to rapid curing of touch-up work.

Infrared radiation effectively accelerates surface evaporation and drying. The heat is readily absorbed by most materials, making it suitable for fast heating and drying across various workshop applications. The design of this infrared baking lamp supports long-term reliability, with components built for frequent use in professional environments where consistent performance matters.

Product highlights

Adjustable Height from 0.2 to 1.6 Meters
The height adjustment range of 0.2 to 1.6 meters provides flexibility for different workpieces and applications. Technicians can position the lamp at optimal distances for tasks ranging from small component drying to full vehicle panel curing. This adjustability supports ergonomic working positions and consistent heating results.

Multi Functional Infrared Technology
Infrared radiation is readily absorbed by most materials, providing fast, even heating for various workshop applications. The heating process accelerates surface evaporation and drying, making this infrared baking lamp suitable for paint curing, putty drying, preheating, and more. The technology delivers rapid temperature rise for efficient workflow.

Adjustable Output Temperature from 40-100°C
The output temperature range of 40-100°C allows technicians to select appropriate heat levels for different materials and applications. Lower temperatures suit sensitive materials or gentle drying, while higher temperatures accelerate curing for paints and primers. The temperature flexibility supports varied workshop requirements.

220V Operation with 8.3A Working Current
The 220V input and 8.3A working current make this infrared baking lamp compatible with standard workshop electrical configurations. The power specifications support consistent heating performance while maintaining energy efficiency. The electrical design reduces the need for special wiring or power supply modifications.

Infrared Penetration for Superior Finish Quality
Short-wave infrared penetrates coatings directly, heating from the substrate outward. This approach drives moisture and solvents out from the bottom, reducing the risk of bubbles or surface defects that can compromise finish quality. The result is a smoother surface with enhanced gloss and paint adhesion.

Efficient Heating for Workshop Productivity
Infrared heating delivers rapid, targeted heating that reduces drying and curing times compared to conventional methods. For two-component paints, effective curing can be achieved in approximately 15 minutes, while fillers may cure in about 5 minutes. This efficiency helps workshops maintain throughput without compromising quality.

Robust Construction for Professional Use
The multi functional infrared baking lamp is built for professional workshop environments where equipment sees regular daily use. Durable materials and quality components support long-term reliability. The construction withstands the demands of busy body shops and collision centers.

Versatile Application Compatibility
This infrared baking lamp supports various workshop applications including paint curing, putty drying, surface preheating, and general drying tasks. The adjustable height and temperature settings accommodate different workpieces and materials. The versatility makes it suitable for body shops, collision centers, and specialty finishing operations.

Practical Design for Workshop Integration
The height adjustment range supports different vehicle types and work positions. The lamp design facilitates positioning for panel work, component drying, and other tasks. The practical features support efficient workflow without requiring dedicated space.

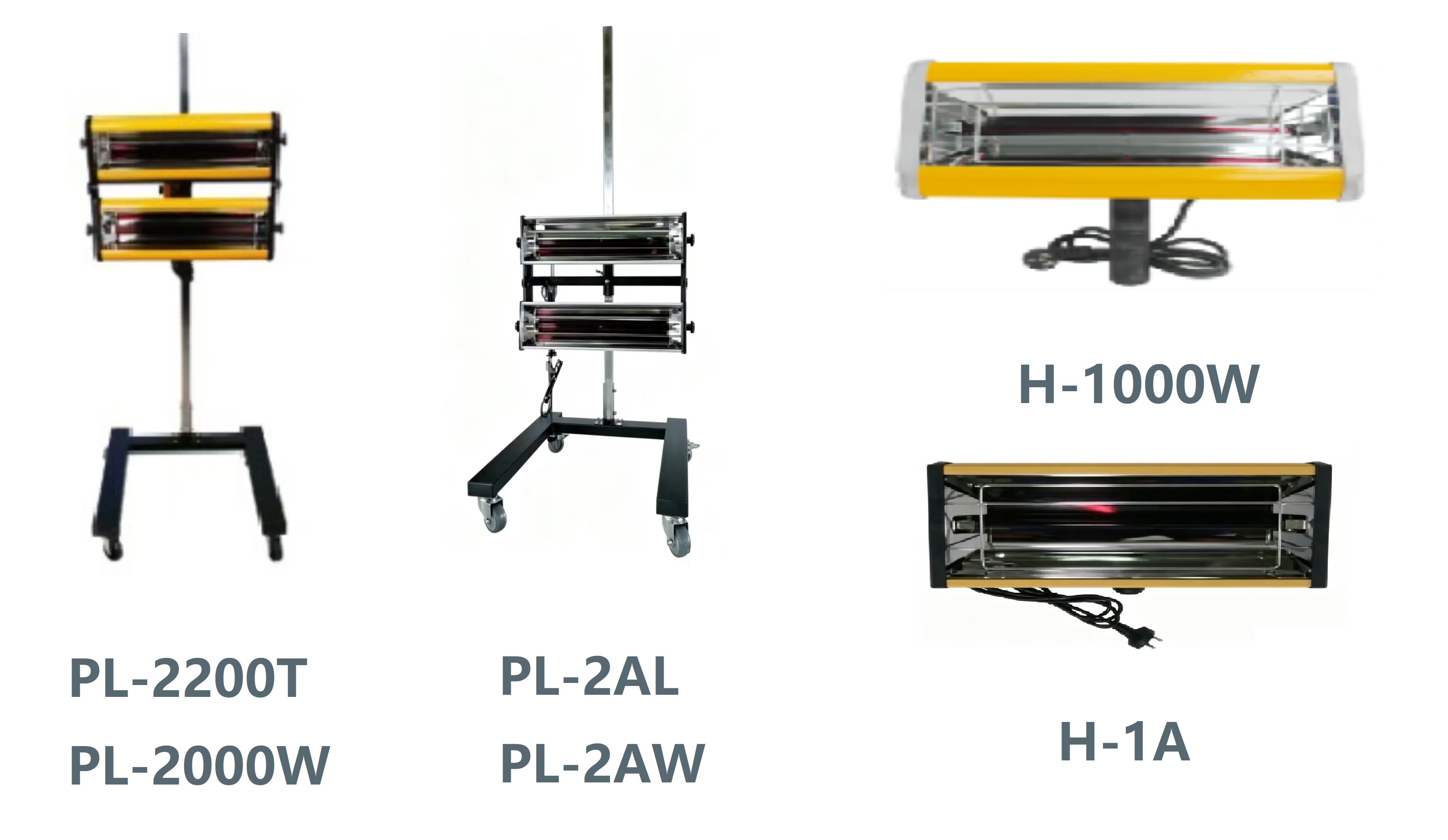

Name	Model	Image	Technical Parameter	Functional Features
Multi functional infrared baking lamp ※	PL-2200T		Input voltage: 220V Rated power: 2000W Height adjustment: 0.2-1.6m Working current: 8.3A Output temperature: 40-100 ℃ Timer function: 0.1-99 minutes Working distance: 0.5-0.7m Lamp length: 52cm Packaging size:730*650*250MM Weight: 20KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Equipped with fully automatic safety overload protection function 4. The control system can independently control each group of lights, which can quickly heat up without damaging the paint surface 5. Button operation
Multi functional infrared baking lamp ※	PL-2000W		Input voltage: 220V Rated power: 2000W Height adjustment: 0.2-1.6m Working current: 8.3A Output temperature: 40-100 ℃ Timer function: 0.1-30min Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 730*650*250MM Weight: 20KG	1. Made of aluminum alloy material, mirror 304 stainless steel reflector, and other special materials 2. Choose explosion-proof short wave infrared lamps 3. Equipped with fully automatic safety overload protection function 4. The control system can independently control each group of lights, which can quickly heat up without damaging the paint surface

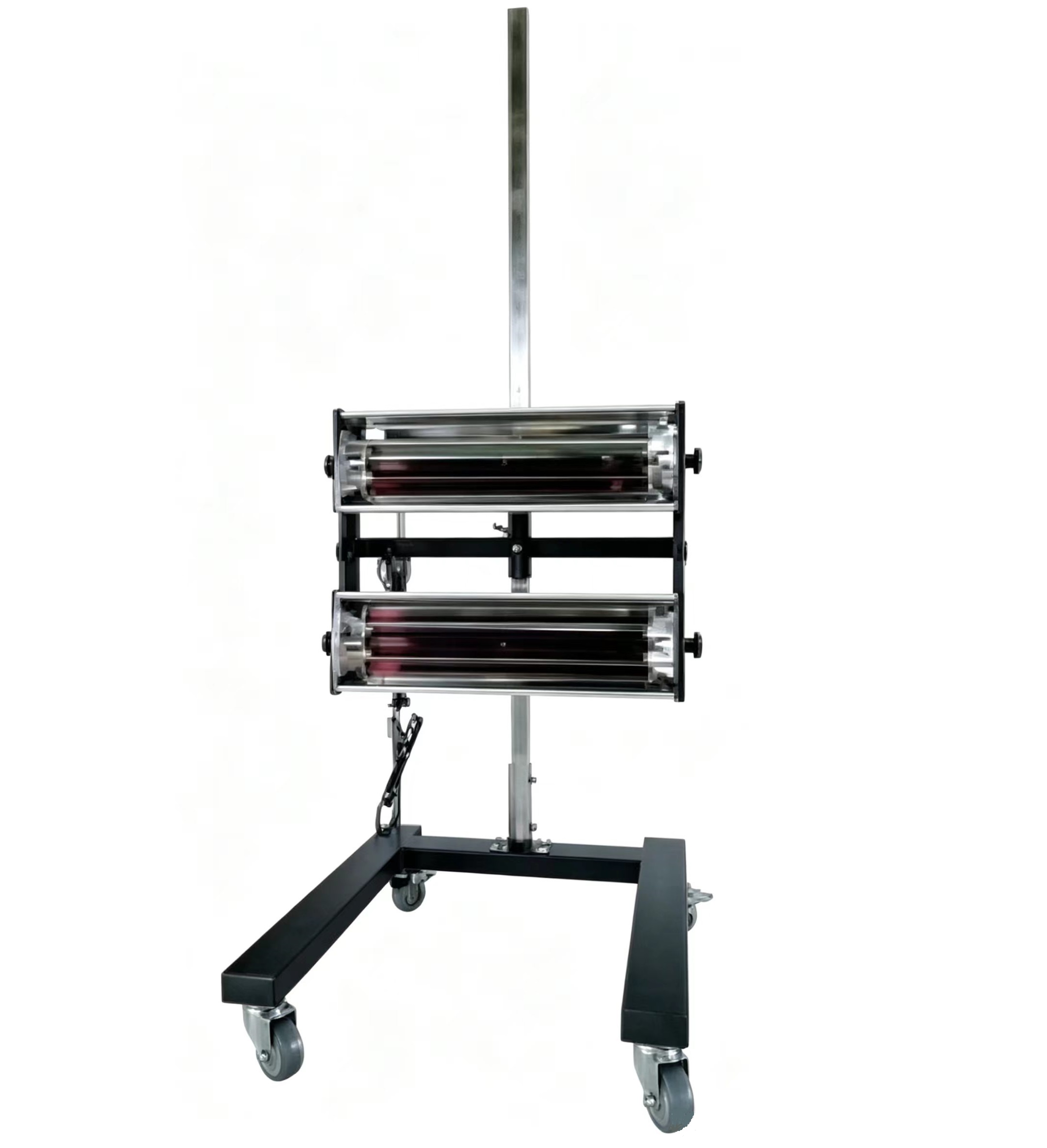

Multi functional infrared baking lamp	PL-2AL		Input voltage: 220V Rated power: 2400W Height adjustment: 0.2-1.6m Working current: 8.3A Output temperature: 40-100 ℃ Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 730*650*250MM Weight: 20KG	1. Made of sturdy and durable stainless steel columns, 304 stainless steel reflective plates, and other special materials 2. High quality silent universal wheels 3. Single lamp head with independent power supply 4. The lamp head can rotate 360 °
Multi functional infrared baking lamp	PL-2AW		Input voltage: 220V Rated power: 2000W Height adjustment: 0.2-1.6m Working current: 8.3A Output temperature: 40-100 ℃ Timer function: 0.1-30min Temperature regulation function: infinite adjustment Working distance: 0.5-0.7m Lamp length: 52cm Packaging size: 730*650*250MM Weight: 20KG	1. Made of sturdy and durable stainless steel columns, 304 stainless steel reflective plates, and other special materials 2. High quality silent universal wheels 3. Equipped with a centralized control box 4. Temperature adjustable and timed 5. The lamp head can rotate 360 °

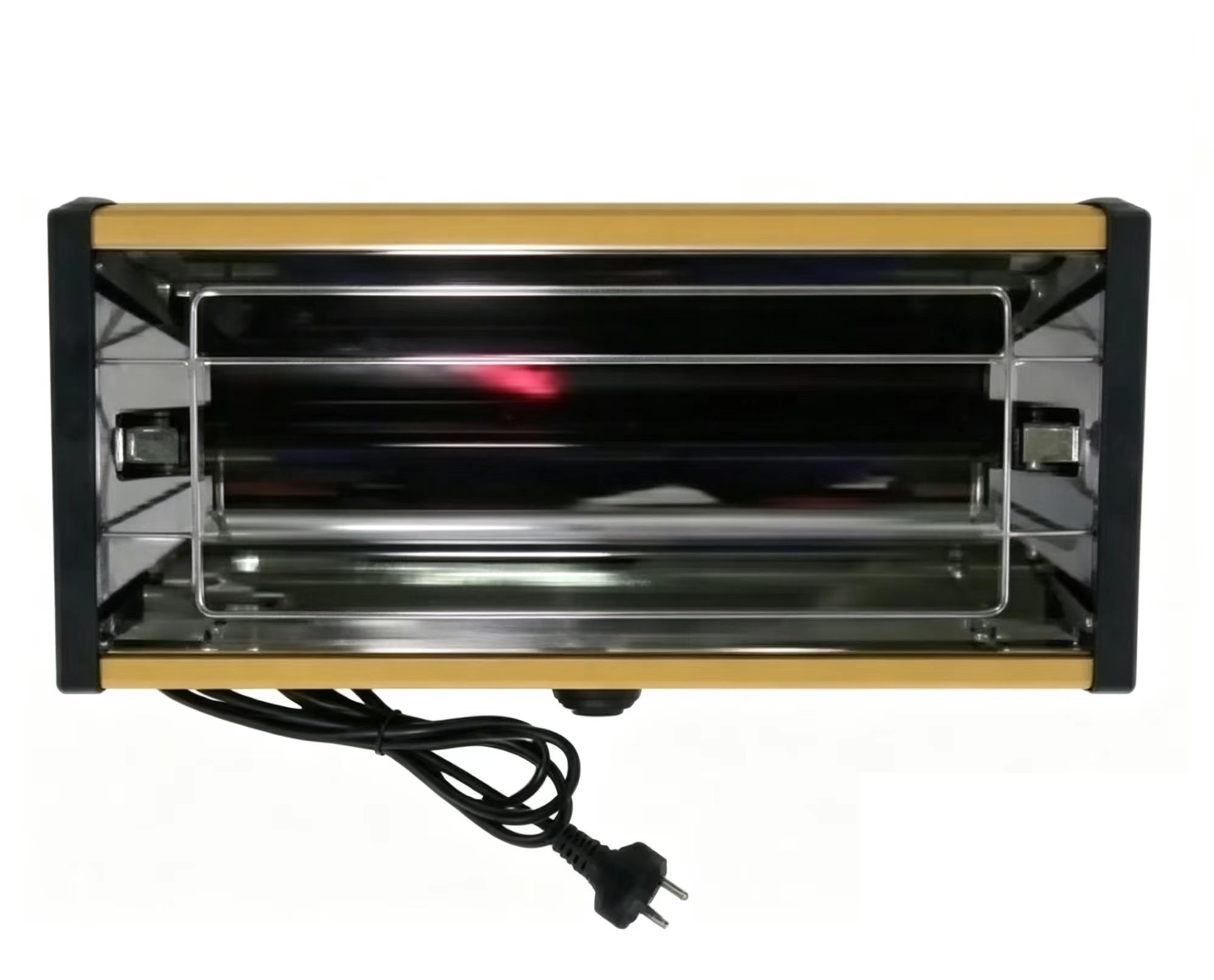

Handheld infrared baking lamp	H-1000W			1. Made of 304 stainless steel reflector and other special materials 2. It has a timing function 3. Using aluminum alloy for heat dissipation 4. Production of aluminum alloy profiles
Handheld infrared baking lamp	H-1A			1. Made of 304 stainless steel reflector and other special materials 2. It has a timing function
