Professional-level 2D wheel balancer

The CAV CB-530 professional-level 2D wheel balancer is CAV answer to the demands of modern workshops that need precision, speed, and advanced functionality. CAV knows that in a busy workshop, every second counts, and inaccurate wheel balancing can lead to customer complaints, premature tyre wear, and wasted time. That is why CAV developed the CB-530 with professional-grade features that streamline the balancing process and deliver consistent, reliable results.

The standout feature of the CAV CB-530 wheel balancing machine is its automatic distance and wheel diameter measuring capability. Instead of manually measuring wheel dimensions and entering data into the machine, the CAV CB-530 does it automatically. The sensors detect the wheel's distance and diameter, feeding that information directly into the balancing algorithm. This eliminates human error, speeds up the process, and ensures that every balance job starts with accurate data. The result is faster, more precise wheel balancing that reduces technician effort and improves throughput.

The CAV CB-530 tire balancing machine also features self-diagnosis and self-calibration functions. The machine checks its own performance and calibrates itself to maintain accuracy over time. This is a valuable feature for busy workshops where equipment is used continuously – the CAV CB-530 ensures consistent accuracy without requiring frequent manual calibration checks. The self-diagnosis function alerts technicians if there is any issue with the machine, helping to avoid inaccurate readings and minimise downtime.

The quick-release nut (Φ=36mm) on the CAV CB-530 professional wheel balancer is another time-saving feature. It allows technicians to mount and dismount wheels quickly without wrestling with slow or awkward fasteners. That speed advantage adds up over the course of a busy shift.

The CAV CB-530 handles rim diameters from 10" to 24" and rim widths from 1.5" to 16", with a maximum wheel weight of 65kg (143 pounds). Maximum wheel diameter is 960mm (38 inches), covering the vast majority of passenger cars, SUVs, and light trucks on the road. Balancing accuracy is ±1 gram with an 8-second measuring time at 200 rpm. The machine is available with motor power options of 0.25kW or 0.37kW, with configurations for 110V, 220V, or 380V power supplies. Noise level is under 70dB, keeping your workshop environment comfortable.

Product highlights

Automatic Distance and Wheel Diameter Measuring – This is the defining feature of the CAV CB-530 professional wheel balancer. Instead of manually measuring and entering wheel dimensions, the machine does it automatically using advanced sensors. This eliminates human error, speeds up the process, and ensures accurate balancing data every time. The automatic measuring feature is a significant upgrade from entry-level machines and makes the CAV CB-530 a true professional wheel balancer.

Self-Diagnosis and Self-Calibration – The CAV CB-530 tire balancing machine features self-diagnosis and self-calibration functions that maintain accuracy over time. The machine checks its own performance and calibrates itself, ensuring consistent results without requiring frequent manual calibration checks. The self-diagnosis function alerts technicians to any potential issues, helping to avoid inaccurate readings and minimise workshop downtime.

Digital Precision Balancing – ±1g Accuracy – The CAV CB-530 2D wheel balancer delivers ±1g balancing accuracy, which is professional-grade precision. High-accuracy sensors and a bright digital display provide clear, easy-to-read balance data. That level of accuracy ensures smooth, vibration-free wheel performance for your customers, improving ride quality and tyre life.

Automatic Imbalance Calculation – This wheel balancing machine automatically detects both static and dynamic imbalance. That means you get complete, dependable wheel balance results every time, without needing to manually calculate or interpret complex readings. The automatic calculation saves time and reduces the risk of human error.

Quick-Release Nut (Φ=36mm) – The quick-release nut on the CAV CB-530 professional wheel balancer allows technicians to mount and dismount wheels quickly without wrestling with slow or awkward fasteners. This time-saving feature improves workshop throughput and reduces technician frustration.

Fast 8-Second Measuring Time – With a measuring time of just 8 seconds, the CAV CB-530 wheel balancer keeps your workflow moving. You can balance wheels quickly and efficiently, handling more customer jobs per day. That speed advantage adds up over a busy shift, increasing your workshop's profitability.

User-Friendly Interface – The CAV CB-530 tire balancing machine features simple controls and step-by-step prompts that streamline operation and reduce training time. The bright digital display shows imbalance values and weight placement guidance clearly, helping technicians work quickly and accurately.

Heavy-Duty Construction – The CAV CB-530 is built with a robust steel frame and a vibration-resistant spindle that delivers consistent, long-term performance. This professional wheel balancer stays accurate and reliable even under continuous use in a busy workshop environment.

Wide Wheel Compatibility – This wheel balancing machine balances passenger cars, light trucks, and performance wheels with ease. With rim diameter coverage from 10" to 24" and rim width from 1.5" to 16", the CAV CB-530 covers the vast majority of wheels on the road.

Weight Placement Guidance – The on-screen weight placement guidance shows technicians exactly where to apply corrective weights for fast, accurate service. That guidance reduces guesswork and helps technicians get consistent results.

Flexible Power Supply Options – CAV offers this wheel balancer with motor ratings of 0.25kW or 0.37kW to suit your local power supply. Choose from 110V, 220V, or 380V configurations.

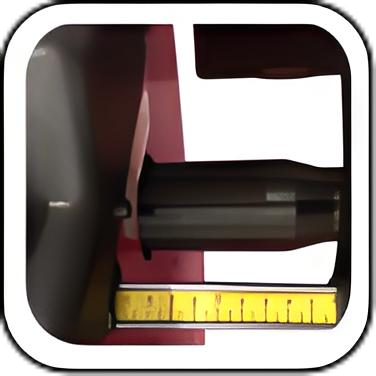

	Automatic distance and wheel diameter measuring

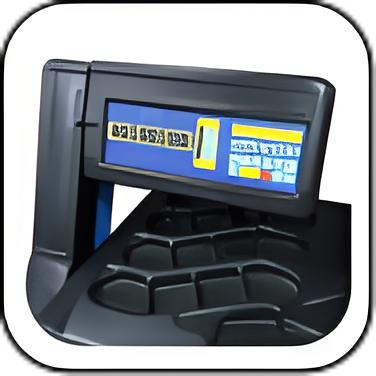

	Digital Display Providing self-diagnosis and self-calibration

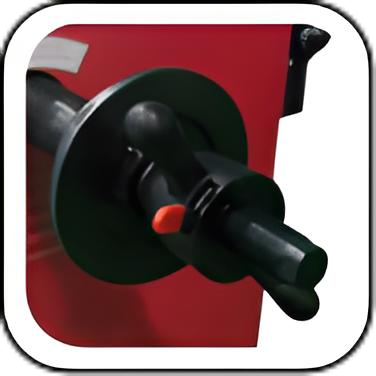

	Quick release nut Φ=36mm
