Professional-level 3D Automatic wheel balancer

The CAV CB-800 professional-level 3D automatic wheel balancer is CAV flagship balancing machine, engineered for workshops that demand the highest level of automation, precision, and efficiency. CAV knows that in a busy workshop, time is money, and accuracy is everything. The CAV CB-800 delivers on both fronts with its fully automatic 3D measuring system that takes the guesswork and manual effort out of wheel balancing.

The standout feature of the CAV CB-800 wheel balancing machine is its fully automatic measurement system. Unlike entry-level machines that require manual input of wheel dimensions, the CAV CB-800 automatically measures distance, rim diameter, and rim width. The technician simply mounts the wheel, and the machine does the rest – measuring all three parameters with precision and feeding that data directly into the balancing algorithm. This eliminates human error, speeds up the process significantly, and ensures every balance job starts with accurate data. The result is faster, more precise wheel balancing that reduces technician effort and increases workshop throughput.

The CAV CB-800 tire balancing machine also features a laser pointer that indicates the exact imbalance position on the wheel. This visual guidance shows technicians precisely where to apply corrective weights, eliminating guesswork and ensuring accurate weight placement every time. The 5-window digital display provides clear, comprehensive information at a glance, showing imbalance values and other critical data across five separate windows for easy reading.

The automatic electromagnetic brake on the CAV CB-800 professional wheel balancer stops the wheel quickly and smoothly after each spin cycle, reducing waiting time and improving workflow efficiency. The machine also features built-in fault diagnosis and self-calibration programs, including double-side calibration. These functions ensure consistent accuracy over time and alert technicians to any potential issues.

The CAV CB-800 handles rim diameters from 10" to 24" and rim widths from 1.5" to 16", with a maximum wheel weight of 65kg (143 pounds). Maximum wheel diameter is 960mm (38 inches), covering the vast majority of passenger cars, SUVs, and light trucks on the road. Balancing accuracy is ±1 gram with an 8-second measuring time at 200 rpm. The machine is available with motor power options of 0.25kW or 0.37kW, with configurations for 110V, 220V, or 380V power supplies. Noise level is under 70dB, keeping your workshop environment comfortable.

Product highlights

Automatic 3D Measurement of Distance, Rim Diameter and Rim Width – This is the defining feature of the CAV CB-800 professional wheel balancer. The machine automatically measures all three critical dimensions – distance, rim diameter, and rim width – without any manual input from the technician. This eliminates human error, speeds up the process, and ensures accurate balancing data every time. The 3D automatic measurement system sets the CAV CB-800 apart from entry-level and even many professional models.

Laser Pointer Indicates Imbalance Position – The laser pointer on the CAV CB-800 tire balancing machine projects a bright, visible beam directly onto the wheel, showing technicians exactly where to apply corrective weights. This eliminates guesswork, reduces weight placement errors, and speeds up the balancing process significantly. The visual guidance is especially valuable for new technicians and for ensuring consistent results across different operators.

5-Window Digital Display – The CAV CB-800 3D automatic wheel balancer features a comprehensive 5-window digital display that shows all critical information at a glance. Imbalance values, measurement data, and other key information are displayed across five separate windows, making it easy for technicians to read and understand the data quickly. This improves workflow efficiency and reduces the chance of misreading information.

Automatic Electromagnetic Brake – The automatic electromagnetic brake on the CAV CB-800 stops the wheel quickly and smoothly after each spin cycle. This reduces waiting time and improves workflow efficiency, allowing technicians to move from one job to the next without delay. The smooth braking action also reduces wear on the machine components.

Built-in Fault Diagnosis and Self-Calibration – The CAV CB-800 professional wheel balancer features built-in fault diagnosis and self-calibration programs, including double-side calibration. The machine checks its own performance and calibrates itself to maintain accuracy over time. The fault diagnosis function alerts technicians to any potential issues, helping to avoid inaccurate readings and minimise workshop downtime.

Heavy-Duty Construction – 3mm Steel Body – The CAV CB-800 is built with a 3mm thickness steel body and high-strength, solid welding that minimises vibration. The body uses an all-in-one pressure sensor support design with bottom board thickness of 8mm and side board thickness of 8mm, ensuring stable sensor operation and high precision. This heavy-duty construction ensures the CAV CB-800 stays accurate and reliable even under continuous use.

Top-Level Motor with Pure Copper Winding – The CAV CB-800 tire balancing machine uses a top-level motor with pure copper winding, providing more power, fast heat dissipation, low defect rate, and longer service life. The motor is engineered for continuous use in busy workshop environments.

High-Quality Integration Power Board – The CAV CB-800 features a high-quality integration power board that ensures stable and reliable operation. The computer board adopts advanced welding technology with moisture-proof, dustproof, and anti-static electricity protection, giving it a longer working life.

Various Balance Modes – This wheel balancing machine offers various balance modes that can be selected according to different rim types. This ensures the balance effect is more precise across a wide range of wheel configurations.

Unit Selection and Longer Shaft Option – The CAV CB-800 allows unit selection (Ounce/Gram, MM/Inch) and features a longer shaft option for wider wheels, increasing its versatility.

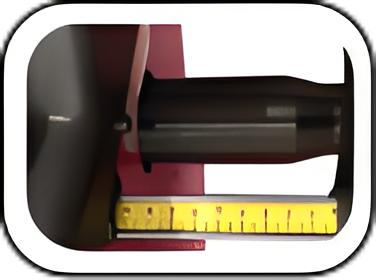

	Automatic distance and wheel diameter measuring

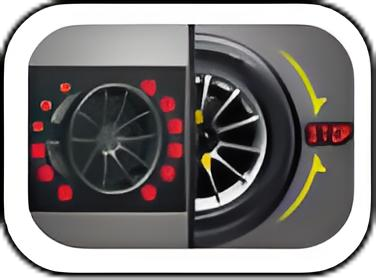

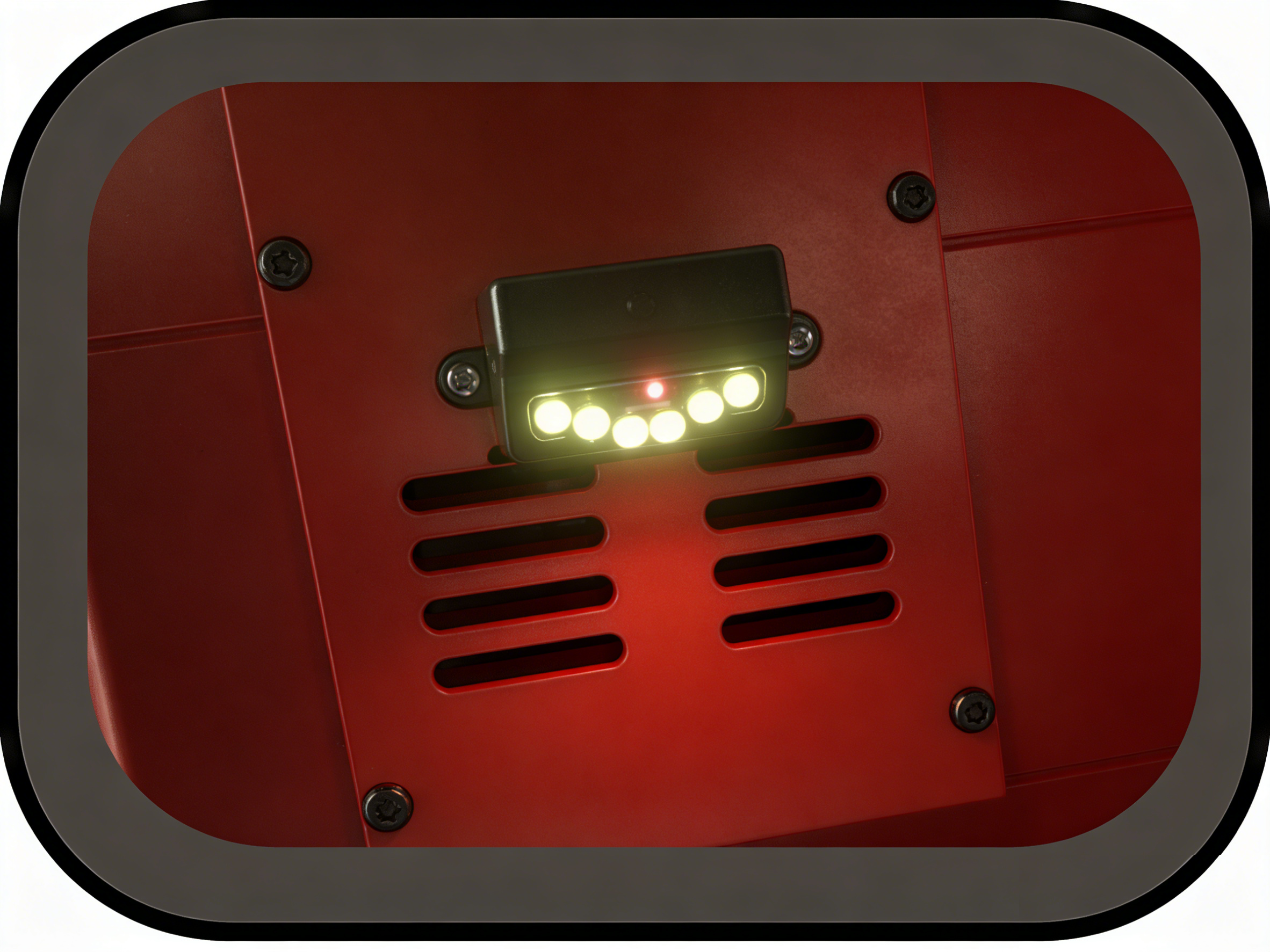

	Laser pointer indicates the imbalancing position

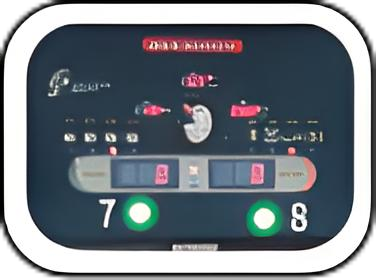

	5 windows digital display
	Automatic electromagnetic brake
