Automatic Tire Changer 10"-24",Tilt Back Tower

The CAV 1024 Monster automatic tire changer with tilt-back tower is CAV answer to the demands of high-volume tyre workshops that need both power and accessibility. CAV knows that when you are changing tyres all day long, the little frustrations add up – and one of the biggest frustrations is having the tower block your access to the wheel. That is why CAV designed the 1024 Monster with a tilt-back tower that gets out of your way when you need it most.

The tilt-back feature is what makes this tire changing machine stand out. With a simple operation, the entire tower assembly tilts backwards, moving the vertical post and the tool head completely clear of the working area. That means you have full, unobstructed access to the wheel from any angle. You can approach the tyre from the side, reach over the top, or position yourself exactly where you need to be without leaning awkwardly around the tower. For technicians who change dozens of tyres a day, that kind of access translates directly into faster service times and less physical strain.

Operating the CAV 1024 Monster is straightforward and intuitive. The foot-pedal controls give you hands-free operation of the turntable and the tool arm, so your hands stay on the tyre where they belong. The automatic bead breaker delivers a punchy 2500kg of force, which handles stubborn, corroded, or low-profile tyres with confidence. Once the bead is broken, the tilt-back tower gives you all the room you need to mount or dismount the tyre smoothly. The multi-angle duckhead tool is designed to protect rims from scratches and damage, which is critical when you are working with expensive alloy or performance wheels.

The clamping range on this automatic tire changer covers external sizes from 10" to 22" and internal sizes from 12" to 24". Maximum wheel diameter is 1040mm (41 inches), and maximum width is 330mm (13 inches). That covers the vast majority of passenger cars, SUVs, and light trucks on the road today. Power options range from 0.55kW to 1.1kW, with configurations available for 110V, 220V, or 380V supplies. The CAV 1024 Monster automatic tire changer runs at under 70dB, keeping your workshop environment comfortable, and air supply requirements are 8 to 10 bar, which is standard for most workshop compressors.

Product highlights

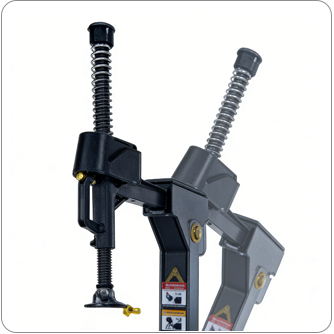

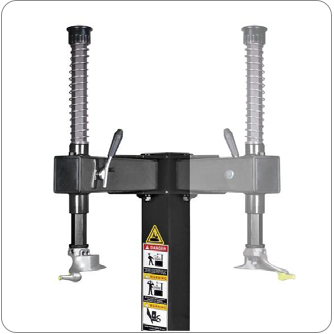

Tilt-Back Tower Design – This is the defining feature of the CAV 1024 Monster automatic tire changer. The tower tilts backwards to give you unrestricted access to the wheel from any angle. No more leaning awkwardly around the vertical post or struggling to position the tool in tight spaces. The tilt-back mechanism is smooth and reliable, engineered for daily use in busy workshops. This design significantly speeds up the mounting and dismounting process, especially on wider wheels where the tower would normally get in the way.

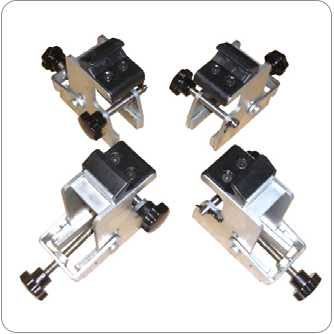

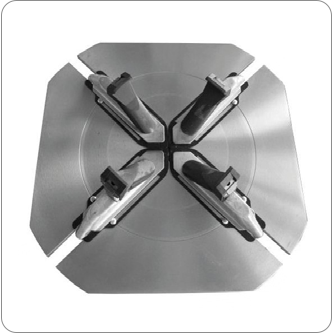

Wide Clamping Range – 10" to 24" – This tire changing machine covers a broad spectrum of wheel sizes. External clamping goes from 10" to 22", and internal clamping covers 12" to 24". That means you can service everything from compact car spares to SUV and light truck wheels on the same automatic tire changer. The adjustable clamping jaws adapt quickly, so you are not wasting time between different wheel types.

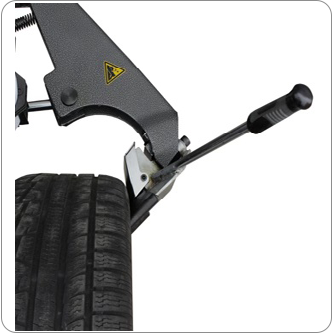

Powerful 2500kg Automatic Bead Breaker – The bead breaker on the CAV 1024 Monster delivers 2500kg of force, making short work of stubborn beads on old tyres, corroded rims, and low-profile performance tyres. The bead breaker operates automatically, giving you consistent, reliable performance that reduces physical strain on your technicians. The "Monster" name reflects this machine's ability to handle the toughest bead-breaking jobs with ease.

Foot-Operated Pedal Controls – The foot pedal system gives you total hands-free control over the turntable rotation and the tool arm. That is a significant safety and efficiency feature. You can rotate the wheel, position the tool, and guide the tyre all without taking your hands off the job. In a busy tyre shop, that speed advantage adds up over the course of a day.

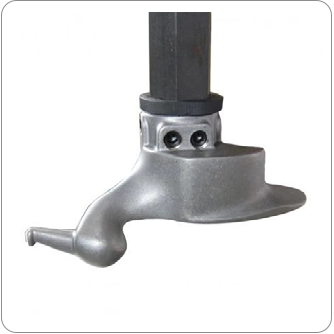

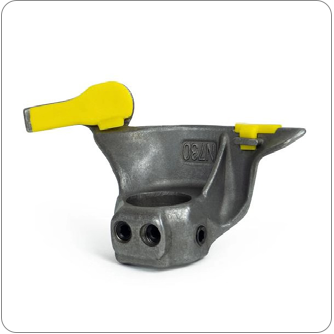

Multi-Angle Duckhead Tool – The CAV 1024 Monster tire changer comes with a duckhead tool designed to protect expensive wheels from scratches and damage. The multi-angle head gives you the flexibility to approach the tyre from the optimal position, reducing effort and minimising the risk of marking the rim. This is especially important when working with alloy wheels, powder-coated rims, or high-end performance wheels.

Heavy-Gauge Steel Frame Construction – The CAV 1024 Monster is built with a robust steel frame and a reinforced tower that takes the stress of daily tyre work. This automatic tire changer stays solid and stable even when you are applying significant force to break stubborn beads. CAV has focused on structural integrity to give you a machine that handles the rigours of a busy workshop without flexing or shifting.

Low Noise Operation – Below 70dB – At under 70 decibels, this automatic tire changer is quieter than many competitors. That makes a real difference in a busy workshop where constant equipment noise can be draining. Your technicians will appreciate the quieter working environment, especially during long shifts.

Broad Wheel Compatibility – This tire changing machine handles steel, alloy, and performance wheels, including low-profile and run-flat tyres. That versatility means you can use the CAV 1024 Monster across your entire service range without needing a separate machine for different wheel types.

Integrated Tool Tray – The built-in tray keeps your tyre tools, valve stems, and accessories organised and within reach. It keeps your workspace tidy and saves you walking back and forth to the tool bench.

Flexible Power Supply Options – CAV offers this tire changer with motor ratings of 0.55kW, 0.75kW, or 1.1kW to suit your local power supply. Choose from 110V, 220V, or 380V configurations – the CAV 1024 Monster adapts to your workshop infrastructure.
