Cavalry UL-U299 Professional Car Body Repair Frame Machine

The Cavalry UL-U299 Professional Car Body Repair Frame Machine represents a practical engineering approach to vehicle structural repair that balances performance, durability, and operator convenience. Cavalry understands that collision repair professionals need equipment that delivers consistent straightening results while supporting efficient workflow across diverse vehicle types. This professional frame machine addresses these requirements through a combination of premium materials, improved manufacturing techniques, and design features that respect how technicians actually work.

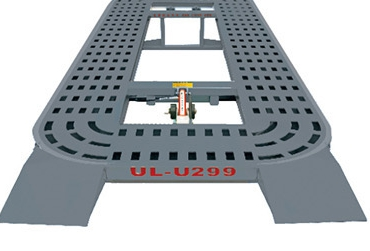

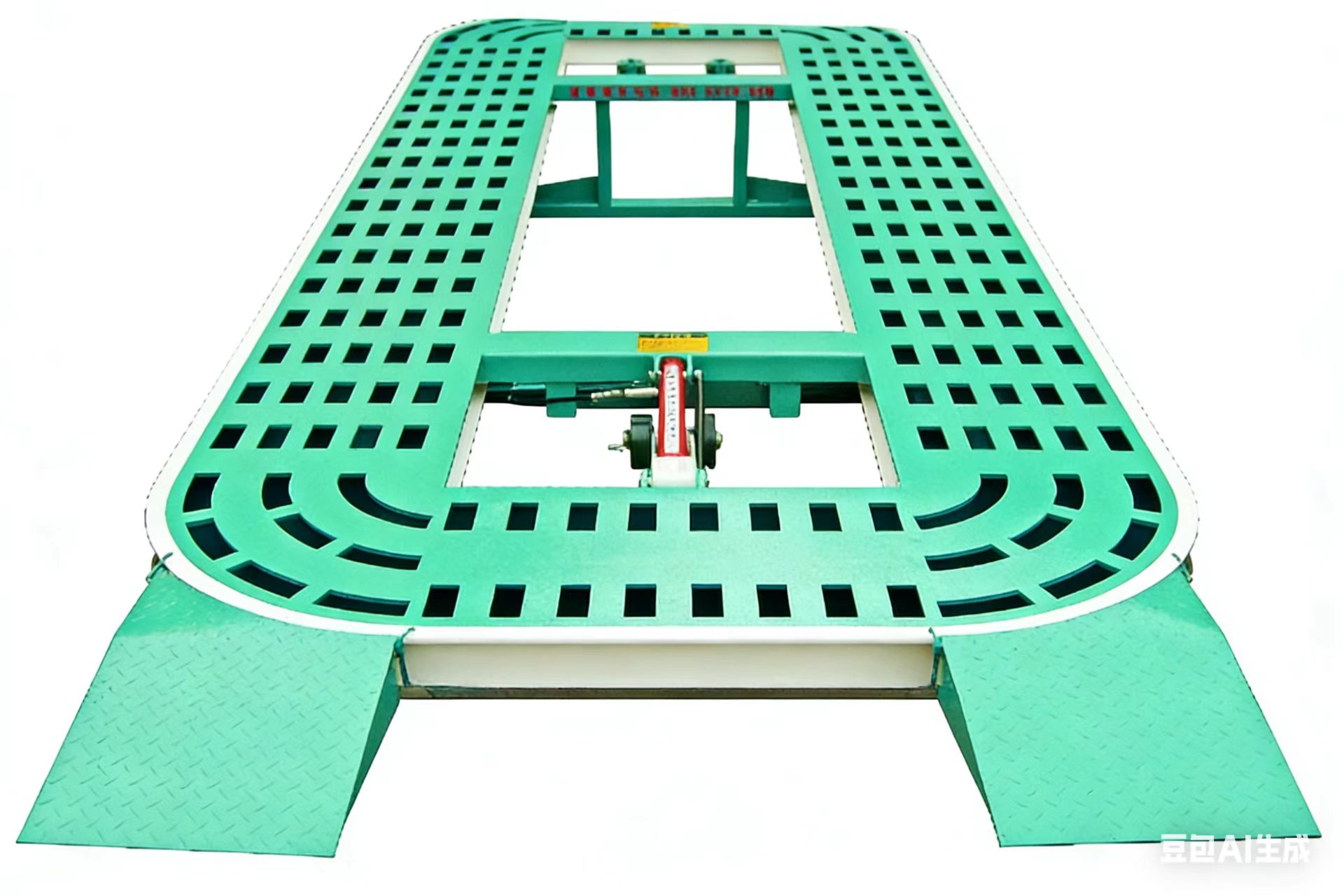

The flat plate and square hole steel working platform serves as the foundation of the UL-U299's structural integrity. Cavalry selected premium materials specifically for their ability to maintain dimensional stability under the 95kn pulling forces generated during frame straightening operations. The improved welding techniques enhance stress intensity throughout the platform structure, reducing flex during demanding repairs. This construction approach ensures the platform maintains its geometry even under sustained pulling loads, supporting precise repair work across repeated use cycles. The 5600mm length and 2200mm width provide ample workspace for most vehicles encountered in collision repair environments.

The no-blind working range distinguishes the UL-U299 from conventional frame straightening equipment. Traditional systems often have areas where clamping or pulling access is restricted, forcing technicians to work around equipment limitations or reposition vehicles multiple times. The UL-U299's design removes these restrictions, providing consistent access across the entire working surface. This approach aligns with the natural habits and workflow patterns of experienced technicians, enabling them to work efficiently without adapting to equipment constraints.

The platform height of 520mm provides ergonomic access for most repair tasks. The 360° pulling radius enables technicians to apply corrective force from any direction, essential for addressing complex collision damage that affects multiple vehicle dimensions. The 95kn pulling capacity handles the majority of frame straightening applications on passenger vehicles, SUVs, and light trucks. The 3500kg maximum loading capacity ensures the machine can handle heavier vehicles commonly found in commercial and SUV applications.

The UL-U299 requires air supply of 0.8mpa for pneumatic functions, supporting reliable operation of hydraulic and clamping systems. Multi-voltage support covers 220V and 380V configurations, accommodating facilities across different regions with varying electrical standards.

Features

Platform is made of high-quality manganese steel, procedures including CNC plasma cutting, CO2 welding (Panasonic), polishing (shot blasting cleaning machine) and power coating ensure the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening.

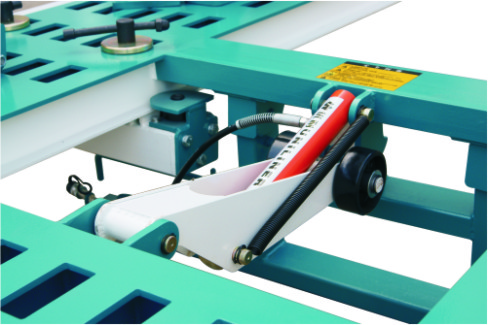

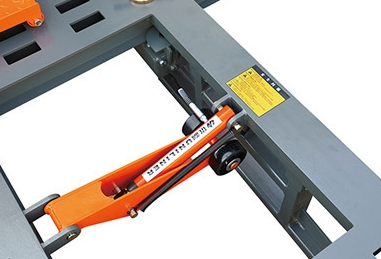

	Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more conveniently (evendrive the car onto the platform directly.

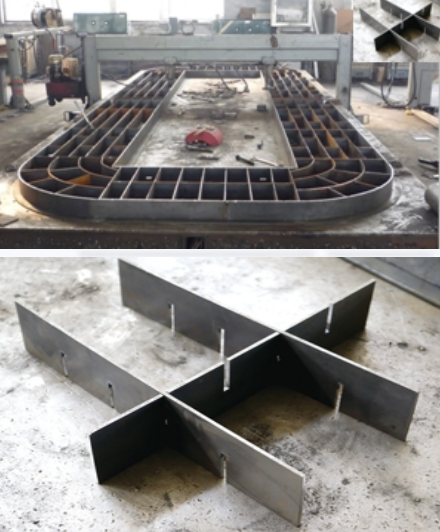

The strength of platform is decided by the connected steel beams on the top andbottom. Thickness of platform steel is 10mm, width of each half platform is 650mm assembled by 5 grows of square holes, each hole has a crossed-shape beam with external side thickness 8mm and internal side thickness 6mm, which assure the whole platform is flat and strong enough.

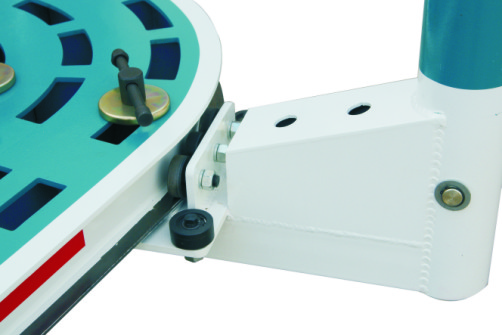

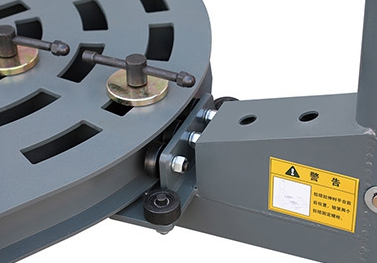

	Towers can be rotated 360 degrees along the platformand be made of 10mm seamless steel pipe, which meansmore convenient moving and high intensity if both towers straighten in diagonal line.

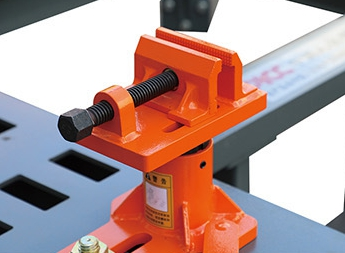

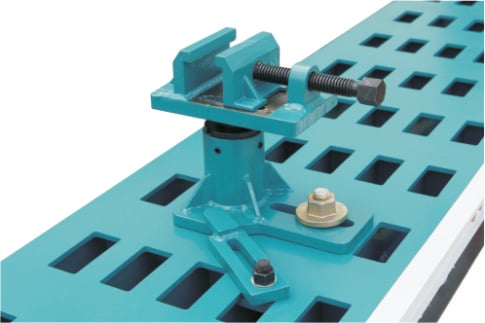

TUnique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.

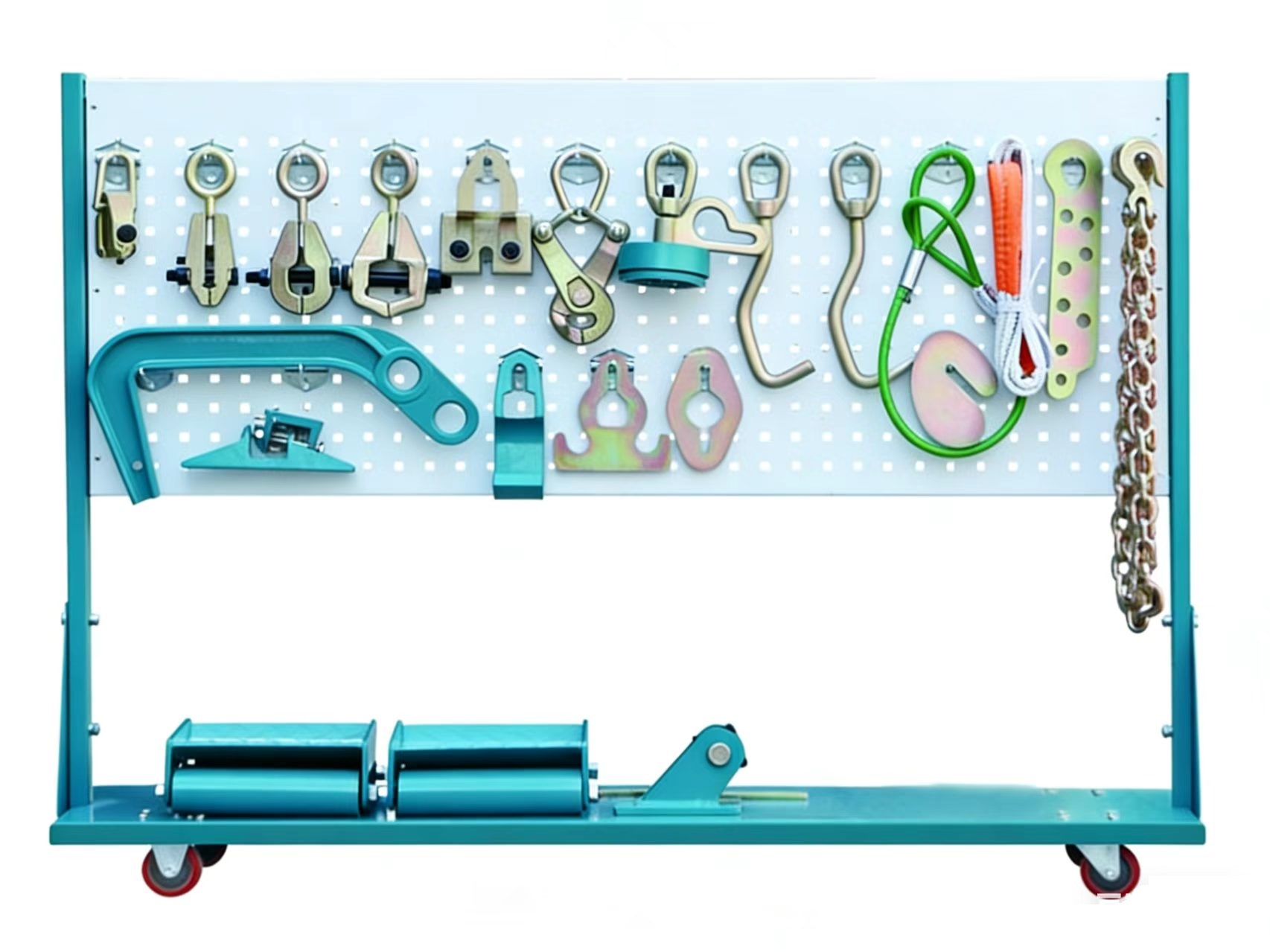

	All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes. Three important points for heat treatment process to make sure the accessories quality: Overall forging (mould owned by UNLINER) Overall conditioning (hardness HRC28 degrees); High frequency quenching of tooth profile (hardness HRC40 degrees).

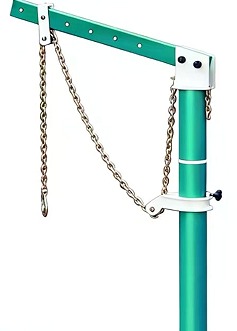

The leading arm can supply multi-direction tensile during the collision repair.

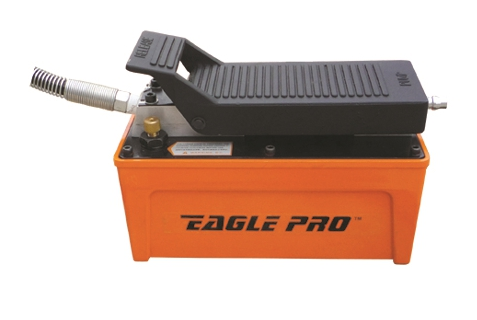

	Durable American Eagle Pro Hydraulic foot pumps.
High-precision and retractable alloy two dimension measurement with laser scale has no breaking point, can be realized three-dimensional measurement. Car data with global synchronization offered by Mitchell and major auto manufactures to make sure the latest update.
