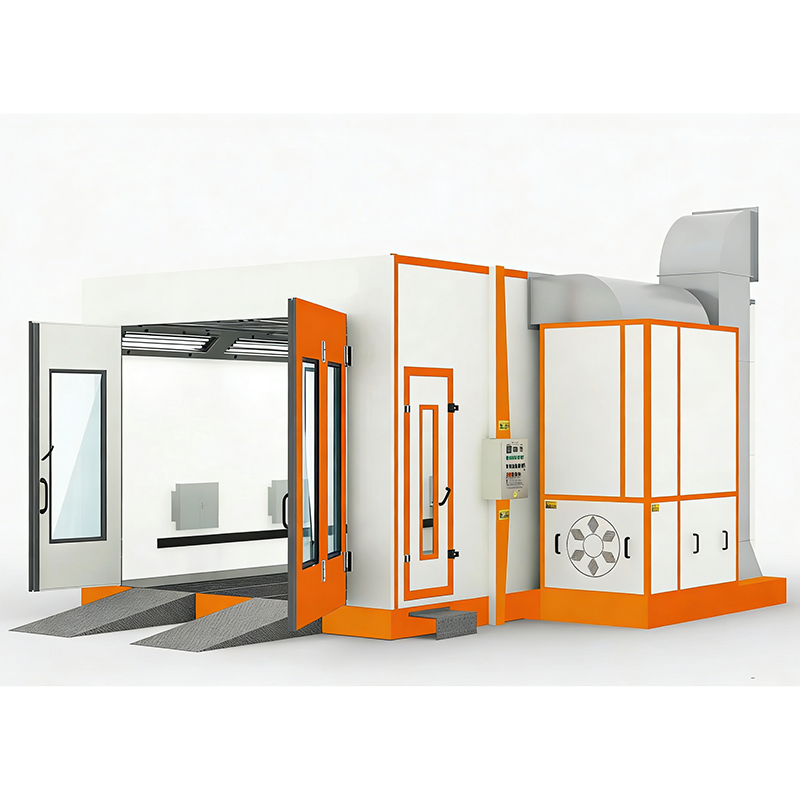

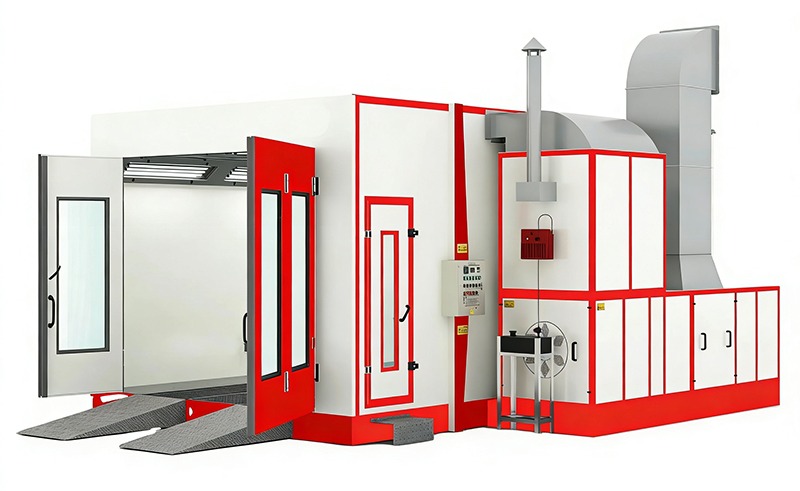

Paint Spray Booth\Heavy Duty Car Spray Booth LX4

The Paint Spray Booth / Heavy Duty Car Spray Booth LX4 represents a robust solution for automotive refinishing operations that demand durability, controlled environments, and efficient workflow. Cavalry understands that professional body shops need spray booths that provide consistent paint application quality, protect finished surfaces from contamination, and support efficient vehicle throughput. The LX4 addresses these requirements through quality construction and thoughtful design.

Spray booths operate on principles of controlled airflow and filtration to ensure paint quality. Air enters through primary filters, passes through secondary ceiling filters, and moves downward across the vehicle surface to carry paint overspray away from the workpiece. This downdraft airflow approach helps maintain a clean environment during painting operations and contributes to professional finish quality. The booth design supports air cleanliness during spray operations.

The booth's exterior dimensions of 7000×5200×3400mm provide a substantial footprint that accommodates most passenger vehicles and light trucks. The interior workspace measuring 6900×3900×2650mm offers adequate clearance around the vehicle for technicians to work comfortably during paint application. This size range covers the majority of vehicles encountered in typical collision repair and refinishing operations, from compact cars to larger SUVs and light trucks.

The entrance door system features a 3-fold design measuring 3000×2600mm, providing wide access for vehicle entry and exit. The bending steel construction offers durability for regular use, while the tempered glass window allows technicians to observe the interior without opening the door. Cast aluminum hinges provide smooth operation and long-term reliability, reducing maintenance requirements over years of service.

The emergency door measures 650×2000mm and includes a pressure lock mechanism for safety compliance. The glass window provides visibility for monitoring conditions inside the booth without opening the door. The inclusion of a step facilitates convenient access and egress, particularly important during emergency situations or when technicians need to enter and exit quickly.

Product highlights

Heavy Duty Construction for Demanding Environments
The LX4 is built as a heavy duty car spray booth with robust materials selected for regular workshop use. Bending steel door construction and cast aluminum hinges provide durability and long-term reliability. The booth withstands the demands of busy collision centers and body shops where equipment sees daily use.

Spacious Exterior and Interior Dimensions
The LX4 measures 7000×5200×3400mm externally with interior workspace of 6900×3900×2650mm, accommodating most passenger vehicles, SUVs, and light trucks. This size range covers the majority of vehicles encountered in typical collision repair operations. The interior height provides adequate clearance for technicians working around the vehicle during paint application.

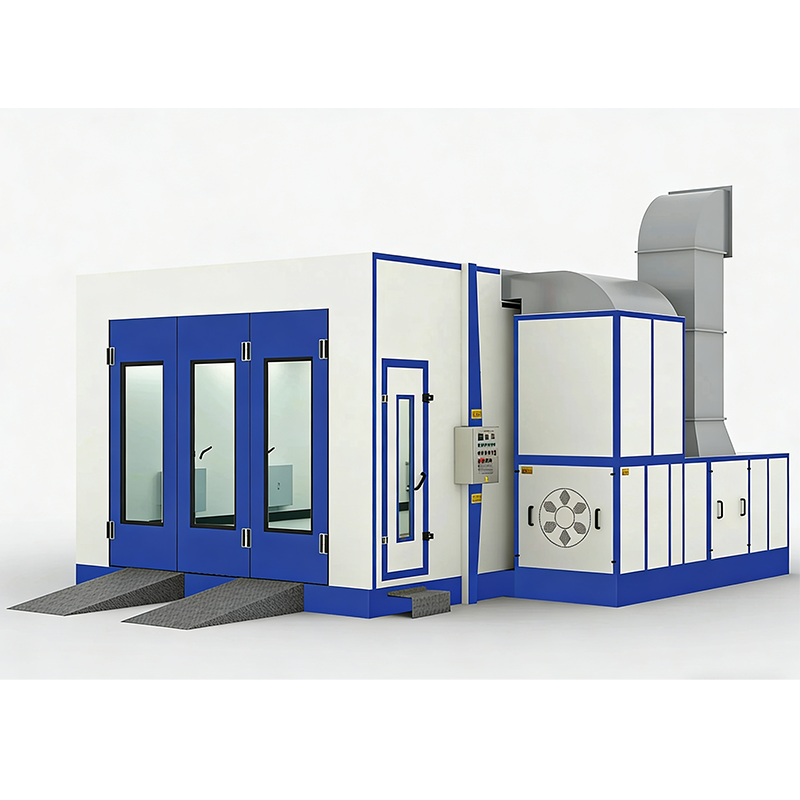

3-Fold Entrance Door with Tempered Glass Window
The 3000×2600mm 3-fold entrance door provides wide access for vehicle entry and exit. Bending steel construction offers durability for regular use, while the tempered glass window allows observation of interior conditions without opening the door. Cast aluminum hinges ensure smooth operation and long-term reliability. The 3-fold design saves space when the door is open.

Emergency Door with Pressure Lock and Step
The 650×2000mm emergency door includes a pressure lock mechanism for safety compliance. The glass window provides visibility for monitoring conditions inside the booth. The step facilitates convenient access and egress during emergency situations, supporting workshop safety standards.

Downdraft Airflow Design
The LX4 is designed to support proper downdraft airflow patterns for paint quality. Air enters through primary filters, passes through secondary ceiling filters, and moves downward across the vehicle surface to carry paint overspray away from the workpiece. This approach helps maintain a clean environment during painting operations.

Quality Construction Materials
The entrance door features bending steel construction with cast aluminum hinges for durability. This material selection supports long-term reliability in busy workshop environments. The tempered glass windows provide safety and visibility while resisting breakage. The construction quality supports professional spray booth performance.

Safety and Compliance Features
The emergency door with pressure lock and glass window provides safety compliance features essential for professional spray booth operations. The step facilitates safe access and egress. These features support workshop safety standards and regulatory compliance.

Practical Workshop Integration
The 7000mm length and 5200mm width accommodate most workshop configurations. The dimensions balance workspace requirements with practical footprint considerations. The design supports efficient workflow without requiring excessive floor space.

Versatile Vehicle Compatibility
The LX4 accommodates passenger vehicles, SUVs, and light trucks within its interior workspace. This broad compatibility makes the spray booth suitable for diverse workshop operations, from independent body shops to dealership collision centers. The 6900mm interior length provides adequate clearance for most vehicle types.
