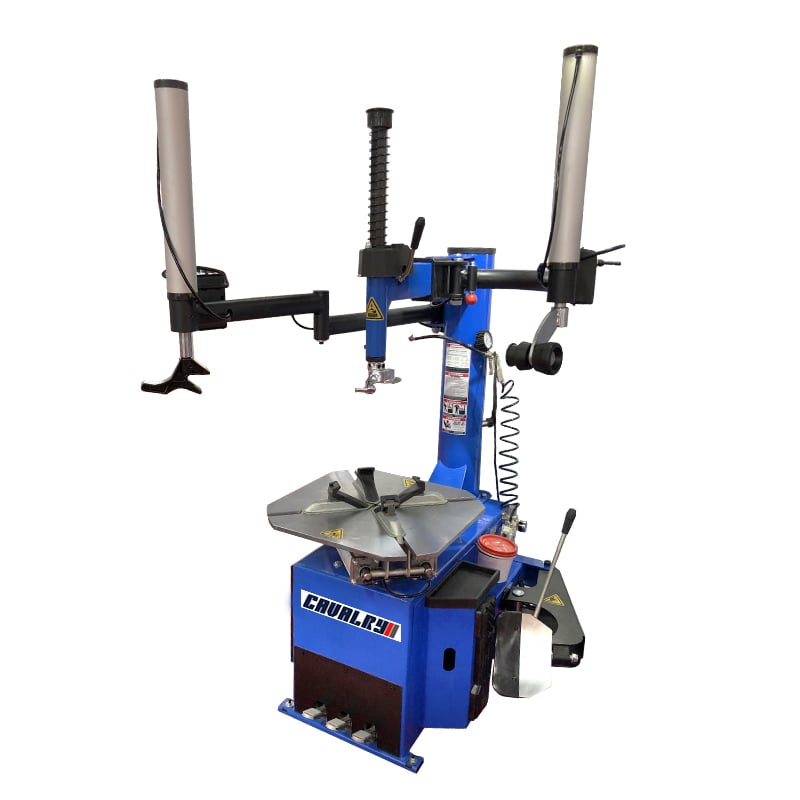

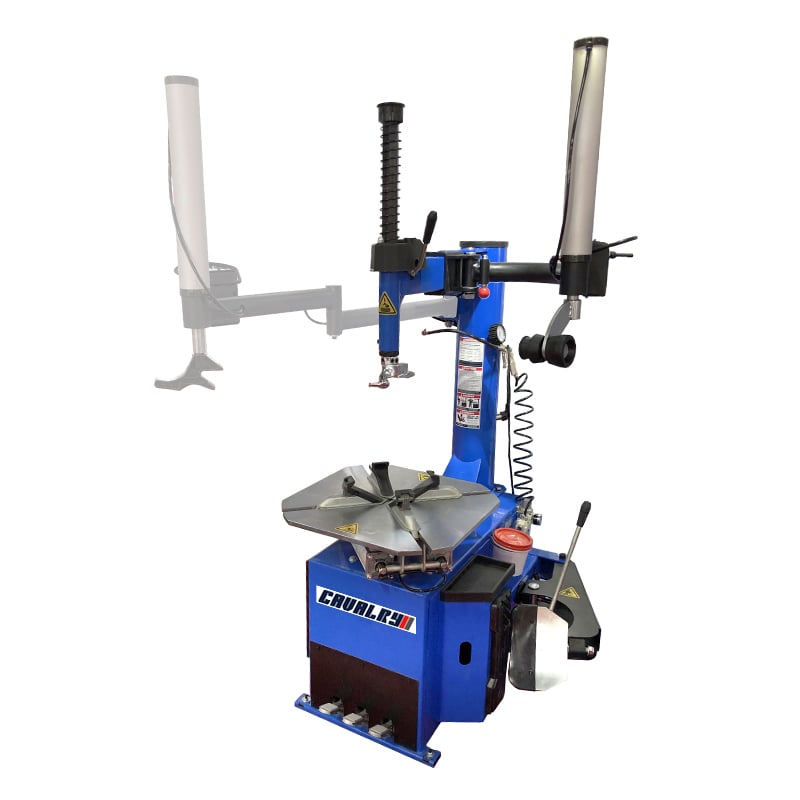

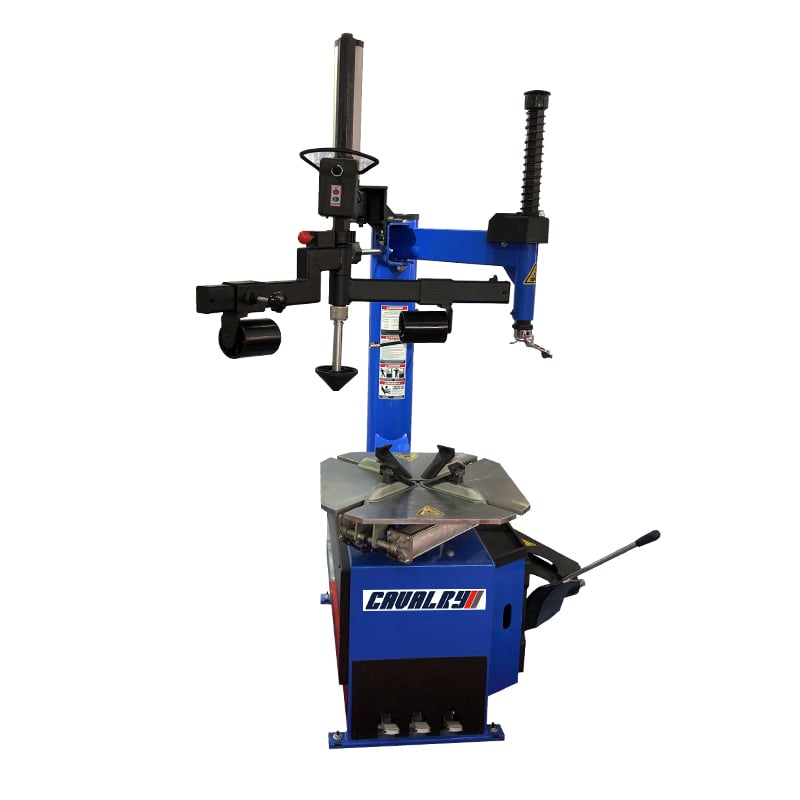

Semi-automatic swing arm tire changer 12"-26"

The CAV 1226 semi-automatic swing arm tire changer is CAV solution for workshops that need to handle larger wheels without stepping up to a full commercial-grade machine. CAV understands that many service centres work on a mix of passenger cars, large SUVs, and light trucks, and they need a tire changer that can handle that range comfortably. That is precisely what this tire changing machine offers.

The swing arm design on the CAV 1226 gives you the right blend of manual control and mechanical assistance. You operate this tire changer using foot pedals, keeping your hands free to guide the tyre and the duckhead tool around the rim with precision. That hands-free operation is a real safety advantage – you are not reaching across moving parts while dealing with a stiff tyre sidewall. For workshops handling a lot of low-profile, run-flat, or stiff-sidewall tyres, CAV offers an optional assist arm that makes the job noticeably smoother.

The clamping range on this swing arm tire changer is where it really stands out. External clamping goes from 12" right up to 24", and internal clamping covers 14" all the way to 26". That means you can service everything from large passenger car wheels through to light truck and commercial vehicle tyres on the same tire changing machine. The maximum wheel diameter is 1040mm (about 41 inches), and the maximum wheel width is 330mm (13 inches). That kind of range covers the vast majority of vehicles on the road, from family sedans to delivery vans and 4x4s.

Power comes from a motor rated at 0.55kW, 0.75kW, or 1.1kW depending on your local electrical supply – CAV offers flexible configurations to match 110V, 220V, or 380V systems. The bead breaker delivers a solid 2500kg of force, which handles even the most stubborn commercial tyres with confidence. You will appreciate that kind of muscle when you are dealing with a tyre that has been sitting on a rim for years or a heavy-duty light truck tyre with thick, stiff sidewalls. The CAV 1226 tire changer operates at under 70dB, keeping noise levels reasonable in a busy workshop environment. Air supply requirements are 8 to 10 bar, which works with most standard workshop compressors.

Product highlights

Heavy-Gauge Steel Frame Construction – The CAV 1226 tire changer is built with a robust steel frame and a reinforced tower designed to take the stress of daily tyre work on larger wheels. This tire changing machine stays solid and stable even when you are applying significant force to break stubborn beads on commercial tyres. CAV has prioritised structural integrity to give you a machine that handles the rigours of a busy workshop without flexing or shifting.

Expanded Clamping Range – 12" to 26" – This swing arm tire changer covers the wider wheel sizes you will encounter when servicing SUVs, light trucks, and commercial vehicles. External clamping goes from 12" to 24", and internal clamping covers 14" to 26". That means you can service everything from large passenger car wheels to light truck tyres on the same tire changing machine. The adjustable clamping jaws adapt quickly, minimising downtime between jobs.

Powerful 2500kg Bead Breaker – The bead breaker on the CAV 1226 delivers 2500kg of force – plenty of muscle to separate stubborn beads from the rim, even on larger commercial tyres. Whether you are dealing with corroded steel wheels or tight-fitting performance tyres, this tire changer makes the job manageable. The bead breaker operates automatically, giving you consistent, reliable performance every time you use it.

Foot-Operated Pedal Controls – The foot pedal system gives you hands-free control over the turntable rotation and the tool arm. That is a significant safety and efficiency feature. You can rotate the wheel, position the tool, and guide the tyre all without taking your hands off the job. Experienced tyre fitters know this makes a real difference when you are working through a long list of tyre services.

Multi-Angle Duckhead Tool – The CAV 1226 tire changer comes with a duckhead tool designed to minimise the risk of damage to wheels and rims. The multi-angle head gives you the flexibility to approach the tyre from the optimal position, reducing the effort required to mount or dismount the tyre. This is particularly valuable when working with expensive alloy wheels where scratches are not acceptable.

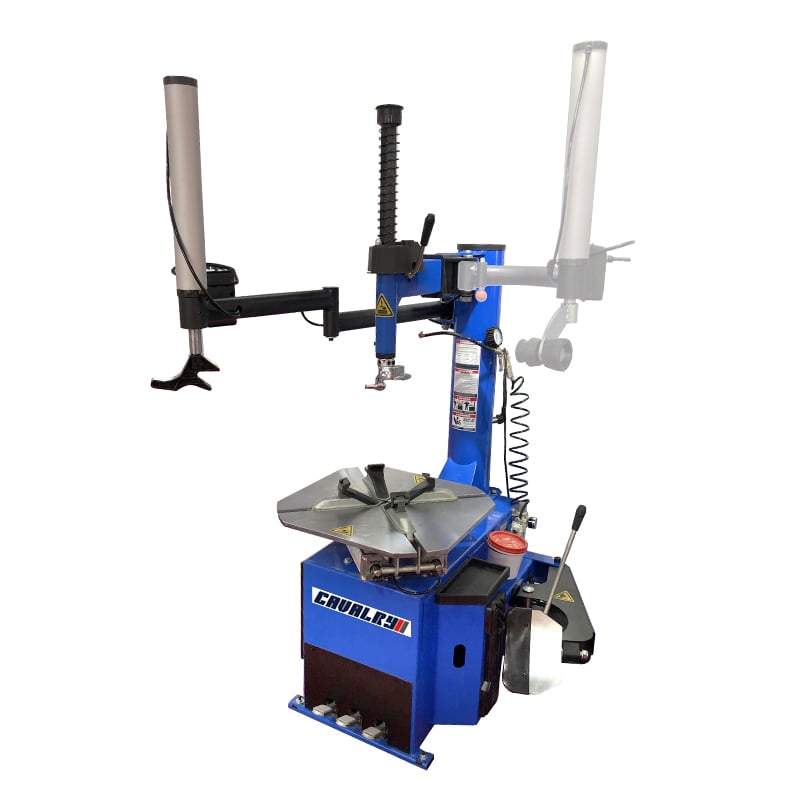

Optional Assist Arm – For workshops that handle a lot of low-profile, run-flat, or stiff-sidewall tyres on larger wheels, CAV offers an optional assist arm for the CAV 1226. This accessory makes mounting and dismounting those trickier tyres noticeably easier, reducing technician fatigue and speeding up the service process on larger commercial wheels.

Low Noise Operation – Below 70dB – At under 70 decibels, this swing arm tire changer is quieter than many competitors. That makes a real difference in a busy workshop where constant equipment noise can be draining over a long shift. Your technicians will appreciate the quieter working environment.

Broad Wheel Compatibility – This tire changing machine handles steel wheels, alloy wheels, and performance wheels, including low-profile tyres and run-flat tyres. That versatility means you can use the CAV 1226 across your entire service range, from passenger cars through to light trucks, without needing a separate machine for different wheel types.

Integrated Tool Tray – The built-in tray keeps your tyre tools, valve stems, and accessories organised and within easy reach. It keeps your workspace tidy and saves you walking back and forth to the tool bench.

Flexible Power Options – CAV offers this tire changer with motor ratings of 0.55kW, 0.75kW, or 1.1kW to suit your local power supply. Choose from 110V, 220V, or 380V configurations – the CAV 1226 adapts to your workshop infrastructure.
