EV battery lift

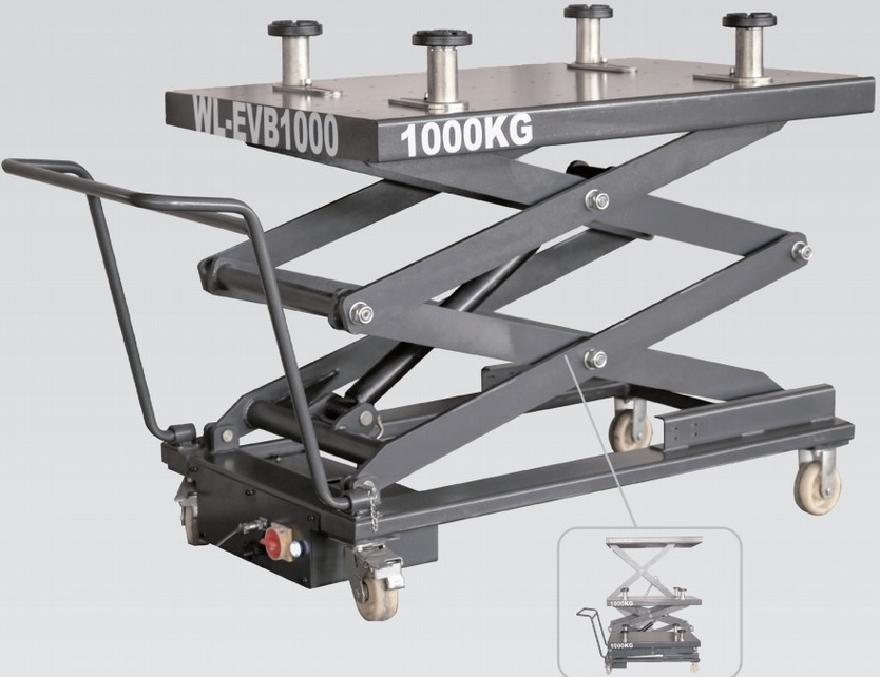

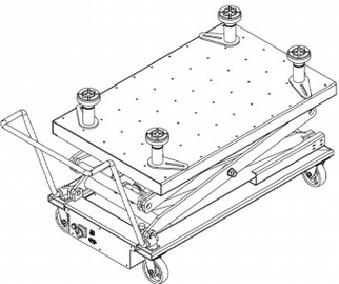

The CAV EVB1000 is a professionally engineered battery lift designed to address the growing need for specialized equipment in the electric vehicle service sector. As the automotive industry shifts toward electrification, workshops must adapt their equipment to handle the unique challenges of EV maintenance—particularly the safe removal and installation of heavy, high-voltage battery packs that can weigh several hundred kilograms. The EVB1000 is purpose-built for this application, offering a stable, controlled lifting platform that reduces physical strain on technicians and minimizes the risk of damage to expensive battery components.

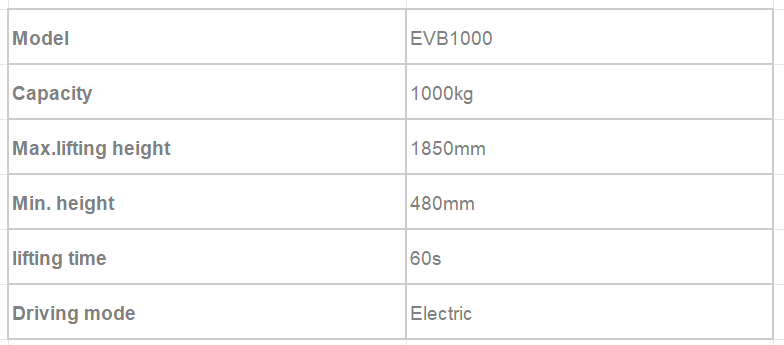

The lift features a 1000kg rated capacity, which covers the battery weight of most mainstream passenger EVs and hybrids currently on the market. With a maximum lifting height of 1850mm, the EVB1000 provides generous clearance for technicians to work comfortably beneath the vehicle during battery service operations. The 480mm minimum height ensures the lift can be positioned under most vehicles without difficulty, even those with moderate ground clearance. The electric drive mode delivers smooth and precise lifting control, reaching full height in approximately 60 seconds. This steady lifting pace allows technicians to position the battery accurately during installation, which is critical given the tight tolerances and alignment requirements of modern EV battery mounting systems.

The EVB1000 is designed for versatility across multiple workshop applications. While its primary function is EV battery handling, the lift is also well-suited for removing and installing other heavy powertrain components, including electric drive units, transmissions, and subframe assemblies. The electric drive system offers quieter operation compared to pneumatic alternatives, making it suitable for workshops where noise reduction is a consideration. The unit's compact design and robust construction ensure it integrates seamlessly into existing workshop layouts, providing a specialized lifting capability without consuming excessive floor space.

Product highlights

Purpose-Built for EV Battery Handling

The EVB1000 is specifically engineered for the safe and efficient handling of electric vehicle batteries. Unlike general-purpose lifts that may lack the stability and control needed for sensitive battery work, the EVB1000 delivers precise, controlled lifting that reduces the risk of component damage. The lift's design takes into account the unique weight distribution and handling requirements of EV battery packs, providing a stable platform that technicians can trust during critical operations.

1000kg Lifting Capacity

With a 1000kg rated capacity, the EVB1000 covers the battery weight of most passenger electric vehicles and hybrids currently on the market. This capacity provides a comfortable safety margin for standard EV service work while maintaining a compact footprint that fits in typical workshop bays. The lift handles the weight of not only the battery pack itself but also any ancillary fixtures or adapters used during removal and installation.

1850mm Maximum Lifting Height

The 1850mm maximum height provides technicians with comfortable standing clearance during battery service operations. This height allows for proper ergonomic positioning when disconnecting high-voltage cables, removing mounting bolts, or lowering the battery pack from the vehicle underbody. The generous lift height also accommodates a range of vehicle types, from lower-slung sedans to taller crossovers and SUVs.

Electric Drive Mode

The electric drive system delivers smooth, controlled lifting with minimal maintenance requirements. Unlike pneumatic systems that require compressed air infrastructure, the electric drive operates using standard workshop power, simplifying installation and reducing ongoing operational costs. The electric motor provides quiet operation and precise control during critical positioning tasks, which is particularly important when aligning a heavy battery pack with its mounting points.

60-Second Lifting Time

The EVB1000 reaches full height in approximately 60 seconds, a practical lifting speed that balances efficiency with control. This cycle time allows technicians to position the lift and raise the battery pack without unnecessary waiting, maintaining productive workflow in busy service bays. The consistent lifting speed also contributes to predictable and repeatable operations.

480mm Minimum Height

The 480mm minimum height allows the lift to be positioned under most vehicles without difficulty. This low profile is particularly valuable for vehicles with moderate ground clearance, where a higher lift base might not fit. The minimum height also makes it easier to slide the lift into position from the side or front of the vehicle, providing flexibility in workshop layout.
