Four-Post Double Parking Lift

The CAV DPL-FP3.6 is a thoughtfully engineered double-wide four-post parking lift designed for facilities that need to maximize vehicle storage capacity within limited floor space. Unlike standard four-post lifts that raise a single vehicle, the DPL-FP3.6 features a double-wide configuration that lifts two vehicles side by side simultaneously. This design is particularly valuable for double garages, where the lift can be positioned with posts against the wall to presrve floor space, and for car storage businesses that want to reduce the number of posts needed compared to using individual four-post lifts. The freestanding design requires no floor bolting or structural modifications, making installation quick and straightforward while allowing repositioning if facility layouts change.

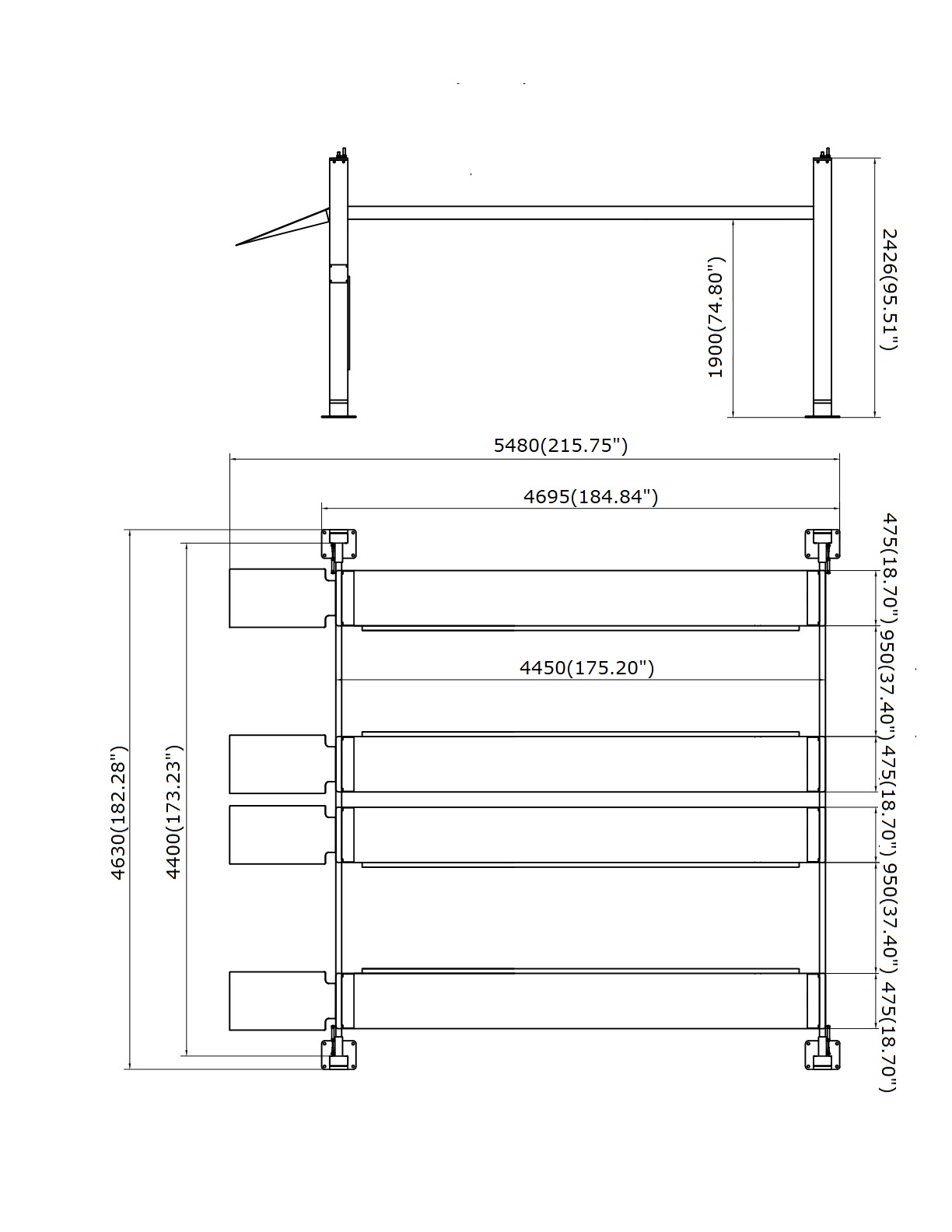

The lift features two 4450mm long platforms with 475mm wide runways, providing stable support for a wide range of vehicles. The total overall length is 5480mm with a width of 4630mm, accommodating two vehicles side by side in a compact footprint. The skid-proof diamond platform surface ensures secure vehicle positioning by providing excellent traction. The removable long approach ramps make drive-on access straightforward, particularly for vehicles with low ground clearance. The 135mm minimum height allows low vehicles to drive onto the platforms without scraping.

The DPL-FP3.6 delivers a maximum lifting height of 1900mm, providing generous clearance for vehicle storage or light maintenance work. The heavy-duty hydraulic cylinder, powered by a 2.2kW motor, lifts both platforms smoothly and reliably. The single-point manual lock release simplifies the lowering process, allowing a single operator to manage the descent of both platforms from one convenient point. Multi-level locking positions provide secure mechanical support at various heights. Each platform operates independently for loading, but they raise and lower together under the single-point control system. The lift is equipped with cable failure protection that engages instantly if cable tension is compromised. The powder coat finish provides long-lasting protection against corrosion, and drip trays are included to capture fluids from parked vehicles. Optional wheel caster kits are available for enhanced mobility.

Product highlights

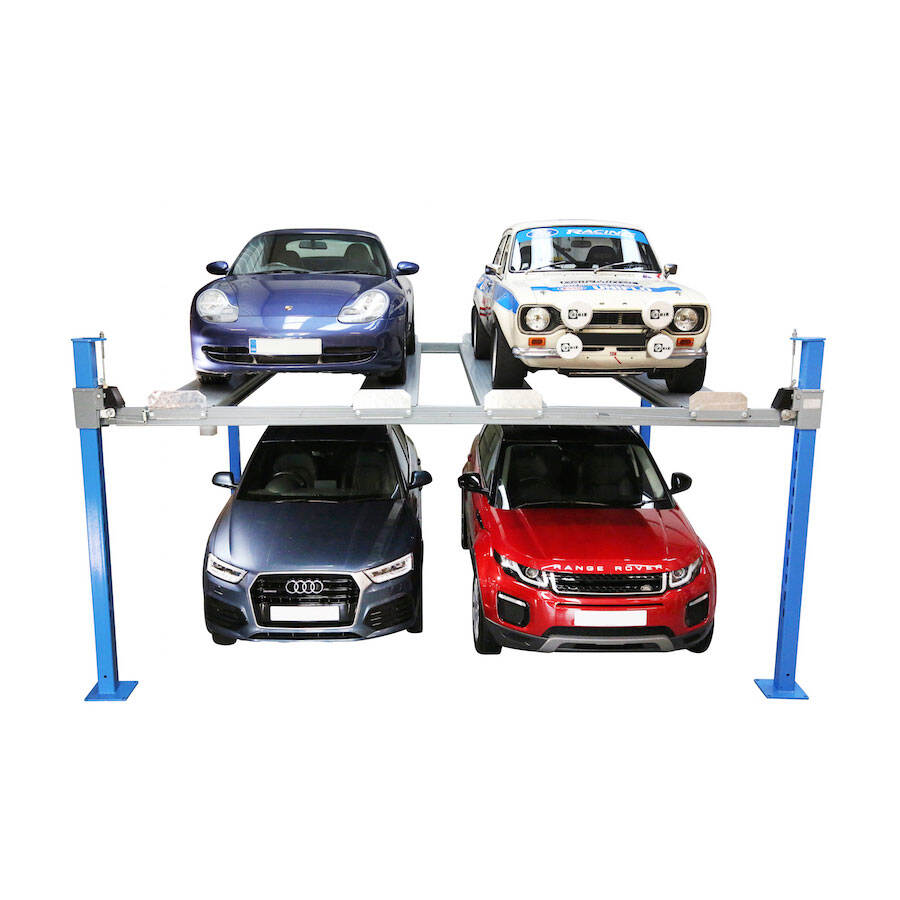

Double-Wide Design for Two Vehicles Side by Side

The double-wide configuration allows two vehicles to be raised side by side simultaneously. This design significantly reduces the number of posts required compared to individual four-post lifts, freeing up floor space. For double garages, the lift can be positioned with posts against the wall, maximizing usable space. For car storage businesses, fewer posts mean better visibility and easier access to stored vehicles.

Freestanding Portable Design

The freestanding design requires no floor bolting or structural modifications, making installation quick and straightforward. The lift can be positioned anywhere with a suitable floor, and the portable construction allows relocation as facility needs change. The optional wheel caster kit further enhances mobility.

Single-Point Manual Lock Release

The single-point manual lock release allows a single operator to manage the descent of both platforms from one convenient point. This centralized release mechanism reduces operator effort and minimizes the risk of errors during lowering. The manual system provides tactile feedback, giving the operator full control and confidence.

Skid-Proof Diamond Platforms

The diamond-pattern platform surface provides excellent traction, keeping vehicles securely positioned during parking operations. This surface design reduces the risk of vehicle movement even in environments where oil or moisture may be present. The durable platform construction maintains its grip and appearance over long-term use.

Multi-Level Locking Positions

Multi-level locking positions allow users to choose the ideal height for each specific application. Low positions work well for vehicle storage, while higher positions provide better access for light maintenance. The mechanical locks engage automatically as the lift rises, providing secure support at each level.

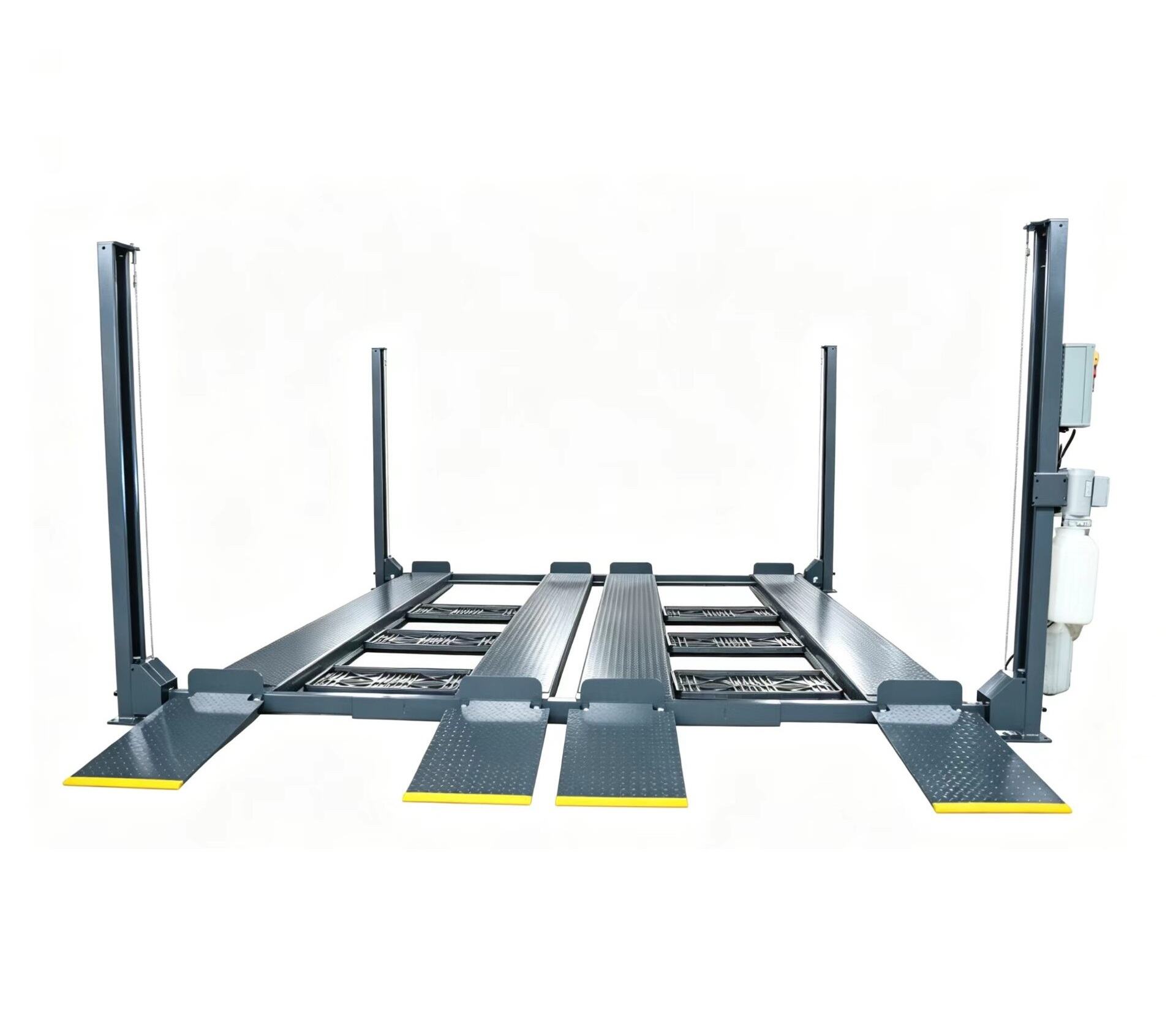

Removable Long Approach Ramps

The removable long approach ramps make drive-on access easy, particularly for vehicles with low ground clearance. Sports cars and other low-profile vehicles can drive onto the platforms without scraping. The ramps can be removed when not in use, keeping the lift footprint compact and reducing tripping hazards.

Cable Failure Protection and Drip Trays

The cable failure protection system engages instantly if cable tension is lost, locking the platforms in place as a reliable safeguard. Drip trays are included to capture oil, coolant, and other fluids that may leak from parked vehicles, keeping the floor clean and reducing slip hazards.
