3.5 Ton Portable Mid-Rise Scissor Lift, Automatic Lock Release

The CAV P3512 is a thoughtfully engineered mobile scissor lift designed to meet the demands of workshops where space is tight and flexibility is essential. Its mid-rise scissor configuration provides a maximum lifting height of 1200mm, which is ample clearance for a wide range of under-vehicle tasks including brake service, tire replacement, exhaust work, and paint preparation. The compact footprint and 600kg weight make it portable, while optional mobile kit accessories allow technicians to move the lift between work bays with minimal effort.

One of the standout features of the P3512 is its electromagnetic automatic lock release system. Unlike conventional scissor lifts that rely on manual levers or compressed air to disengage safety locks, the CAV system uses electromagnetic activation to release and reset safety devices automatically throughout the lifting and lowering cycles. This means the operator does not have to worry about engaging or disengaging locks manually, which reduces the learning curve for new technicians and speeds up workflow in busy shops. The entire lifting and lowering operation is managed through a convenient control box, giving the operator complete command of the lift's movements from a single point.

The P3512 operates entirely on electrical power, eliminating the need for a compressed air supply. This is a significant advantage for workshops that do not have an air system installed or that want to place the lift in locations where air lines are not available. The 2.2kW motor drives a hydraulic system with dual cylinders, delivering smooth and powerful lifting performance. The lift reaches its full 1200mm height in just 30 to 35 seconds, a fast cycle time that keeps service intervals moving efficiently.

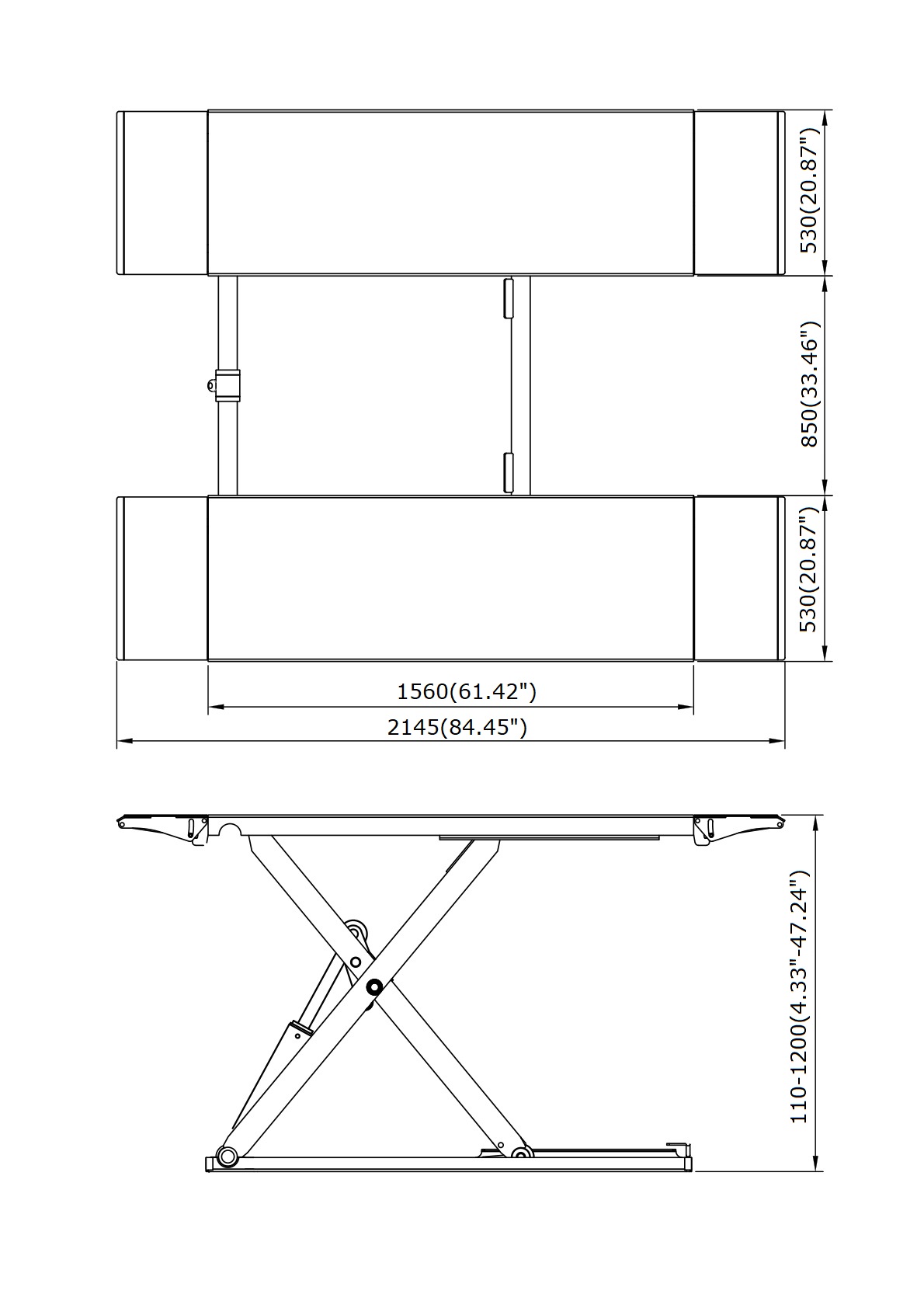

Flexibility is built into the platform design. The main platforms measure 1560mm in length and can be extended to 2145mm by locking the extendable drive-on ramps into position. This adjustment capability allows the lift to accommodate vehicles with varying wheelbases, from compact city cars to larger family sedans and SUVs. The 530mm platform width provides stable support for a wide range of tire sizes. The low 110mm minimum height is a critical feature for workshops servicing sports cars and lowered vehicles, which often struggle to clear the approach height of standard lifts. With the P3512, these vehicles drive on easily without the need for additional ramps or wooden blocks.

Safety features on the P3512 are comprehensive and well-considered. The emergency lowering device allows the lift to descend safely in the event of a power failure or hydraulic issue, a crucial backup for any professional workshop. Overload protection is also integrated into the system, ensuring the lift will not attempt to raise a vehicle that exceeds its rated capacity. The electromagnetic lock system's automatic reset function ensures the lift is always in a safe state between operations, reducing the chance of operator error.

Product highlights

Electromagnetic Automatic Lock Release System

The electromagnetic lock release on the CAV P3512 represents a step forward in scissor lift automation. Rather than requiring the operator to pull a mechanical lever or connect an air supply to disengage the safety locks, this system uses electromagnetic activation to handle the process automatically. When the lift reaches a locking position, the safety devices engage. When the operator initiates a lowering sequence, the electromagnetic system releases the locks smoothly and resets them once the lift is fully down. This automation reduces the physical effort required from technicians, cuts down on training time, and minimizes the risk of operational errors. The system's reliability comes from its simple, robust design with fewer moving parts than mechanical alternatives.

No Compressed Air Required

Many scissor lifts on the market require an external compressed air supply to operate their locking mechanisms, which can be a significant limitation for workshops without adequate air infrastructure. The CAV P3512 eliminates this dependency entirely. The entire operation, from lifting to lowering, runs on electric power alone. This makes the P3512 exceptionally easy to install and relocate. A workshop can place the lift in any bay with a suitable electrical outlet, without worrying about running air lines or investing in a larger compressor. For mobile technicians or workshops with temporary setups, this feature is particularly valuable.

Extendable Platforms with Locking Ramps

The P3512's platforms are designed with real-world flexibility in mind. The base platform length of 1560mm is suitable for most passenger cars, but the addition of locking extendable ramps allows the platforms to reach 2145mm. This extension capability ensures that vehicles with longer wheelbases are fully supported, improving stability and safety during lifting. The ramps lock securely into place, so technicians can trust that the extended platforms will hold firm under load. This design eliminates the need for separate ramp accessories or adapters, keeping the workshop cleaner and more organized.

Low Drive-Over Height for Sports Cars

The 110mm minimum height is a key differentiator for the CAV P3512. Low-profile vehicles, including sports cars and modified cars with lowering kits, often have ground clearance issues when driving onto standard lifts. The P3512's low approach height makes drive-on effortless, eliminating the need for technicians to use wooden blocks or portable ramps. This not only saves time but also reduces the risk of damage to vehicle body kits and underbody components. For workshops that service a mix of standard and performance vehicles, this feature expands the range of cars they can accept.

Emergency Lowering and Overload Protection

CAV has built multiple safety backups into the P3512. The emergency lowering device is a manual override that allows the lift to descend safely in case of power failure or hydraulic malfunction. This ensures that a vehicle will not remain stuck at height, a critical consideration for workshop workflow and customer satisfaction. The overload protection system monitors the load on the lift and halts operation if the rated capacity is exceeded. Together, these features protect both the equipment and the vehicles being serviced.

Dual Hydraulic Cylinders for Smooth Lifting

The hydraulic system on the P3512 uses dual cylinders to deliver lifting power. This configuration provides smoother, more balanced lifting compared to single-cylinder designs, reducing the tendency for the platform to twist or bind during ascent. The dual-cylinder arrangement also offers a degree of redundancy; if one cylinder experiences a minor issue, the other can still support the load during controlled descent. The system is powered by a 2.2kW motor that drives the hydraulic pump efficiently, delivering the full 1200mm lift height in 30 to 35 seconds.
