5 Ton (11,000 LBS) Capacity Four-Post Lift Alignment Lift

The CAV FP5050 Four-Post Alignment Lift represents CAV's commitment to serving workshops that need extra capacity without sacrificing precision or safety. With a lifting capacity of 5000kg (11,000 lbs), this lift handles the full spectrum of vehicles that roll through a modern repair facility, from compact cars and SUVs to full-size vans and minibuses. The 5000mm runway length sets the FP5050 apart, providing ample support for longer vehicles that would overhang shorter platforms. This extra length is particularly valuable for workshops servicing luxury sedans, commercial vans, and modified vehicles with extended wheelbases.

The lift's integrated alignment functionality transforms it into a dedicated wheel alignment station right out of the box. The rear slip plates allow the rear wheels to move laterally as alignment adjustments are made, while the front turning plate sections let the front wheels pivot freely. This combination enables precise toe, camber, and caster measurements without the need for separate alignment equipment. The lift operates through a reliable chain and hydraulic cylinder system, powered by a 2.2kW aluminum motor that delivers smooth lifting to a maximum height of 1800mm. The aluminum construction offers better heat dissipation and corrosion resistance compared to traditional steel motors, contributing to longer service life. An optional motor cover is available for shops that prefer additional protection.

What truly enhances the user experience is the air-operated unlocking system, which replaces the manual release mechanisms found on lower-spec lifts. This system is controlled through a 24V safety control box, a thoughtful design choice that keeps the electrical components at a low voltage for enhanced operator safety. The air release provides consistent, smooth engagement every time, reducing operator fatigue and speeding up the lowering process. A jacking beam is included as standard equipment, allowing technicians to lift individual wheels off the runway for brake work, tire replacement, or suspension repairs. The central jack has a lifting range from 70mm to 450mm, offering plenty of travel for most wheel and tire service tasks.

Safety engineering on the CAV FP5050 is comprehensive and multi-layered. The vehicle rollback protection consists of sturdy physical stops at the runway ends, keeping vehicles securely positioned throughout the lifting cycle. The automatic steel cable failure protection system activates instantly if cable tension is compromised, mechanically locking the platform to stop any sudden movement. Hydraulic failure safety devices serve as an additional safeguard, ensuring that the lift holds its position even if hydraulic pressure is lost. The foot protection feature shields the operator's feet from potential pinch points during the final stages of lowering, a thoughtful ergonomic addition that shows CAV's attention to real-world workshop safety.

Product highlights

Air-Operated Unlocking with 24V Safety Control

The air-operated unlocking system on the CAV FP5050 represents a significant upgrade over manual release mechanisms. Rather than requiring the operator to pull levers at multiple points, the air system engages the release smoothly with the push of a button. The system is managed through a 24V safety control box, which keeps the electrical side of the operation at a low and safe voltage. This is a particularly important feature in busy workshops where equipment is used constantly and operators appreciate both convenience and safety. The air release also provides consistent engagement, reducing the variability that can occur with manual systems and making the lowering process more predictable and controlled.

Integrated Wheel Alignment Components

The factory-installed rear slip plates and front turning plate sections are what truly make the FP5050 an alignment lift rather than just a standard four-post hoist. These components are built into the runway design, so there is no need for separate alignment adapters or portable turn plates. The front turning plates allow the steering wheels to pivot freely during alignment adjustments, while the rear slip plates enable lateral movement as the vehicle's tracking is corrected. This combination provides the precise positioning required for accurate alignment readings, making the FP5050 a valuable tool for tire and alignment specialists who need repeatable, reliable results.

Comprehensive Multi-Layer Safety Protection

CAV has equipped the FP5050 with a safety package that addresses multiple failure scenarios. The rollback protection stops at the runway ends are simple but essential, providing a physical barrier against unintended vehicle movement. The automatic steel cable failure protection is engineered to engage the instant cable tension drops, mechanically locking the platform and avoiding any free-fall situation. The hydraulic failure devices ensure the lift retains its position even if hydraulic pressure is compromised. The foot protection feature adds an extra layer of ergonomic safety, keeping the operator's feet clear of moving parts during lowering. This layered approach reflects CAV's understanding that workshop safety requires redundancy and thoughtful design.

Extended Runway for Long-Wheelbase Vehicles

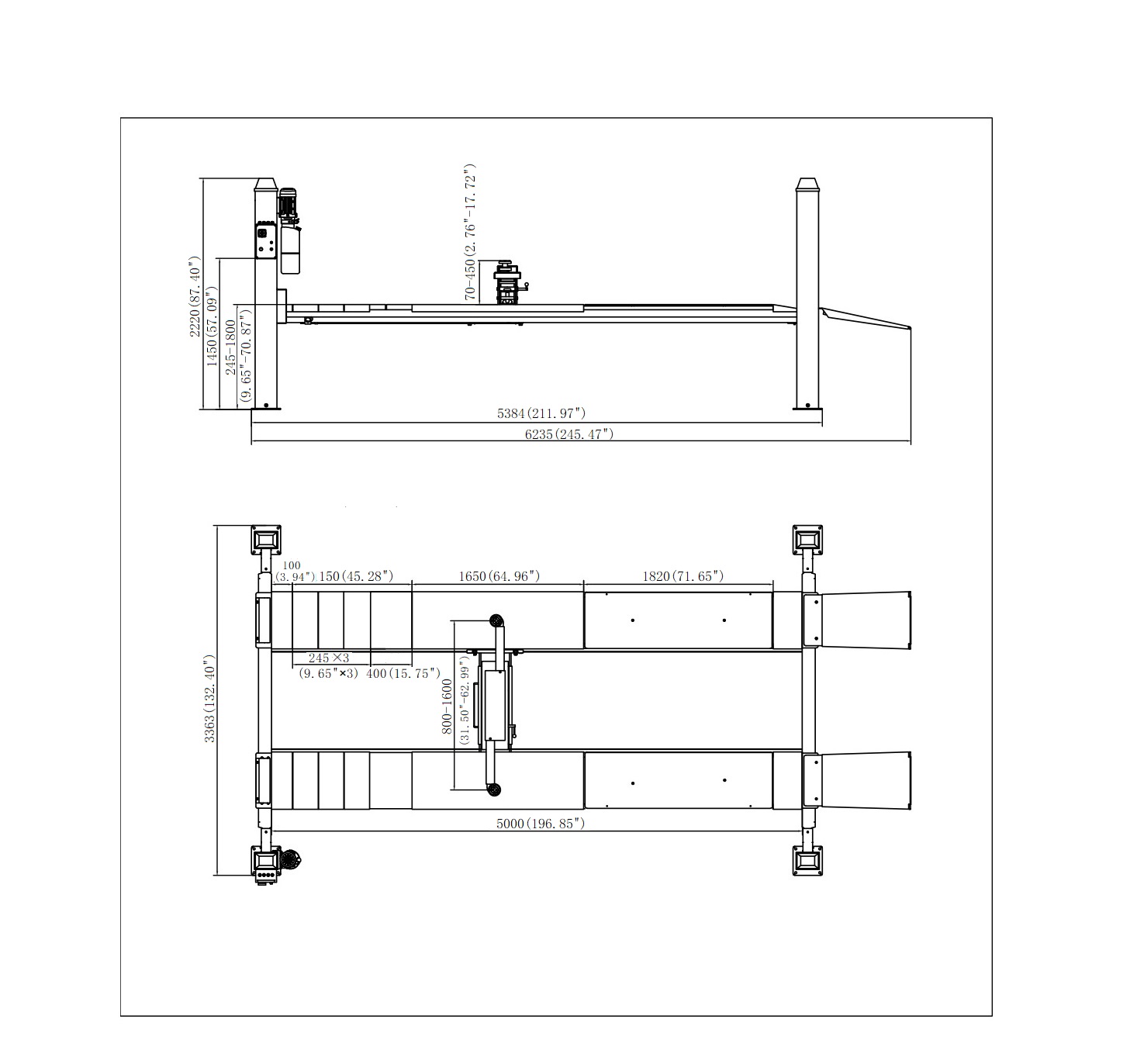

The 5000mm runway length on the FP5050 is a major selling point for workshops servicing larger vehicles. Many four-post lifts top out at 4200mm or 4600mm, which can leave long-wheelbase vans and luxury sedans hanging off the ends. The FP5050's extra length ensures that even the longest passenger vehicles are fully supported, improving both safety and stability. The 550mm runway width provides ample tire contact area, accommodating wider tires found on SUVs and commercial vehicles. For shops that work with a mixed fleet of cars and vans, this extended platform eliminates the need for multiple lifts or workarounds.
