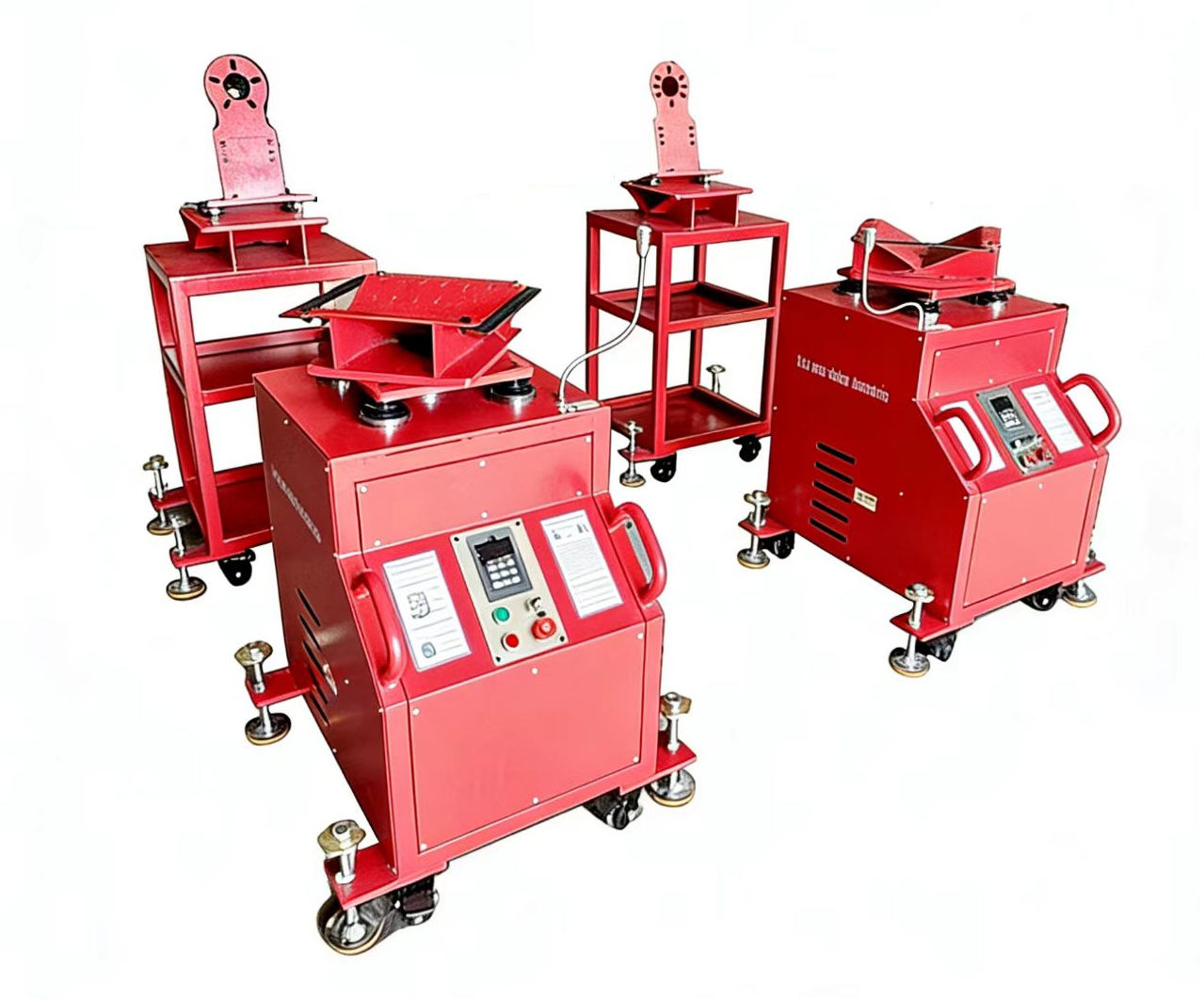

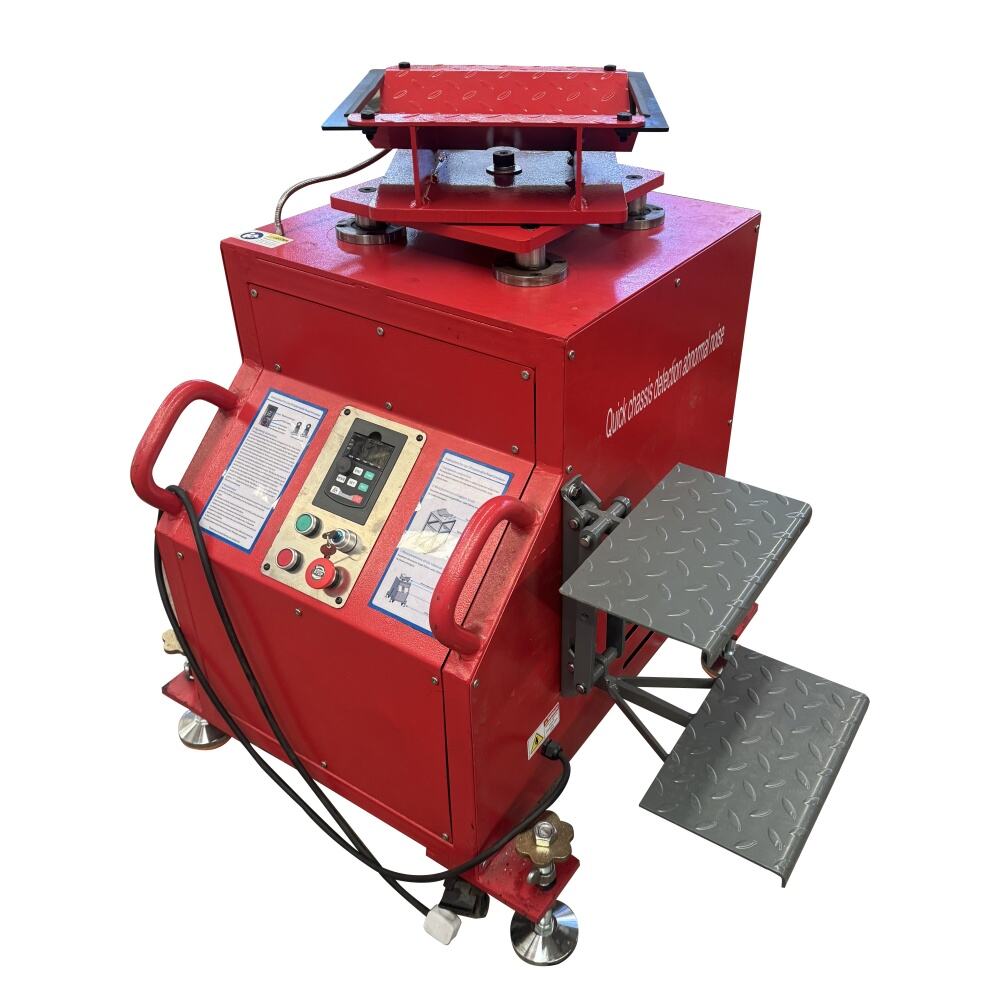

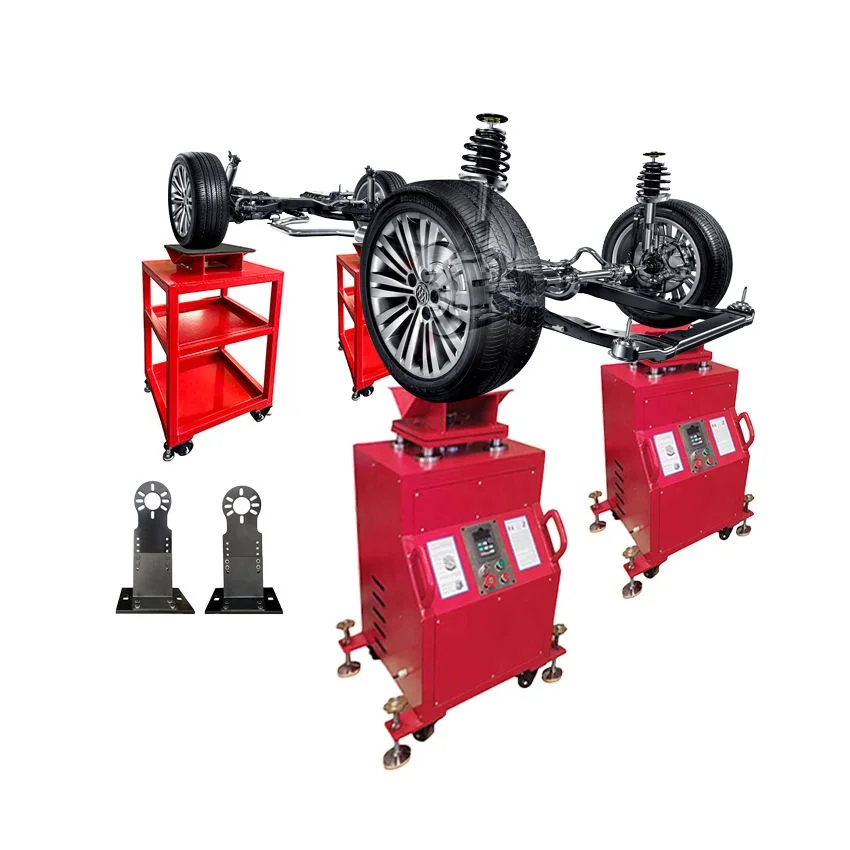

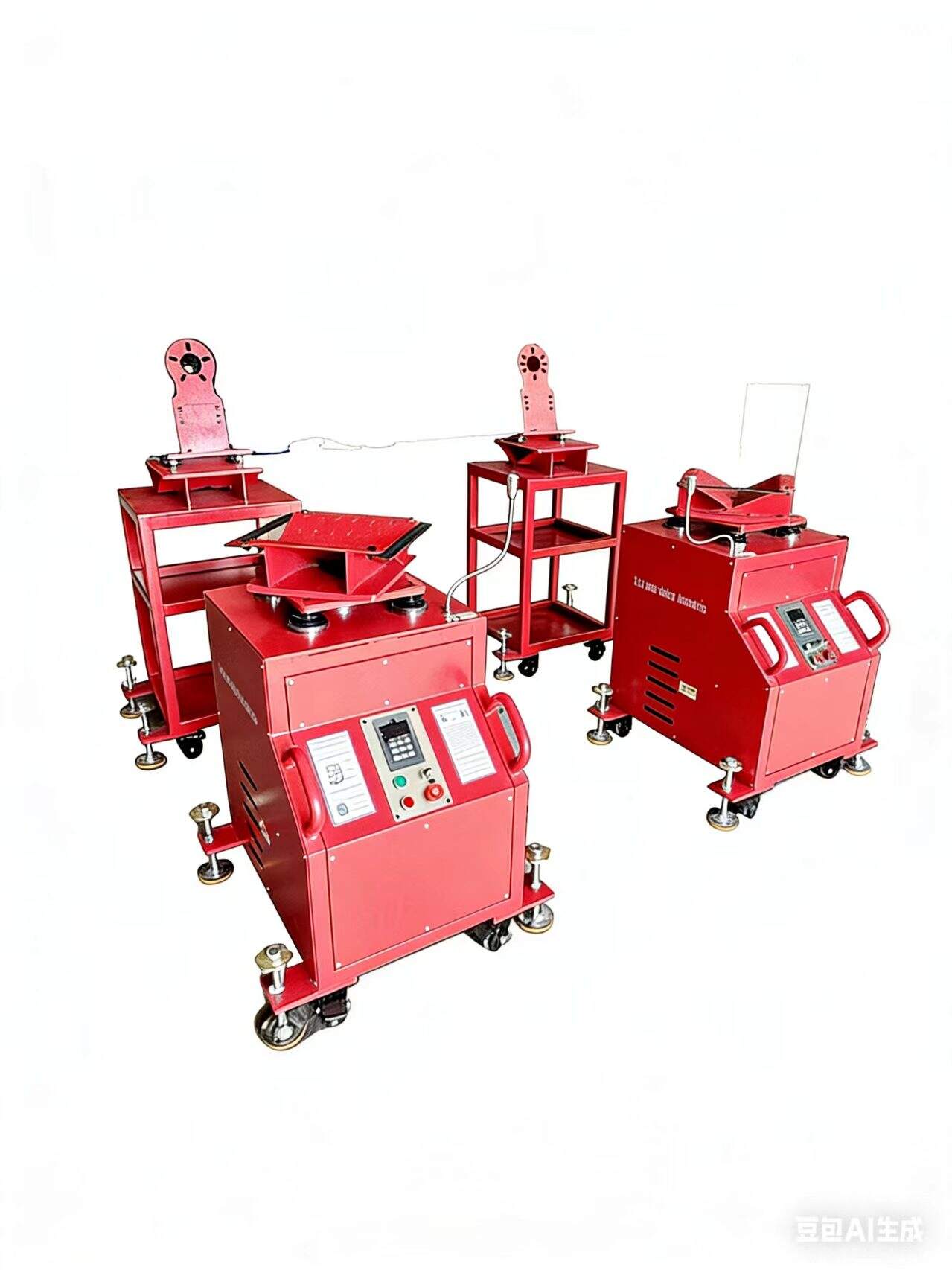

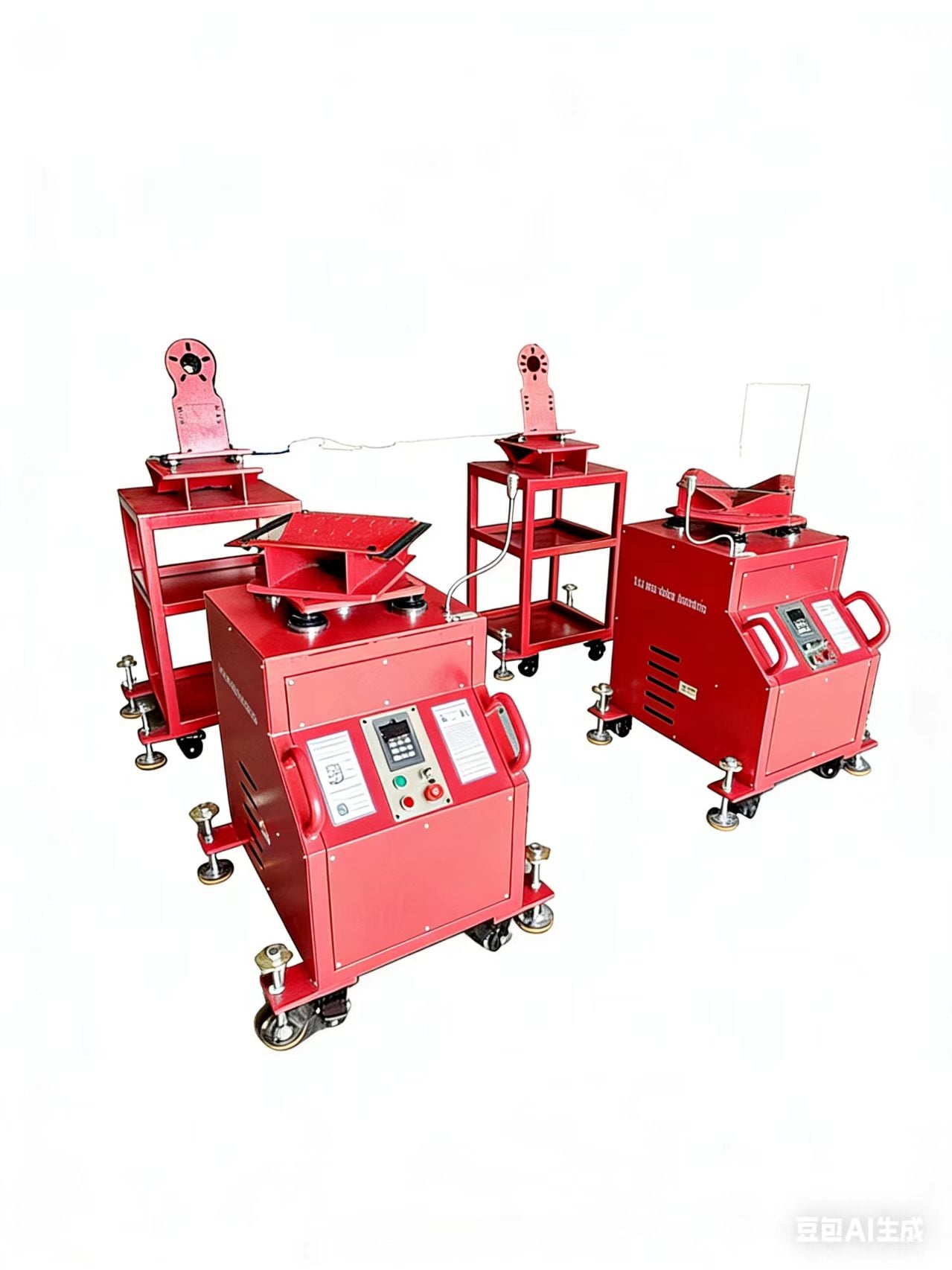

Chassis Road Simulator

The Chassis Road Simulator is a sophisticated diagnostic tool engineered to address the growing complexity of modern vehicle chassis and suspension systems. Cavalry recognizes that accurate chassis diagnosis requires equipment that can replicate real-world road conditions while providing safe, controlled testing environments. This chassis testing equipment meets those requirements through a combination of robust construction, precise control systems, and comprehensive safety features.

At the heart of the simulator is a multi-frequency high torque motor that delivers consistent power for demanding chassis testing applications. The 3kw motor drives the system with sufficient force to handle vehicles up to 4500kg, covering passenger cars, SUVs, and light trucks. The motor operates on either 220V or 380V power supplies, providing flexibility for workshops with different electrical configurations.

The microcrystalline regulator serves as the control interface for road condition simulation. This electronic control system allows technicians to adjust operating parameters to replicate different bumpy road surfaces, enabling precise chassis and suspension diagnostics. The 460 times per minute working frequency provides rapid cycling capability for comprehensive testing across varied conditions.

The rotating head design significantly improves diagnostic accessibility. Technicians can position components for convenient inspection without moving the vehicle or equipment. This feature reduces testing time and improves workflow efficiency in busy workshop environments.

Eight-point support adjustment ensures platform stability during testing operations. The 8-point leveling system allows technicians to compensate for uneven workshop floors, maintaining a stable testing platform that supports accurate diagnostic results. The stress release devices across the six equipment sets contribute to testing accuracy by managing mechanical stress during operation.

Safety is integrated throughout the design. The 24V operating panel voltage eliminates high-voltage hazards at the operator interface, while the emergency stop button provides one-click shutdown capability. The leakage protection device adds an additional layer of electrical safety, making this chassis road simulator suitable for busy workshop environments where equipment safety is paramount.

Product highlights

Multi-Frequency High Torque Motor
The chassis road simulator features a multi-frequency high torque motor that delivers consistent power for demanding chassis testing applications. The 3kw motor provides sufficient force for vehicles up to 4500kg, covering passenger vehicles, SUVs, and light trucks. The motor operates on either 220V or 380V power supplies for workshop flexibility.

4500kg Lifting Capacity
With 4500kg lifting capacity, this chassis testing equipment handles a broad range of vehicle types from passenger cars to light trucks and SUVs. The lifting height reaches 1100mm, providing adequate clearance for comprehensive under-vehicle inspection and diagnostic access.

Microcrystalline Regulator Control
The microcrystalline regulator enables precise simulation of different bumpy road surfaces for accurate chassis and suspension diagnostics. This electronic control system provides fine adjustment of operating parameters, allowing technicians to replicate specific road conditions for targeted testing.

Rotating Head Design for Convenient Detection
The rotating head design significantly improves diagnostic accessibility by allowing technicians to position components for convenient inspection. This feature reduces testing time and improves workflow efficiency without requiring vehicle repositioning.

8-Point Support Adjustment for Stability
Eight-point support adjustment ensures platform stability during testing operations. The leveling system allows technicians to compensate for uneven workshop floors, maintaining a stable testing platform that supports accurate diagnostic results across diverse workshop environments.

24V Safe Voltage Operating Panel
The operating panel features a safe voltage of 24V, eliminating high-voltage hazards at the operator interface. This design protects technicians during daily operation and reduces the risk of electrical accidents in busy workshop environments.

Comprehensive Safety Features
Safety equipment includes an emergency stop button for one-click shutdown and a leakage protection device for electrical safety. These features protect both operators and equipment during testing operations, supporting workshop safety standards.

Stress Release Devices for Testing Accuracy
The equipment configuration includes stress release devices across all six equipment sets. These devices manage mechanical stress during operation, supporting more comprehensive and accurate detection results.

Belt Drive for Quiet Operation
Precision drive connection with belt drive provides good noise reduction during operation. The belt drive design supports a quiet testing environment, improving working conditions for technicians and reducing workshop noise levels.

Wide Operating Temperature Range
The chassis road simulator operates reliably across temperatures from -30°C to +50°C, suitable for workshops in diverse climate conditions. This wide temperature range supports consistent performance across different geographic regions and seasonal variations.

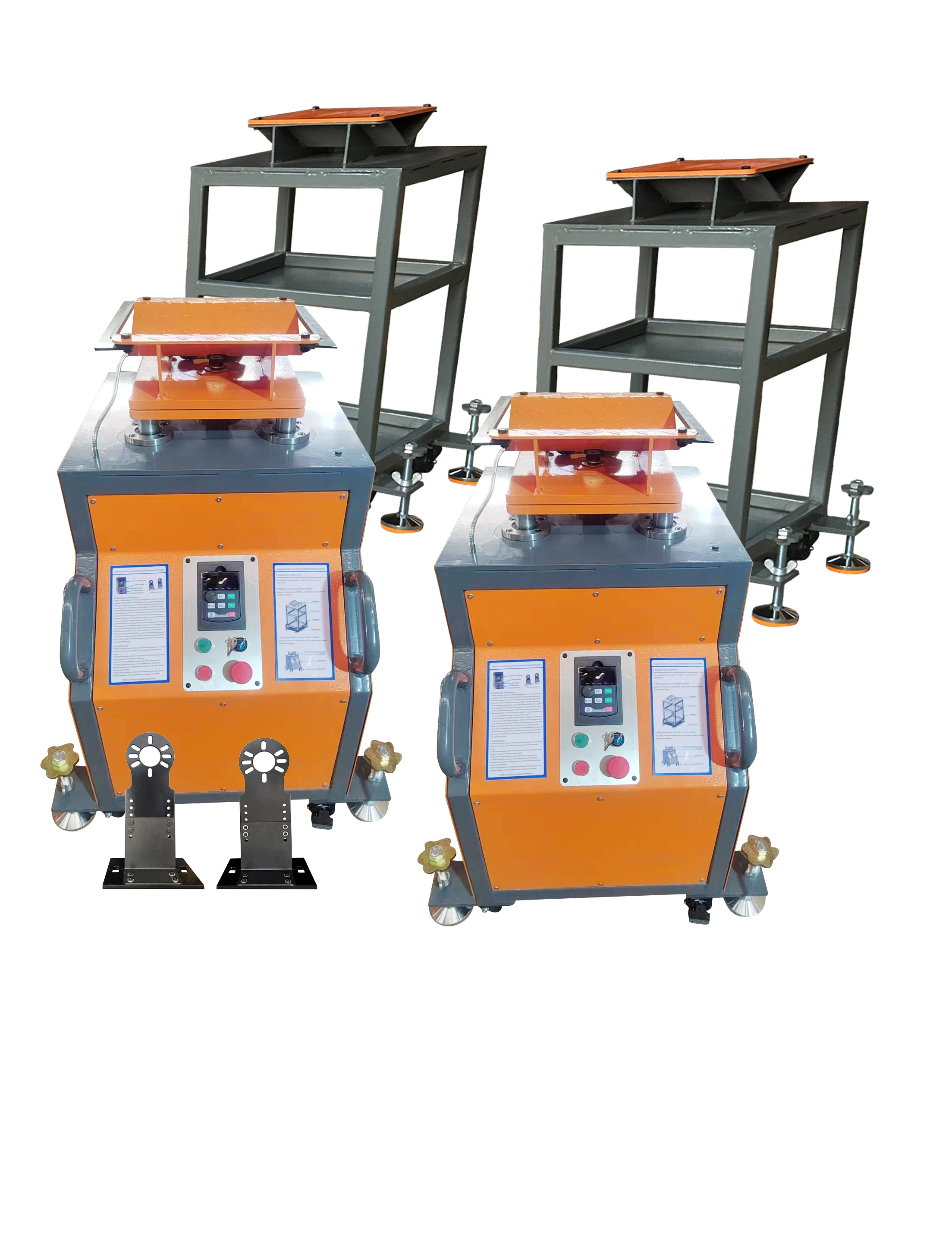

Customizable Color Options
The chassis road simulator is available with customizable color options, allowing workshops to match the equipment to their facility branding or color scheme preferences.
