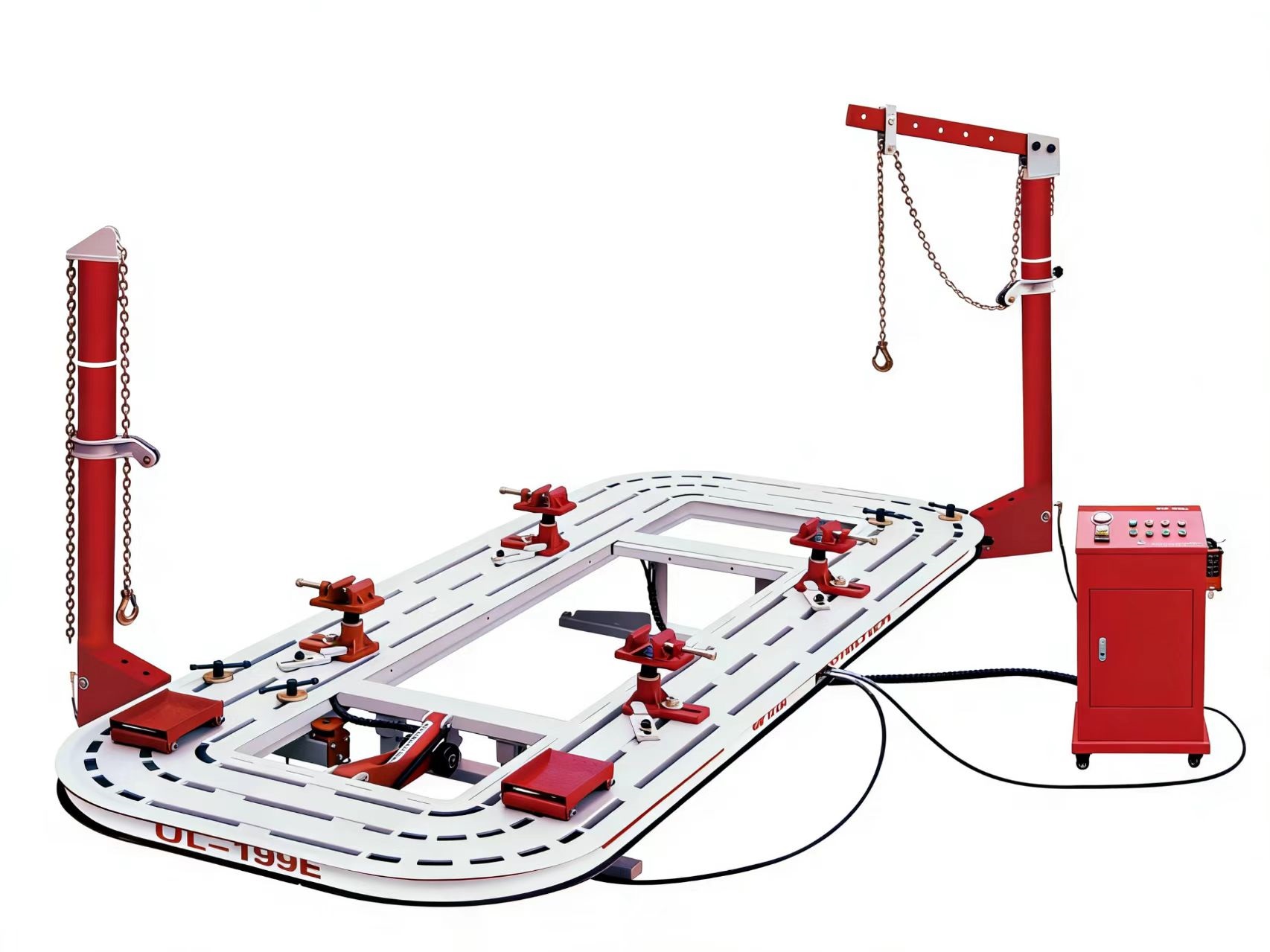

Cavalry UL-199E Electric Hydraulic Auto Body Frame Machine

The Cavalry UL-199E Electric Hydraulic Auto Body Frame Machine represents a significant advancement in vehicle structural repair technology, combining full automatic computerized control with robust rectangular tube steel construction. Cavalry understands that modern collision repair facilities need equipment that delivers consistent, precise results while maximizing technician productivity. This electric hydraulic frame machine addresses these requirements through an integrated approach that combines advanced automation, premium materials, and practical design features.

The rectangular tube steel platform construction serves as the foundation of the UL-199E's structural integrity. Cavalry selected rectangular tube steel specifically for its strength-to-weight ratio and dimensional stability under load. The improved welding techniques enhance stress intensity throughout the platform structure, reducing flex during pulling operations. This construction approach ensures the platform maintains its geometry even under the 95kn pulling forces generated during frame straightening operations, supporting precise repair work across repeated use cycles.

The full automatic computerized control system distinguishes the UL-199E from conventional frame straightening equipment. This automated architecture manages platform positioning, pulling operations, and height adjustments through an integrated control interface. The computerized system reduces operator workload and supports consistent repair quality across different technicians and shifts. The automation features streamline the repair process, allowing technicians to focus on damage assessment and repair planning rather than equipment management.

The no-blind working range provides unrestricted access across the entire platform surface. Traditional frame straightening equipment often has areas where clamping or pulling access is restricted, forcing technicians to work around equipment limitations. The UL-199E's design removes these restrictions, providing consistent access that aligns with natural technician work habits and supports efficient workflow.

The machine is available in two frame length options: 5200mm and 5600mm, with both models sharing 2140mm width and 520mm height. The 360° pulling radius enables technicians to apply corrective force from any direction, essential for addressing complex collision damage. The 95kn pulling capacity handles the majority of frame straightening applications, while the 3500kg maximum loading capacity accommodates heavier vehicles including commercial vehicles and larger SUVs. Multi-voltage support covers 220V and 380V configurations.

Product highlights

Full Automatic Computerized Control System
The UL-199E features a full automatic computerized control system that manages all major machine functions through an integrated interface. This automated architecture reduces operator workload and supports consistent repair quality across different technicians. The computerized system streamlines the repair process, allowing technicians to focus on damage assessment and repair planning rather than equipment management.

Rectangular Tube Steel Platform Construction
The platform uses rectangular tube steel construction with premium materials selected for collision repair applications. This design provides excellent strength-to-weight ratio and dimensional stability under load. The rectangular tube construction supports structural integrity during pulling operations while maintaining platform flatness across the entire working surface.

Improved Welding Techniques for Enhanced Stress Intensity
Cavalry incorporated improved welding techniques throughout the platform construction to enhance stress intensity. The welding process creates strong, consistent joints that maintain integrity under the 95kn pulling forces generated during frame straightening operations. This approach reduces the risk of platform deformation during demanding repairs, supporting consistent performance over time.

No-Blind Working Range for Unrestricted Access
The UL-199E design provides a no-blind working range that eliminates restricted access areas common on conventional equipment. Technicians can secure vehicles and position pulling towers at any point along the platform without encountering limitations. This design aligns with natural work habits, allowing operators to work efficiently without adapting to equipment constraints.

Dual Frame Length Options (5200mm/5600mm)
The UL-199E offers frame length options of 5200mm and 5600mm (models UL-U199E and UL-U199EL), accommodating different vehicle sizes and workshop configurations. The longer 5600mm option provides additional workspace for larger vehicles including commercial vans and extended-length SUVs. Both models share 2140mm width and 520mm height.

Electric Hydraulic Operation
The UL-199E features electric hydraulic operation that provides smooth, controlled force application for precise straightening results. The electric hydraulic system reduces the need for compressed air supply compared to pneumatic systems, simplifying installation requirements. The system delivers consistent performance across the full range of pulling operations.

360° Pulling Radius for Versatile Force Application
The pulling towers operate with full 360° rotation capability, enabling technicians to apply corrective force from any direction. This rotation range is essential for addressing complex collision damage affecting multiple vehicle dimensions. The flexible pulling approach supports efficient repair of both single-direction and multi-directional structural damage.

95kn Pulling Capacity with 3500kg Load Rating
The UL-199E delivers 95kn pulling capacity and supports maximum loading of 3500kg, covering passenger vehicles, SUVs, and light trucks. This capacity range makes the auto body frame machine suitable for diverse workshop environments.

Broad Vehicle Compatibility
The UL-199E accommodates nearly all types of imported cars, commercial vehicles, and SUVs. This broad compatibility makes the frame machine suitable for workshops serving diverse customer bases.

Features：

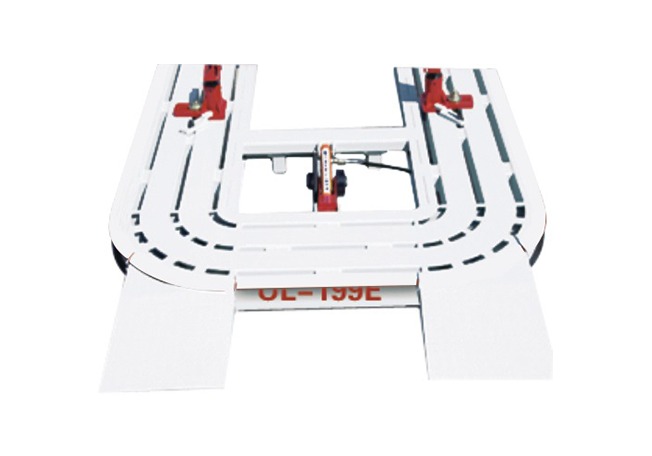

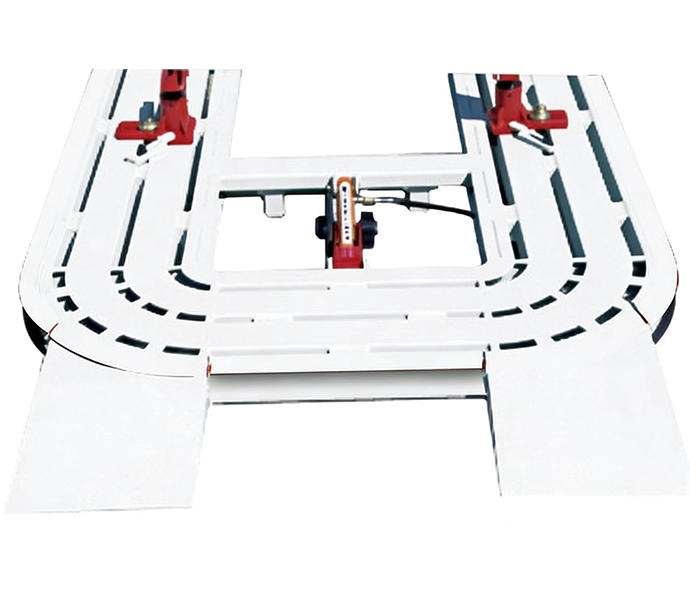

The platform is made of 6mm thickness of rectangular tube, welded by full board with multi-positioning holes surrounded, which ensures the platform with high flatness, strong anti-torsion strength, no- blind fixing ways and efficient straightening.

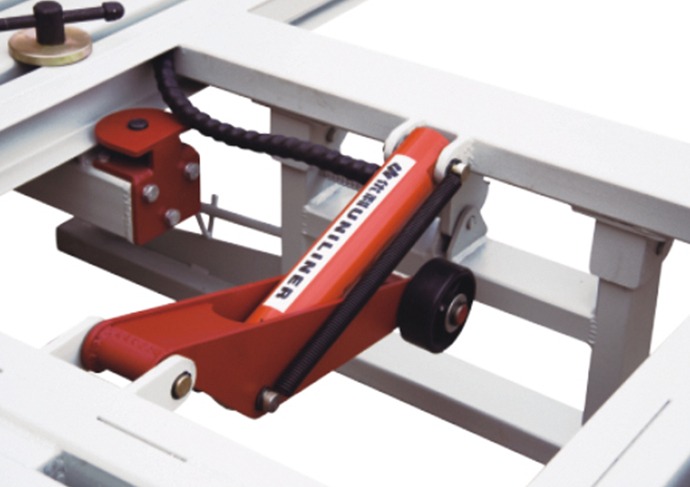

	Tilt hydraulic lifting platform makes the accidental vehicle loading and unloading more conveniently (even drive the car onto the platform directly).
The platform is made of 6mm thickness of rectangular tube, welded by full board with multi-positioning holes surrounded, which ensures the platform with high flatness, strong anti-torsion strength, no- blind fixing ways and efficient straightening.

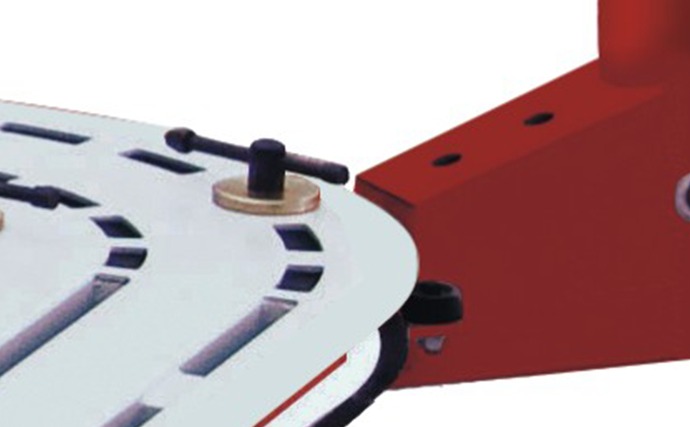

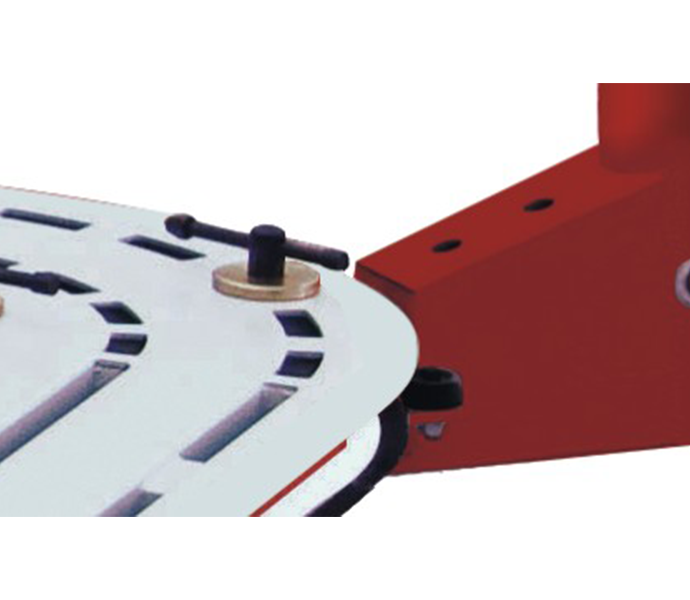

	Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, diameter of pulling tower tube is 160mm, which means moreconvenient moving and high intensity if bothtowers straighten in diagonal line. You onlyneed to move the handle to put the shaft into the hole on the bench to fix the pulling tower.

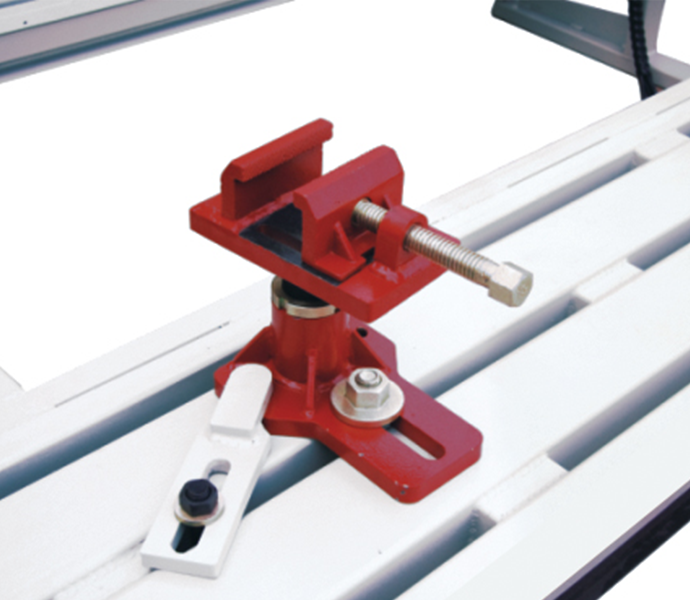

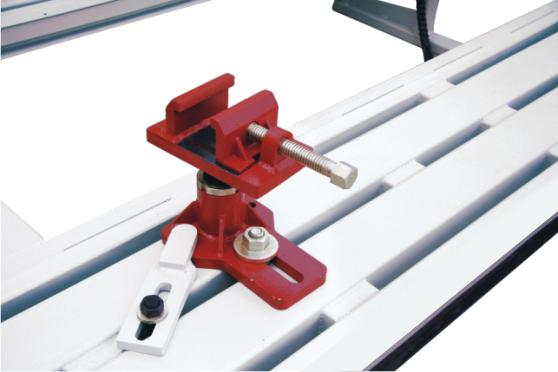

Unique design of spiral movements for main clamps is easier to make jaws upperand lower on precondition of maintainingthe flat level by adjusting the pole verticallyto clamp different height chassis of all kindsof vehicles. Quick fixed clamp jaws byscrewing the shaft clockwise, making chassis clamping more efficient.

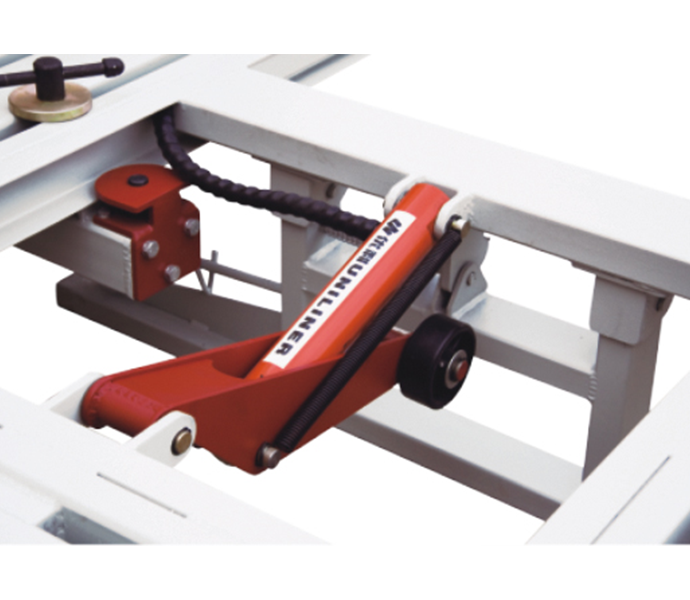

	Pneumatic jack beam (three layers) : It can be used as hydraulic floor jacks when repair different damaged chassis height. Press air to give power, the max liftingbearing is 3 ton, lifting range is 150mm-450mm. (optional)
High-precision and retractable alloy two dimension measurement with laser scale has no breaking point. (optional)

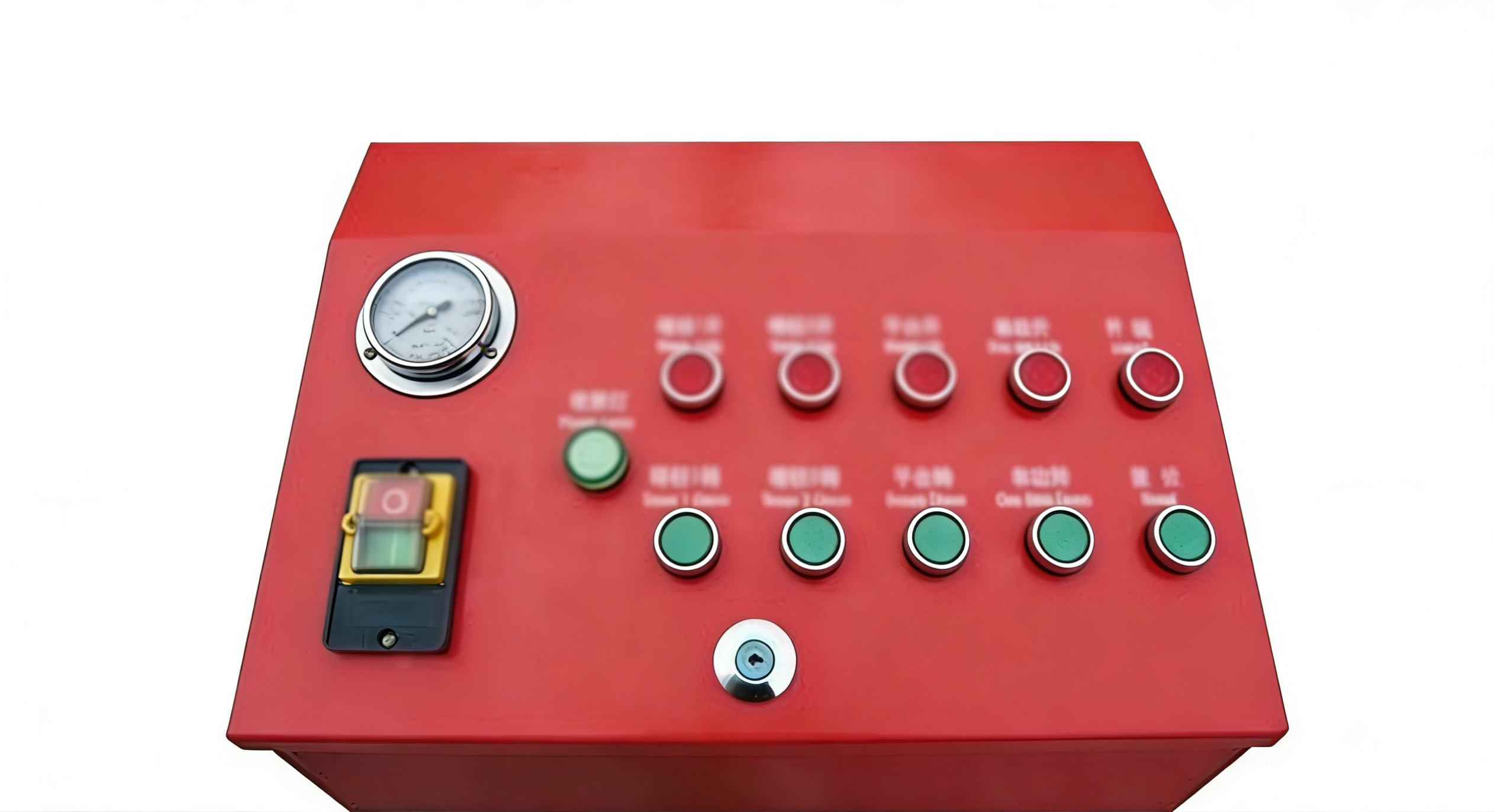

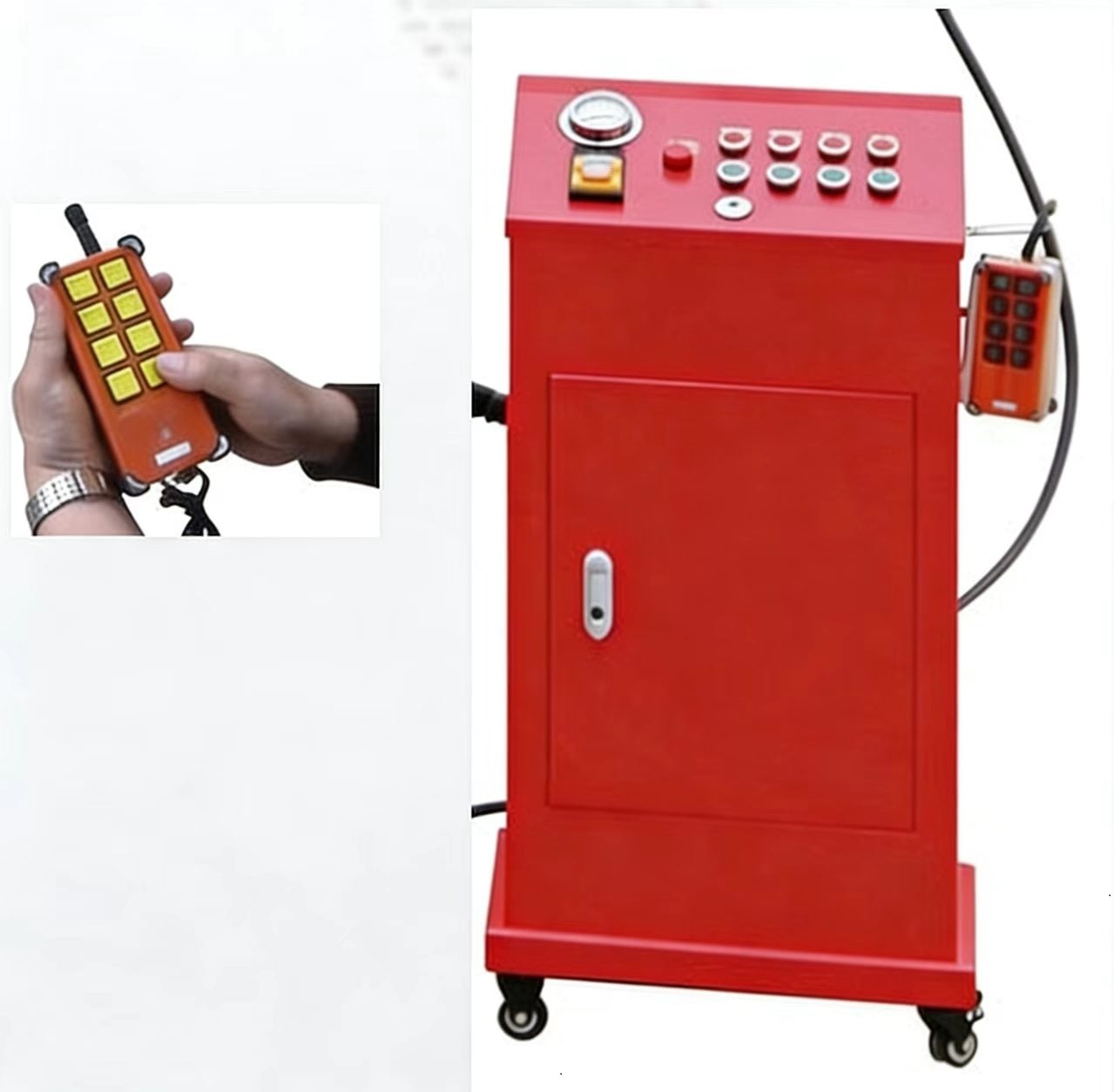

	To allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely. Working of bench and pulling towers are can be controlled by the electric cabinet or the remote control.
Remote control: Make the platform lift, please press "up" key; make the platform down, please press the "down" key. When you need the tower up and down stretching, please press "tower one" key or "tower two" key.
